5. TCM (TRANSMISSION CONTROL MODULE)

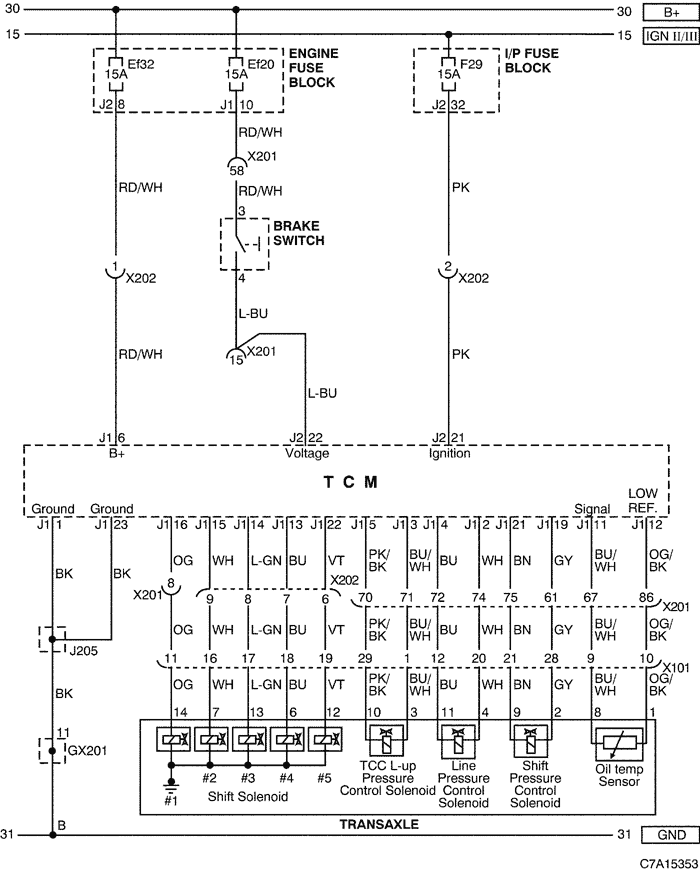

1) POWER SUPPLY, GROUND, BRAKE SWITCH & SOLENOID VALVE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X101 (36 Pin, Black)
|
Engine - Body |
Behind the Engine Fuse Block |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X202 (12 Pin, Colorless) |
I.P - Body |
Behind the Audio |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |

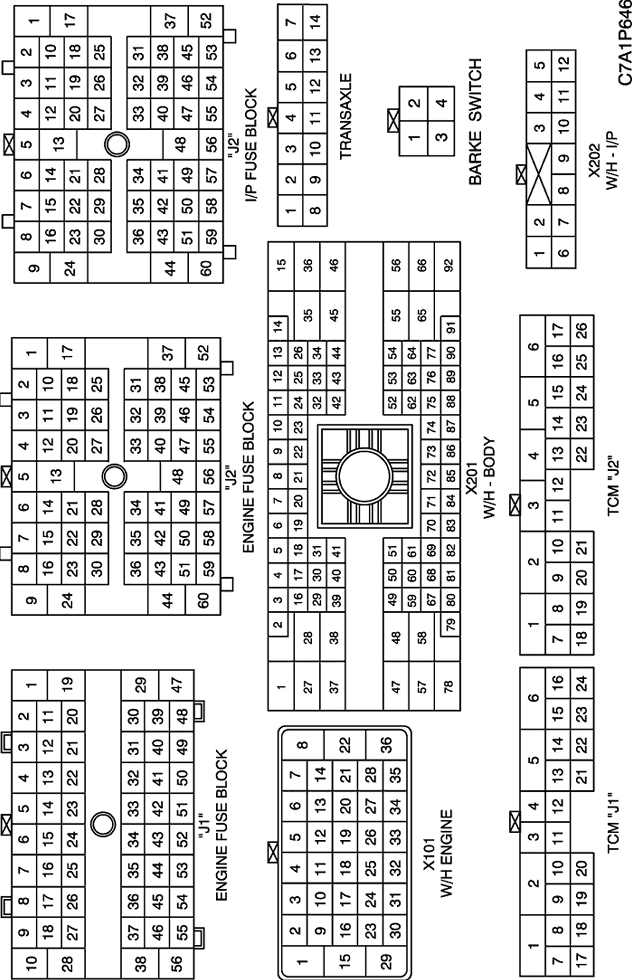

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

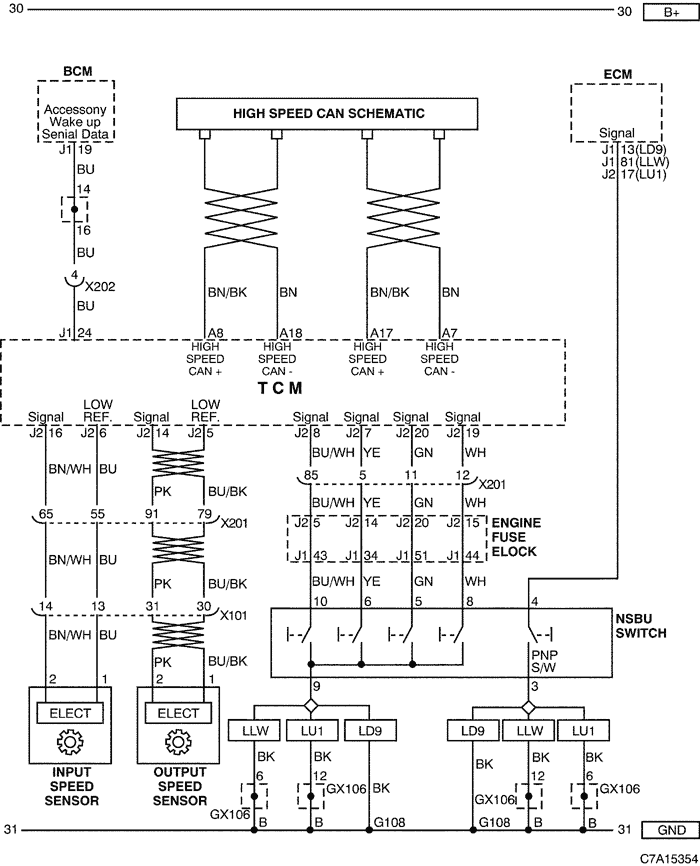

2) SENSOR (INPUT SPEED,OUTPUT SPEED), NSBU SWITCH & HIGH SPEED CAN CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X101 (36 Pin, Black)
|
Engine - Body |
Behind the Engine Fuse Block |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X202 (12 Pin, Colorless) |
I.P - Body |
Behind the Audio |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
| G108 |
Engine (FAM II) |
On the Cylinder Block |

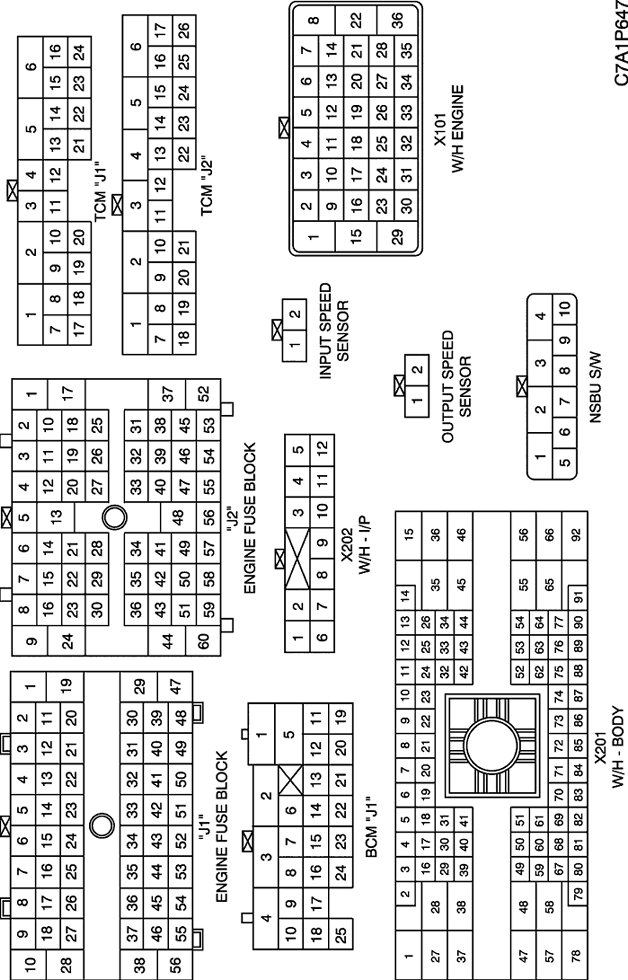

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
3) GEAR SHIFT LEVER, WINTER MODE SWITCH & CLUSTER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
