4. ECM (ENGINE CONTROL MODULE) : E77 (HFV6 3.2D)

1) BATTERY POWER SUPPLY, GROUND, GENERATOR & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


2) INJECTOR & HEATED O2 SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X106 (7 Pin, Black) Engine - Fuel Injector (HVF6) Upper the Cylinder Head

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


3) IGNITION COIL, BRAKE SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X106 (7 Pin, Black) Engine - Fuel Injector (HVF6) Upper the Cylinder Head
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
G107 Fuel Injector (HFV6) On the Cylinder Block
G110 Fuel Injector (HFV6) On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics


4) SENSOR (MAF/IAT, FUEL LEVEL), FUEL PUMP & SWITCH (CLUTCH, BACK UP, NSBU) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X304 (12 Pin, Black) Fuel Sender - Body Below the right "C" pillar
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head
GX402 (Black/Gray) Body Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


5) INTAKE MANIFOLD RUNNING CONTROL (IMRC), CAMSHIFT POSITION ACTUATOR, EVAP CANISTER PURGE SOLENOID & CMP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X106 (7 Pin, Black) Engine - Fuel Injector (HVF6) Upper the Cylinder Head
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head
G109 Fuel Injector (HFV6) On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


6) ETC MODULE, SENSOR (ECT, KNOCK, ACP & ACCELERATOR PEDAL) & BCM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics

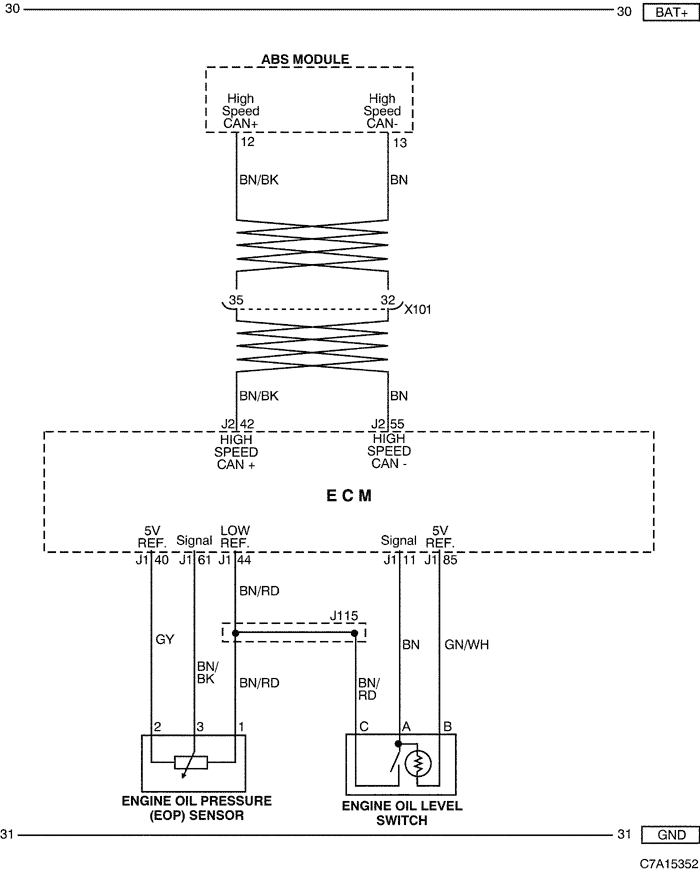

7) ENGINE OIL PRESSURE SENSOR & ENGINE OIL LEVEL SWITCH

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


8) DLC (DATA LINK CONNECTOR) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X203 (6 Pin, Colorless) I.P - Air Bag Below the floor console
X204 (16 Pin, Black) I.P - FATC Behind the FATC
GX201 (Black/Gray) I/P Behind Steering Column - Lower

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
