3. ECM (ENGINE CONTROL MODULE) : EDC16C39 (2.0 DIESEL)

1) BATTERY POWER SUPPLY, GROUND, GLOW PLUG CONTROL UNIT, FUEL HEATER, GENERATOR & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X103 (8 Pin, Black) Engine - Fuel Heater (DSL) Next to the ECM
X104 (4 Pin, Black) Engine - Glow Plug (DSL) Left side upper Cylinder
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head
G112 (Black/Gray) Engine (DSL) On the Cylinder Block

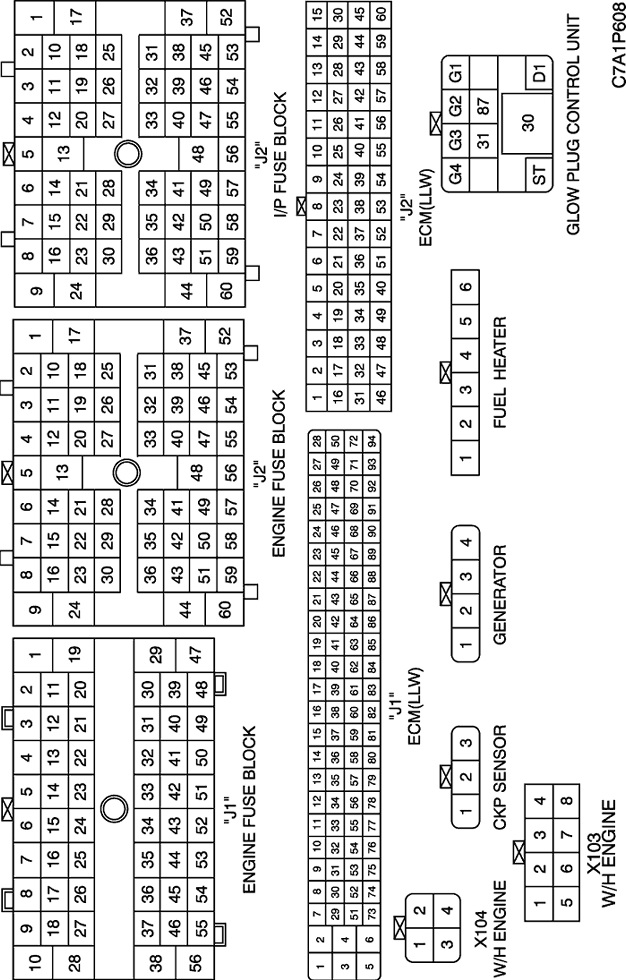

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

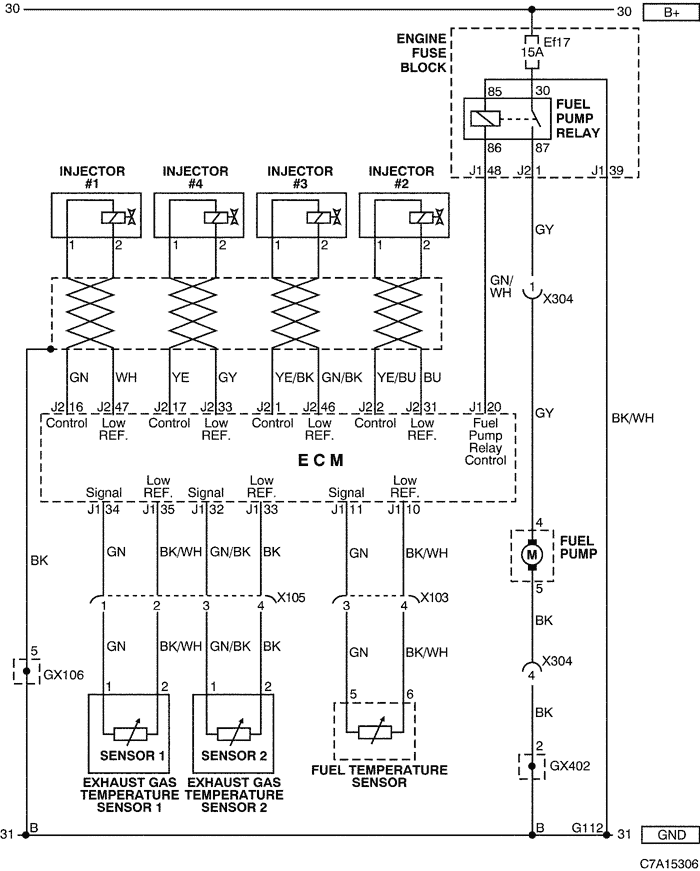

2) INJECTOR, FUEL PUMP & SENSOR (EXHAUST GAS TEMPERATURE, FUEL TEMPERATURE) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X103 (8 Pin, Black) Engine - Fuel Heater (DSL) Next to the ECM
X105 (4 Pin, Black) Engine - Exhaust Gas Temp. Sensor (DSL) Behind the Cylinder Head
X304 (12 Pin, Black) Fuel Sender - Body Below the right "C" pillar
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head
GX402 (Black/Gray) Body Right the luggage compartment

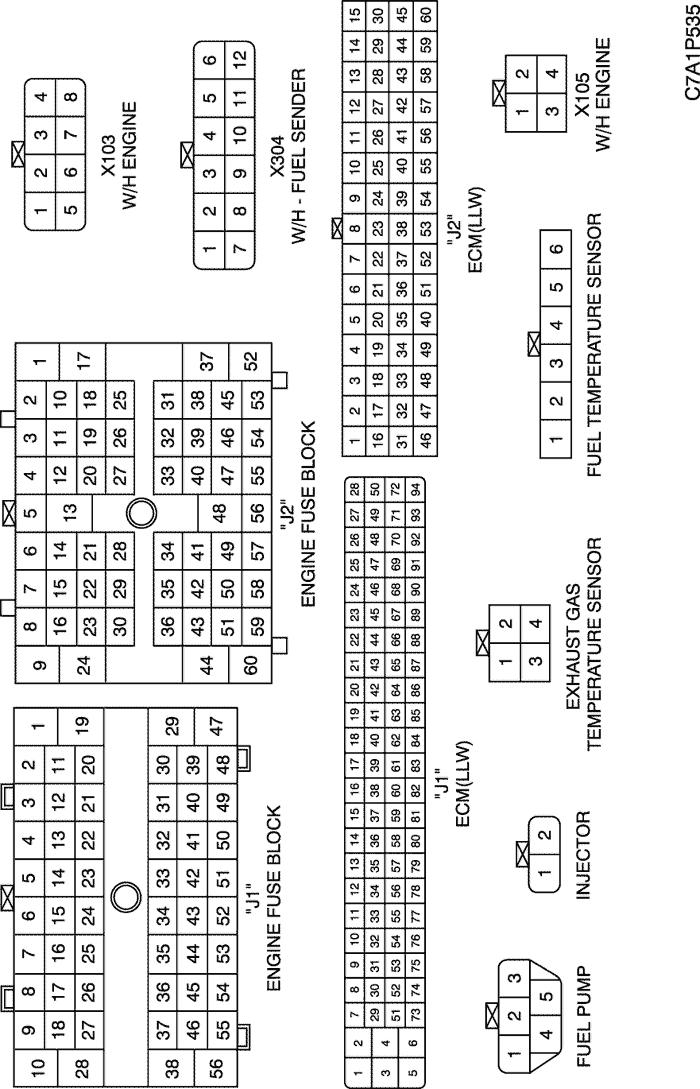

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

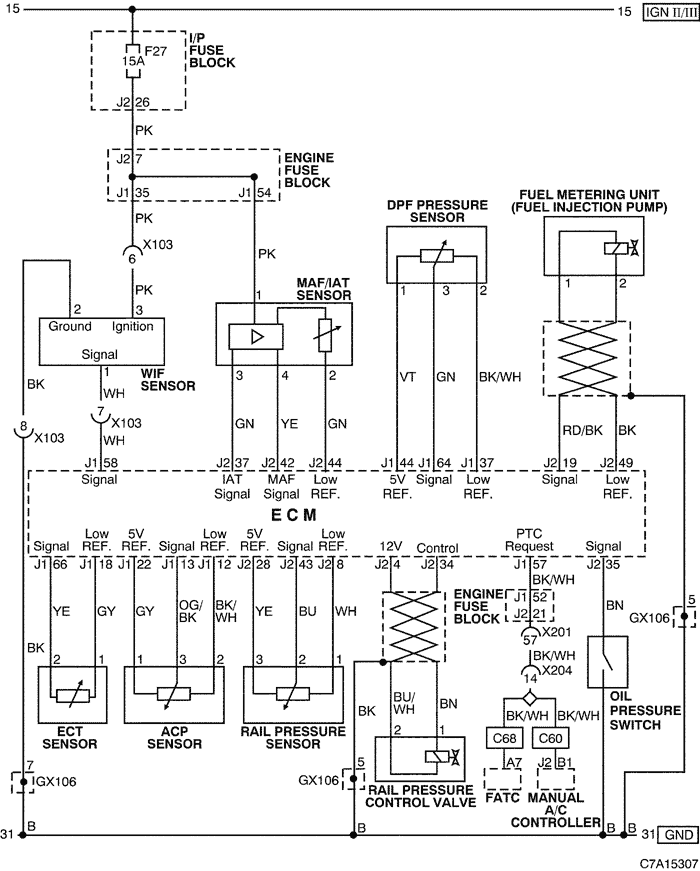

3) SENSOR (WIF, MAF/IAT, DPF PRESSURE, RAIL PRESSURE, ECT,ACP), SWITCH (OIL PRESSURE), RAIL PRESSURE CONTROL VALVE & FUEL METERING UNIT CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X103 (8 Pin, Black) Engine - Fuel Heater (DSL) Next to the ECM
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X204 (16 Pin, Black) I.P - FATC Behind the FATC
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head

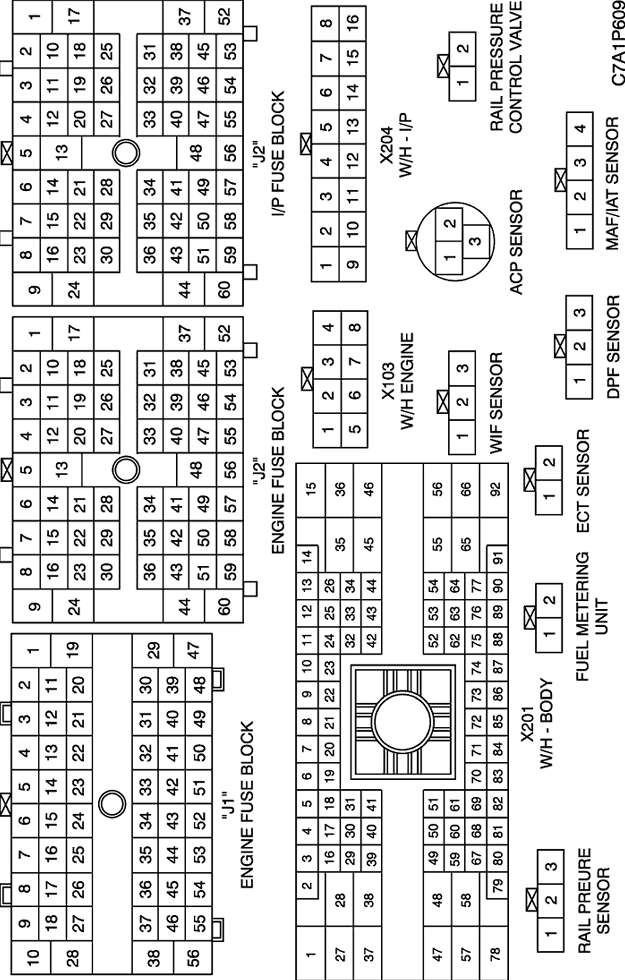

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

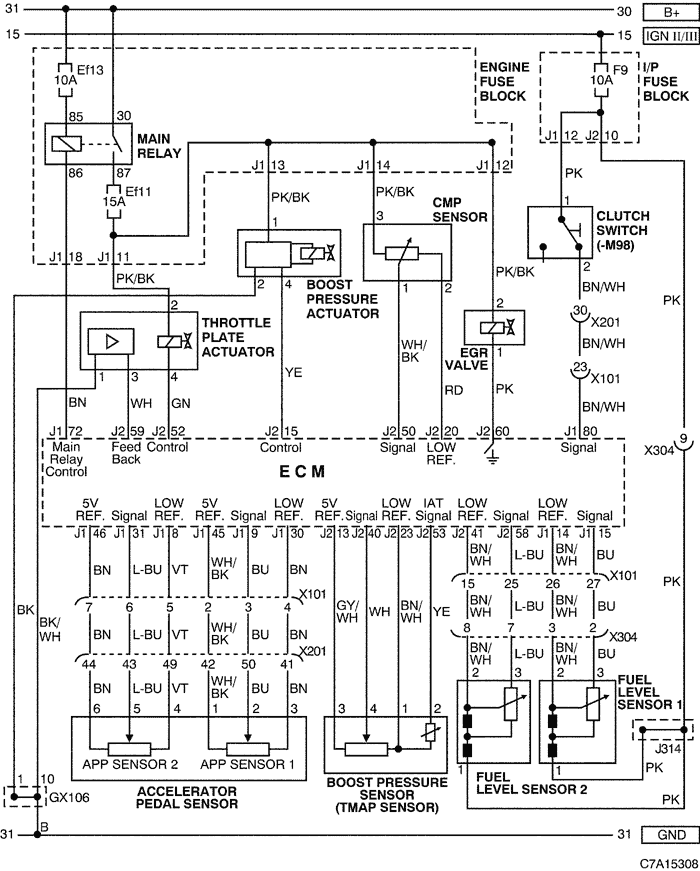

4) SENSOR (ACCELERATOR PEDAL, BOOST PRESSURE, FUEL LEVEL,CMP), ACTUATOR (THROTTLE PLATE, BOOST PRESSURE), CLUTCH SWITCH & EGR VALVE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X304 (12 Pin, Black) Fuel Sender - Body Below the right "C" pillar
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head

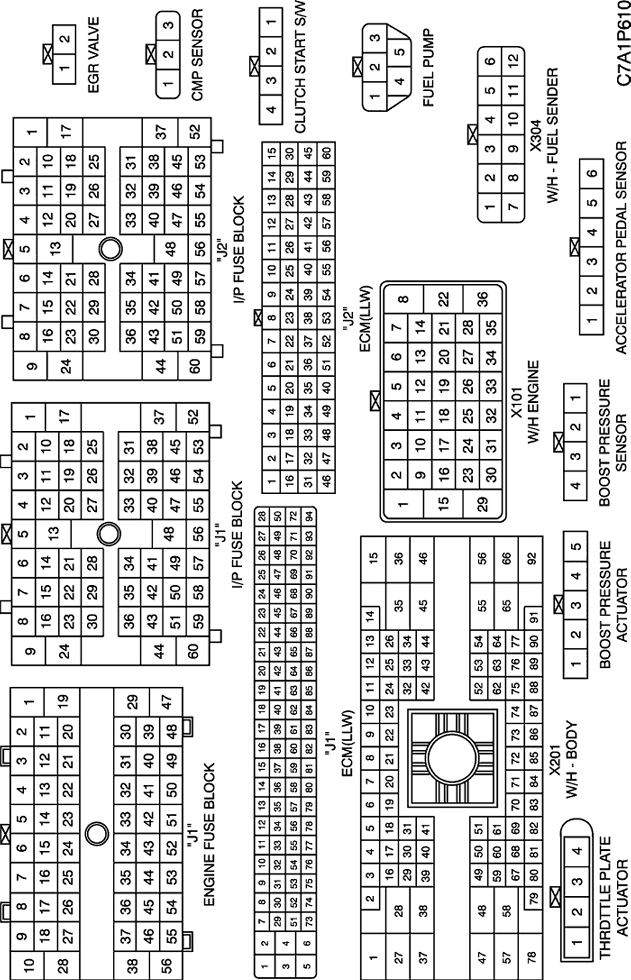

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

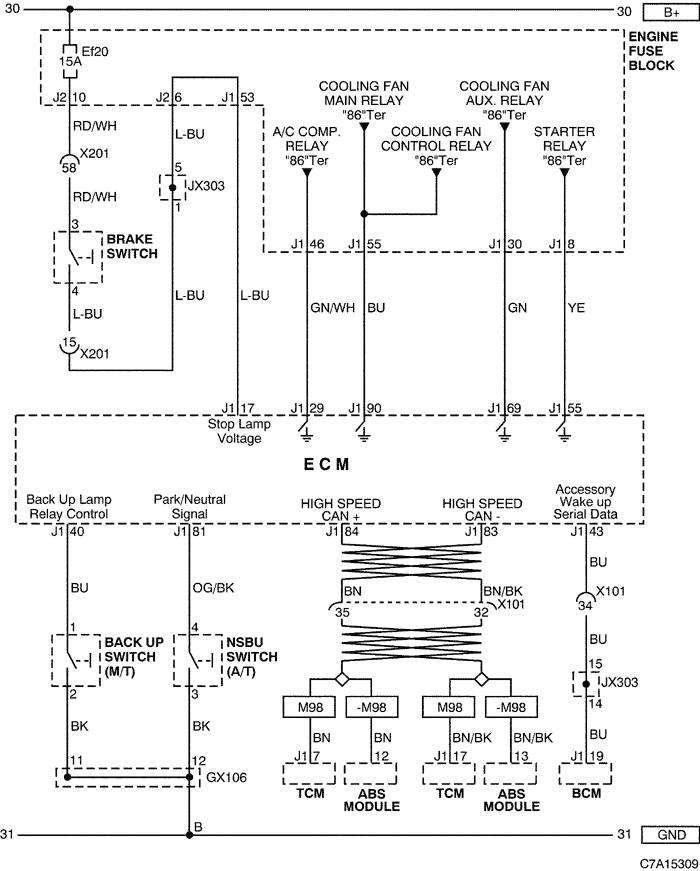

5) BRAKE SWITCH, BACK UP SWITCH & NSBU SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head

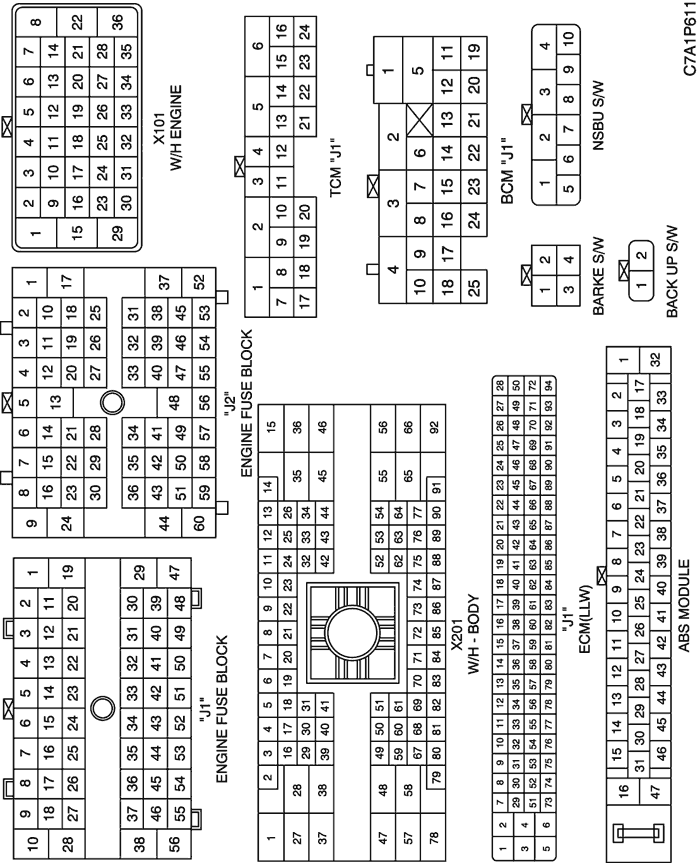

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics


6) DLC (DATA LINK CONNECTOR) CIRCUIT

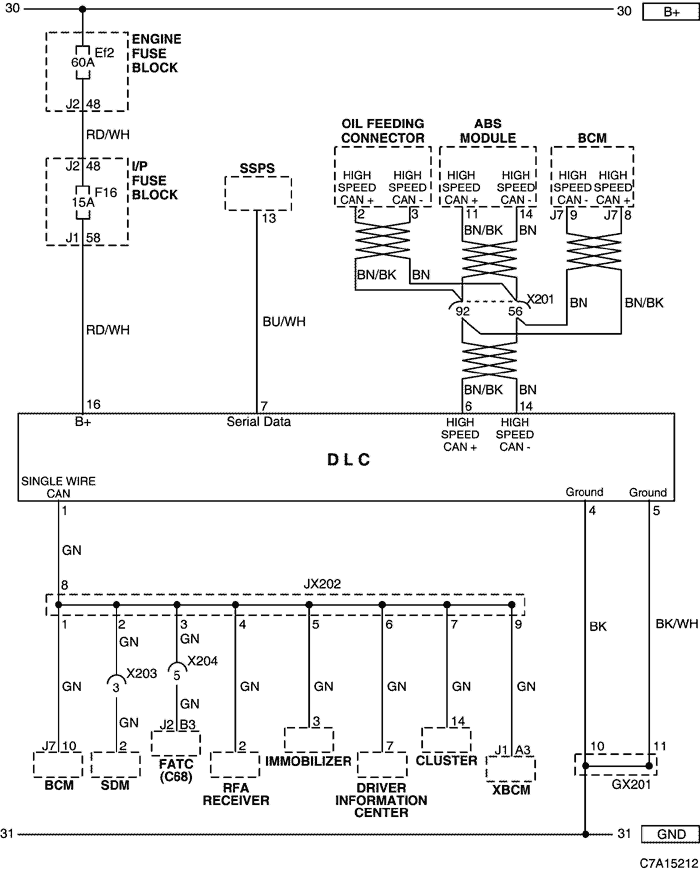

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X203 (6 Pin, Colorless) I.P - Air Bag Below the floor console
X204 (16 Pin, Black) I.P - FATC Behind the FATC
GX201 (Black/Gray) I/P Behind Steering Column - Lower

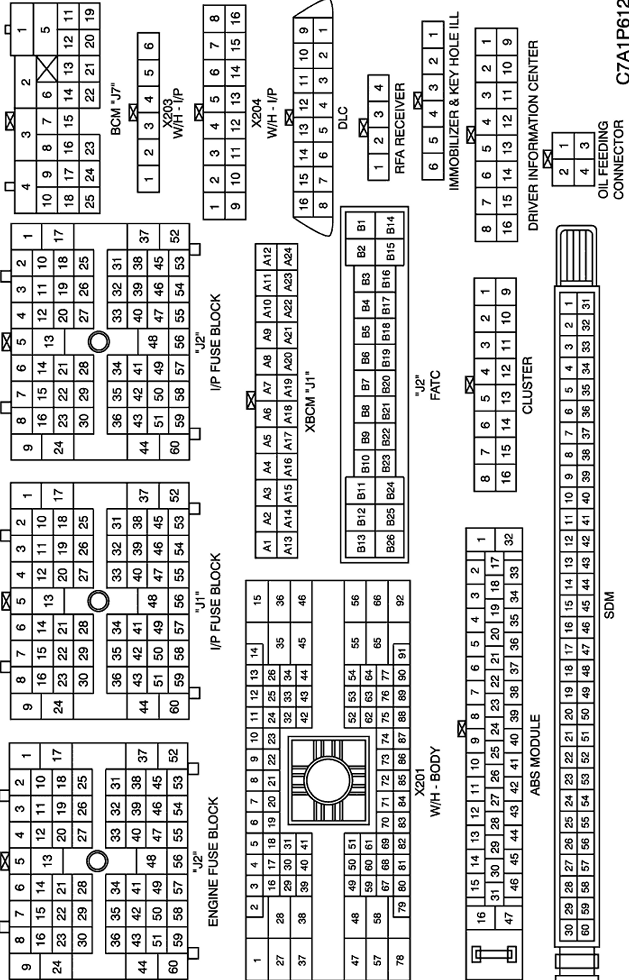

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
