19. WIPER CIRCUIT

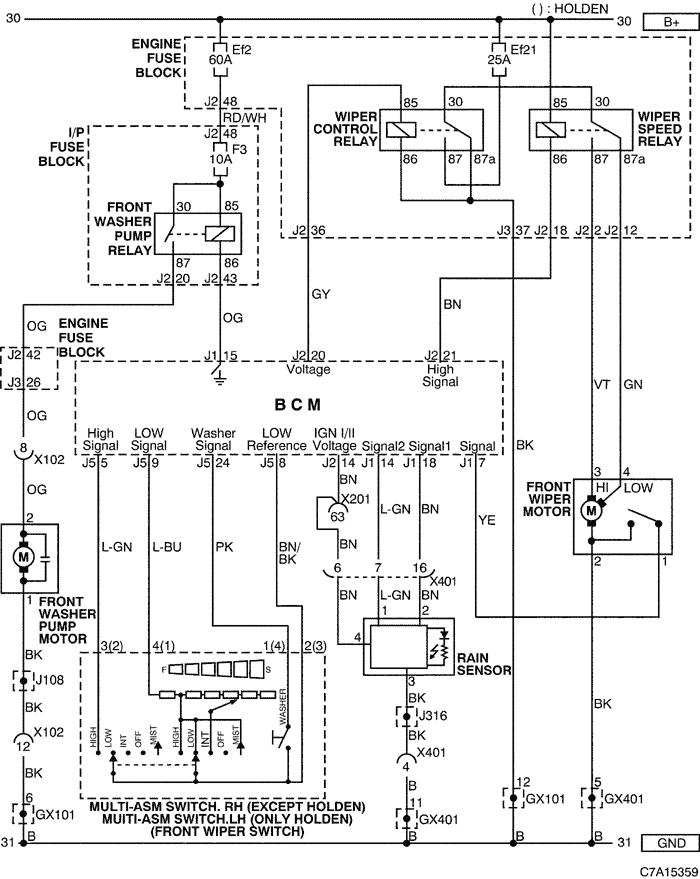

1) FRONT WIPER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X102 (12 Pin, Black) |
Front JPR - Front |
Behind the left side Head Lamp |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X401 (18 Pin, Colorless) |
Roof - Body |
Inside the left "C" pillar |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |

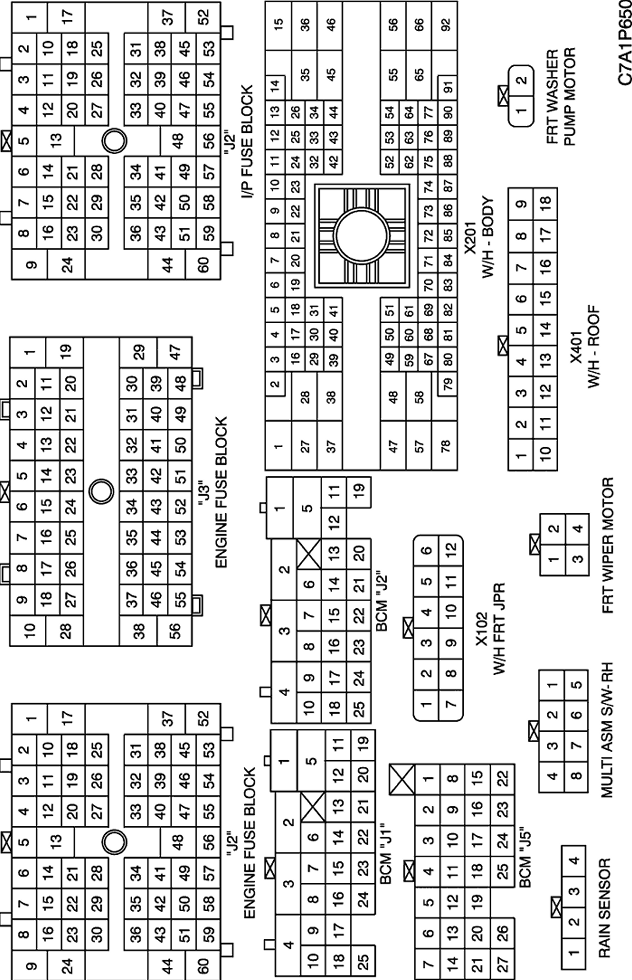

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

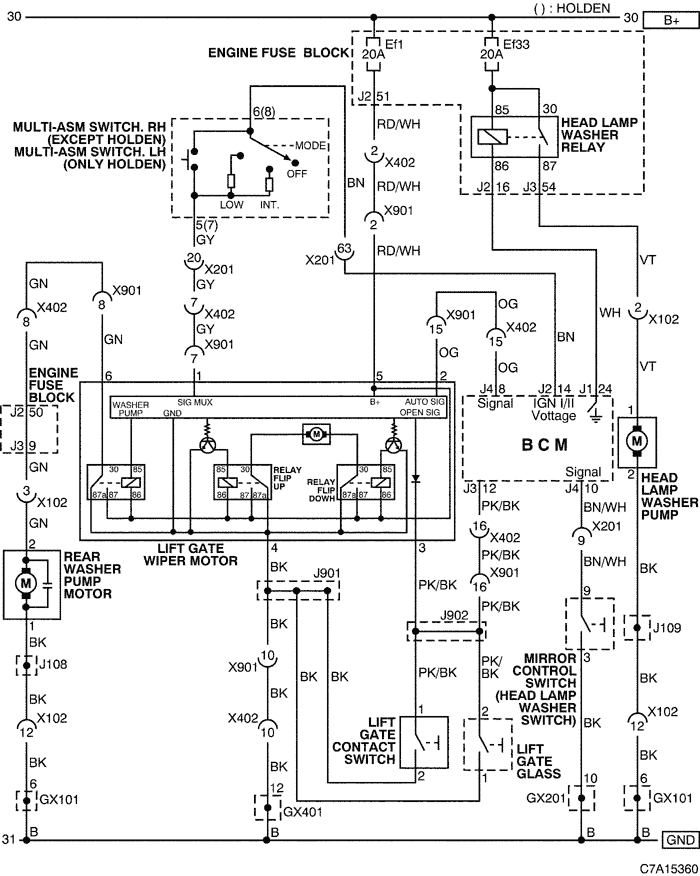

2) LIFT GATE WIPER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X102 (12 Pin, Black) |
Front JPR - Front |
Behind the left side Head Lamp |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X402 (18 Pin, Colorless) |
Lift Gate - Body |
Behind the left "C" pillar |
| X901 (18 Pin, Colorless) |
Lift Gate - Lift Gate JPR |
Behind the "2nd" Seat |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |

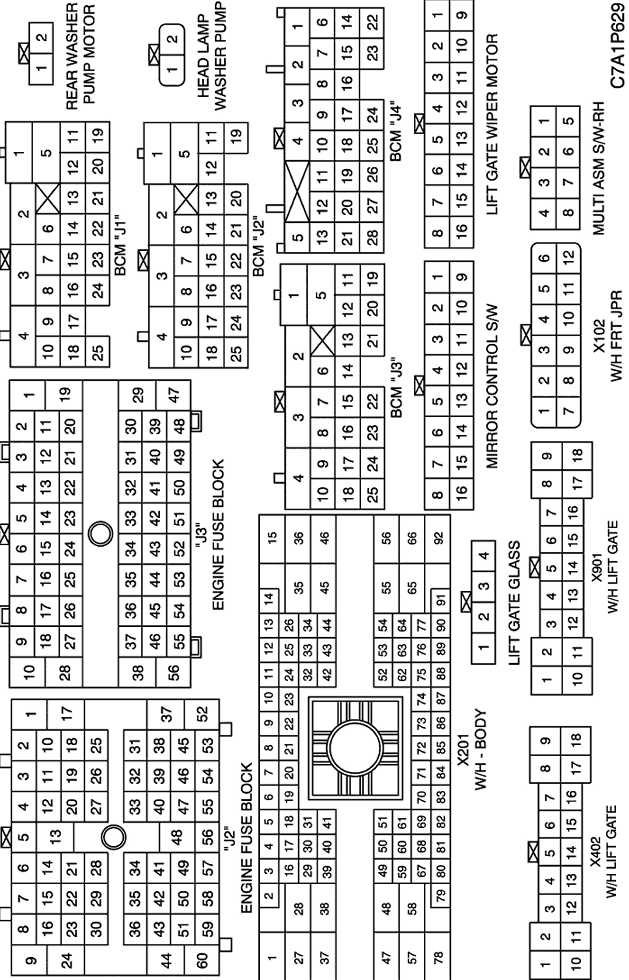

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
