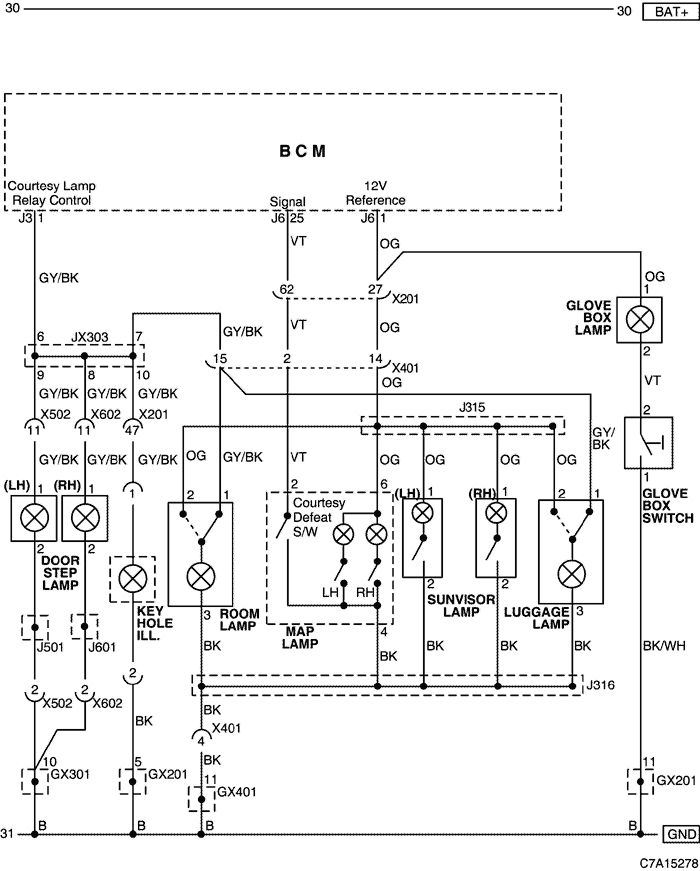

18. INTERIOR LAMP CIRCUIT
1) LAMPS (MAP, ROOM, DOOR STEP, SUNVISOR, LUGGAGE, GLOVE BOX, KEY HOLE) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X401 (18 Pin, Colorless) |
Roof - Body |
Inside the left "C" pillar |
| X502 (18 Pin, Colorless) |
Body - Front LH Door |
Under the left "A" Pillar |
| X602 (18 Pin, Colorless) |
Body - Front RH Door |
Under the right "A" Pillar |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
