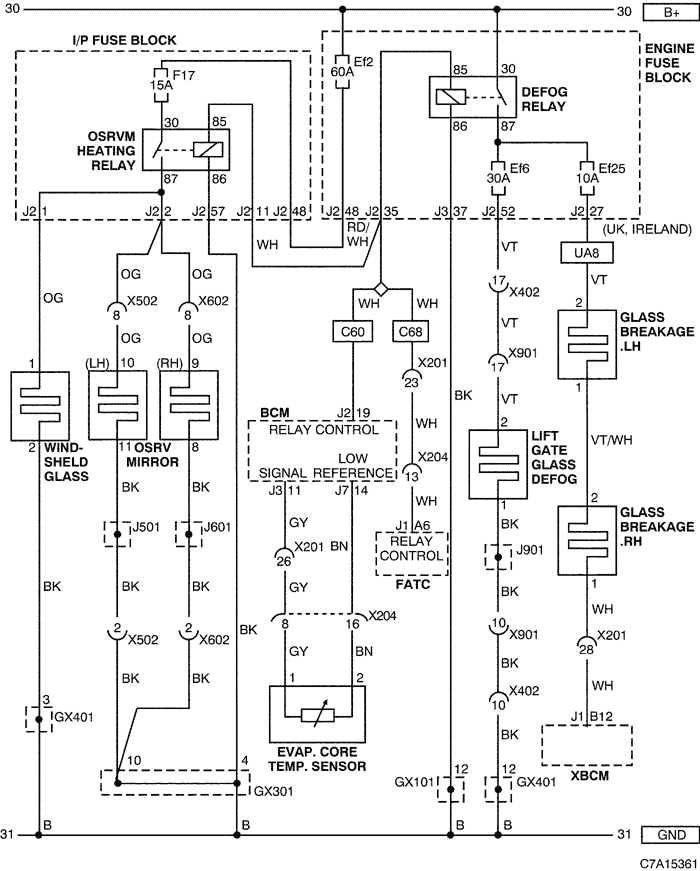

20. FRONT/REAR WINDOW DEFROSTER & OSRV MIRROR HEATING SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		 CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X204 (16 Pin, Black) I.P - FATC Behind the FATC
X402 (18 Pin, Colorless) Lift Gate - Body Behind the left "C" pillar
X502 (18 Pin, Colorless) Body - Front LH Door Under the left "A" Pillar
X602 (18 Pin, Colorless) Body - Front RH Door Under the right "A" Pillar
X901 (18 Pin, Colorless) Lift Gate - Lift Gate JPR Behind the "2nd" Seat
GX101 (Black/Gray) Front Behind the left HeadLamp
GX301 (Black/Gray) Body Under the right seat cushion
GX401 (Black/Gray) Body Right the luggage compartment

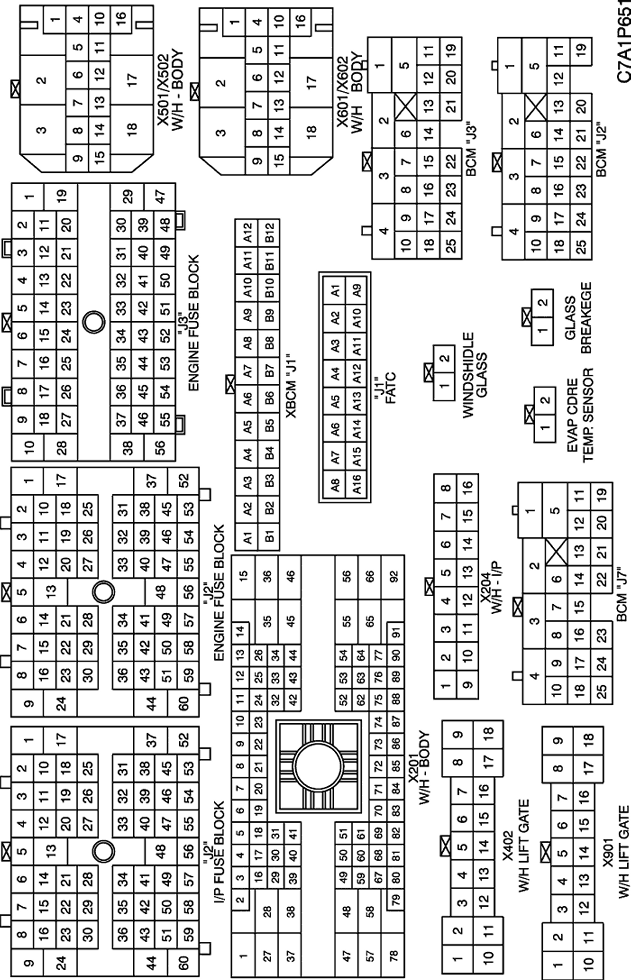

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
