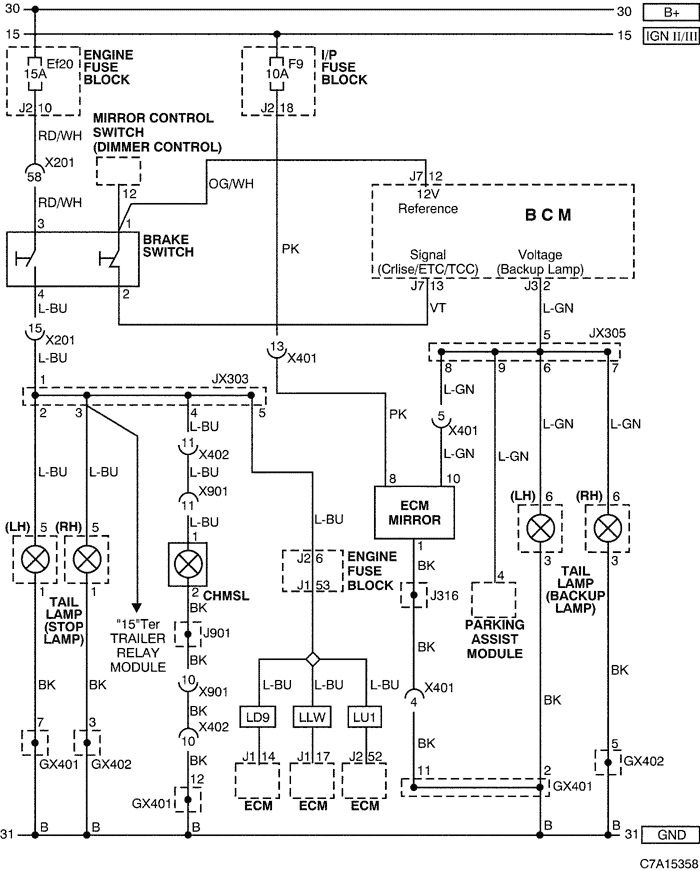

17. STOP LAMP, CENTER HIGH MOUNT STOP LAMP (CHMSL), BACK UP LAMP & ECM MIRROR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		 CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X401 (18 Pin, Colorless) Roof - Body Inside the left "C" pillar
X402 (18 Pin, Colorless) Lift Gate - Body Behind the left "C" pillar
X901 (18 Pin, Colorless) Lift Gate - Lift Gate JPR Behind the "2nd" Seat
GX401 (Black/Gray) Body Right the luggage compartment
GX402 (Black/Gray) Body Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
