2. ECM (ENGINE CONTROL MODULE) : ME7.9.9 (FAM II 2.4D)

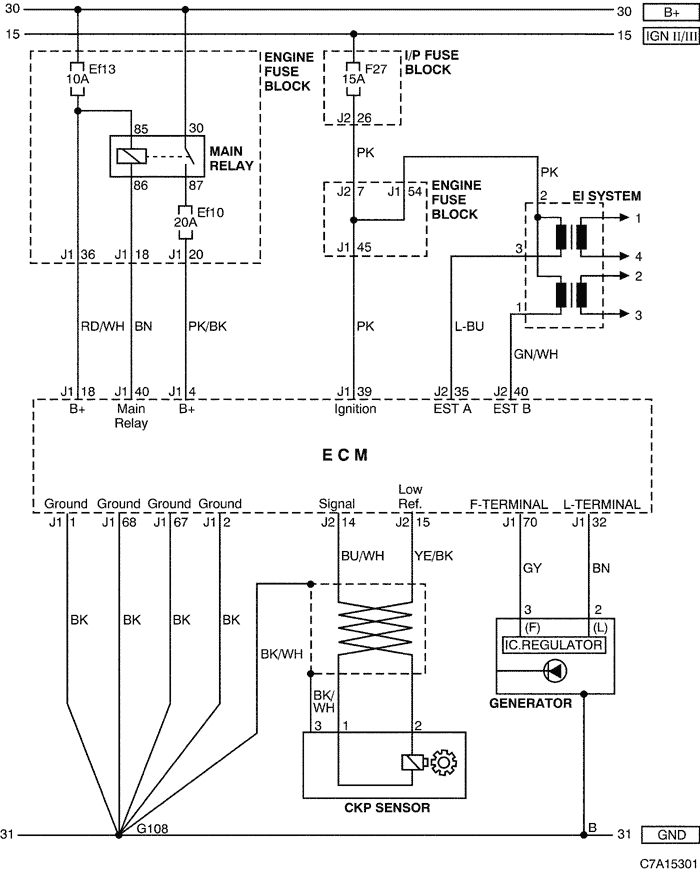

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM, GENERATOR & CKP SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
G108 Engine (FAM II) On the Cylinder Block

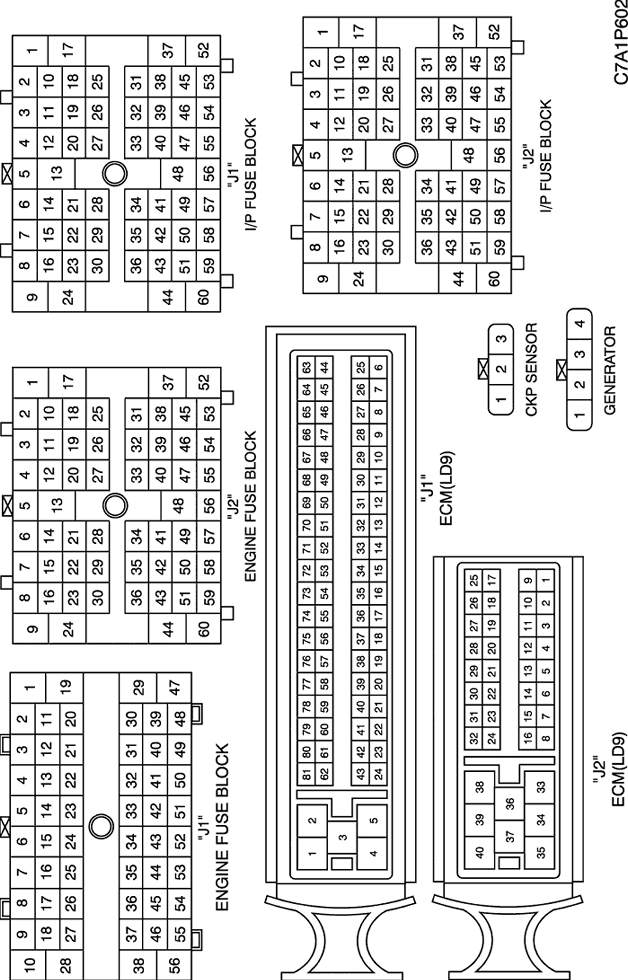

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

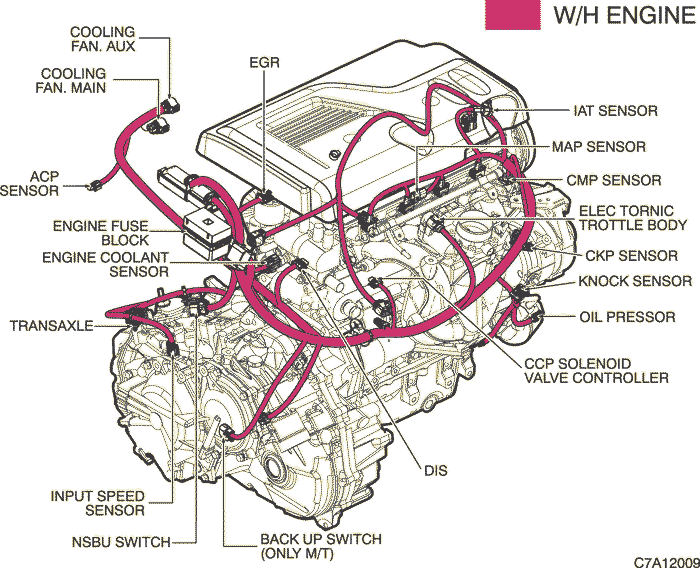

c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

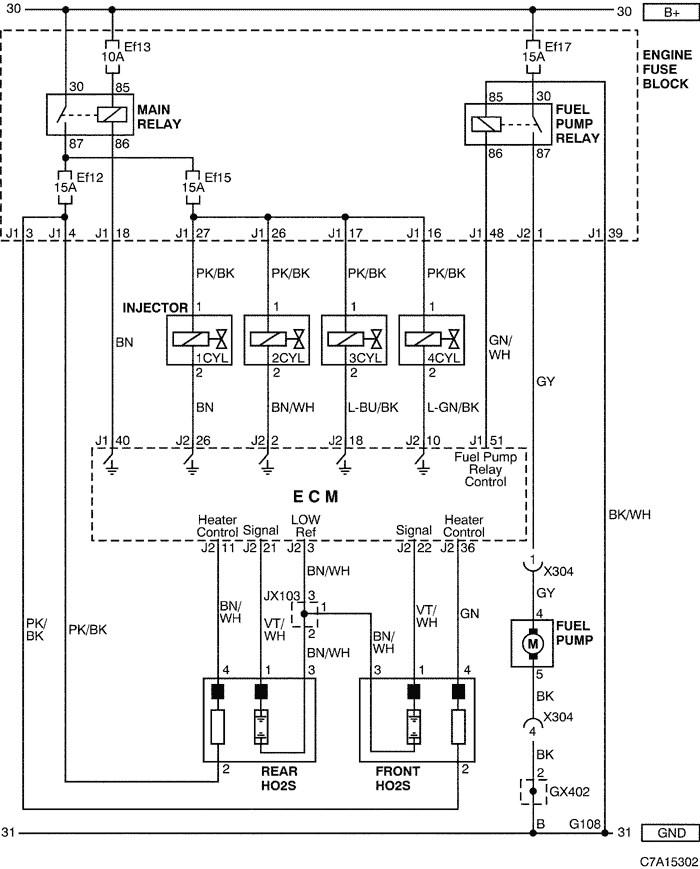

2) FUEL PUMP, INJECTOR & HEATED O2 SENSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X304 (12 Pin, Black) Fuel Sender - Body Below the right "C" pillar
G108 Engine (FAM II) On the Cylinder Block
GX402 (Black/Gray) Body Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

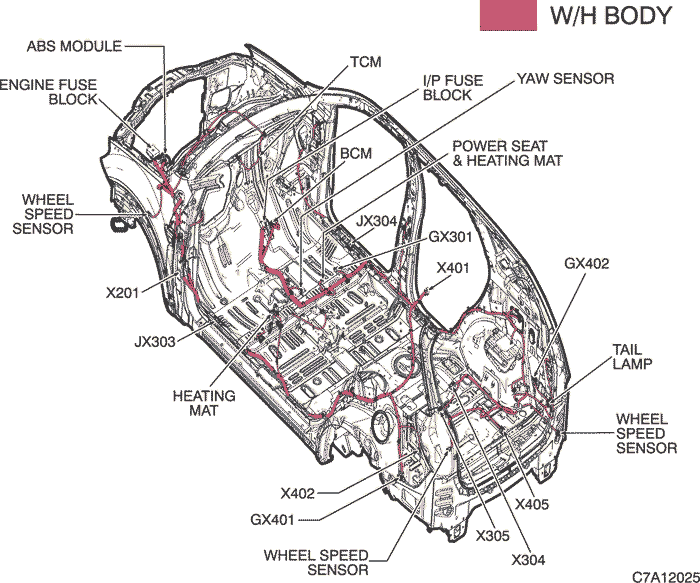

c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

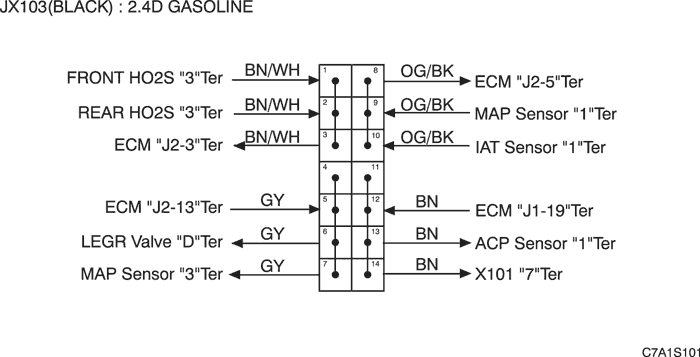

d. SPLICE PACK

Display graphicTranslations of text in graphics

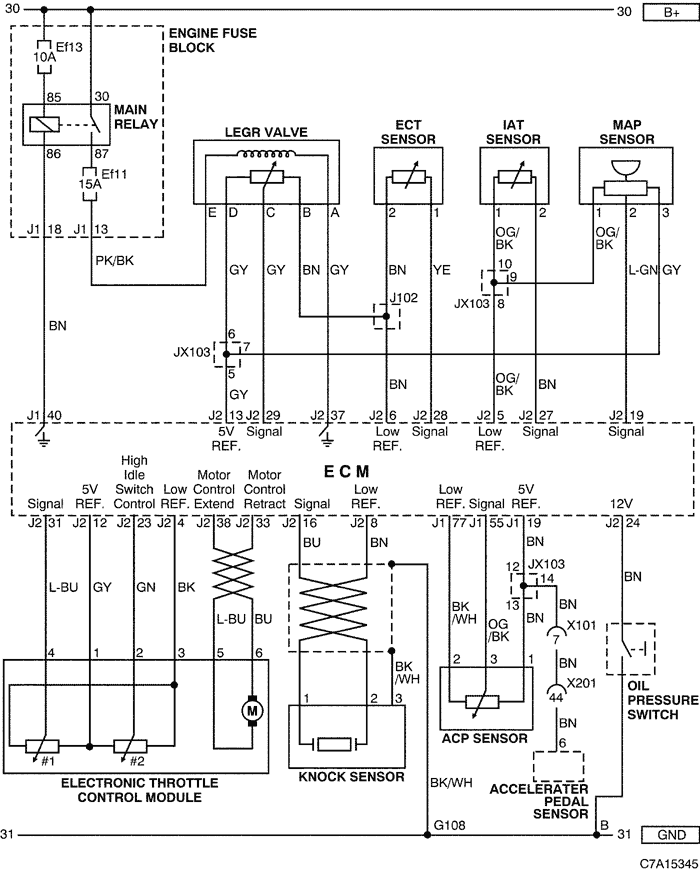

3) ETC MODULE, SENSOR (MAP, ECT, KNOCK, ACP & ACCELERATOR PEDAL), OIL PRESSURE SWITCH & LEGR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
G108 Engine (FAM II) On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics

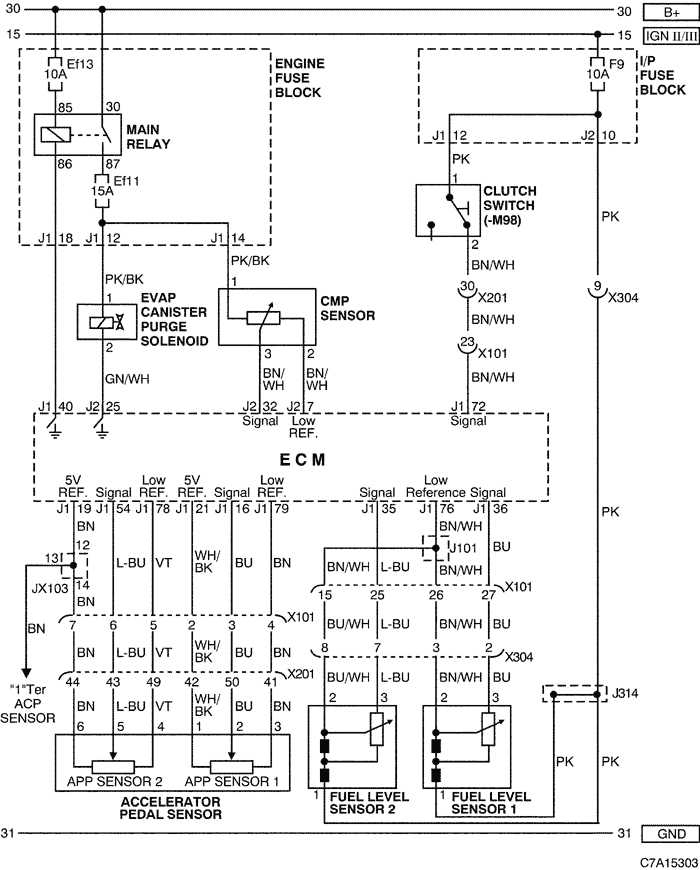

4) EVAP CANISTER PURGE SOLENOID, SENSOR (CMP, ACCELERATOR PEDAL, FUEL LEVEL) & CLUTCH SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X304 (12 Pin, Black) Fuel Sender - Body Below the right "C" pillar

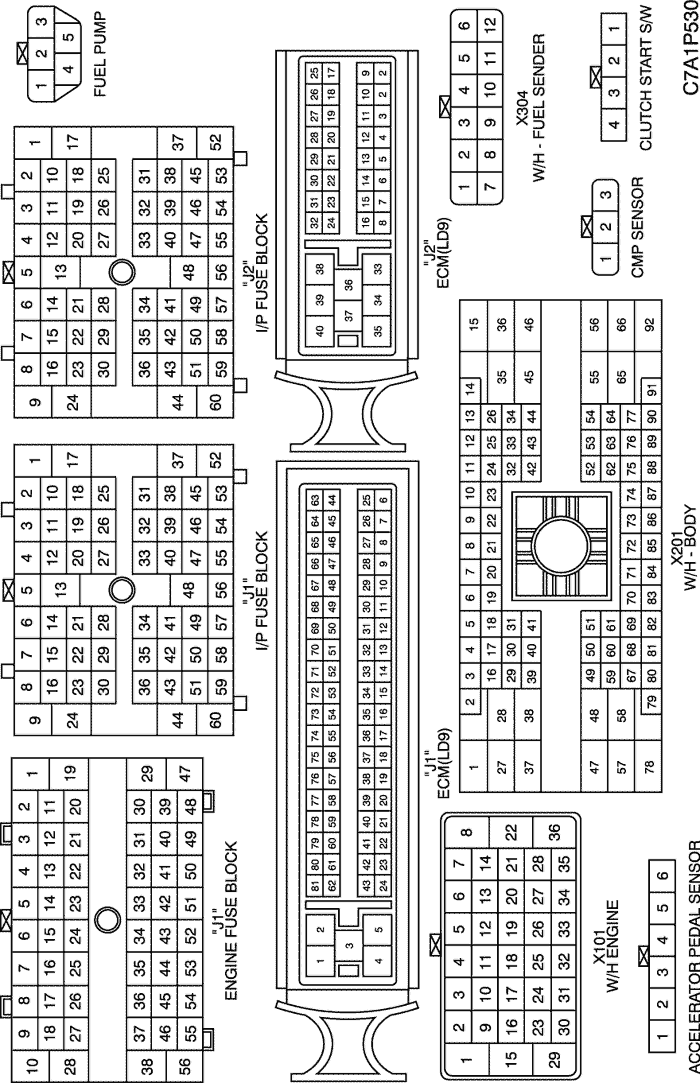

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics

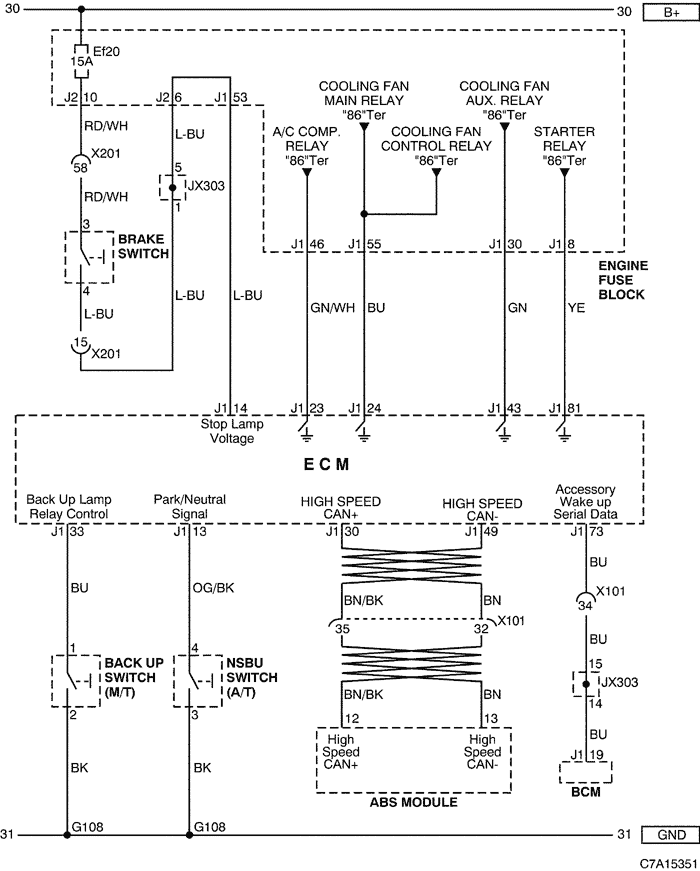

5) BRAKE SWITCH, BACK UP SWITCH, NSBU SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
G108 Engine (FAM II) On the Cylinder Block

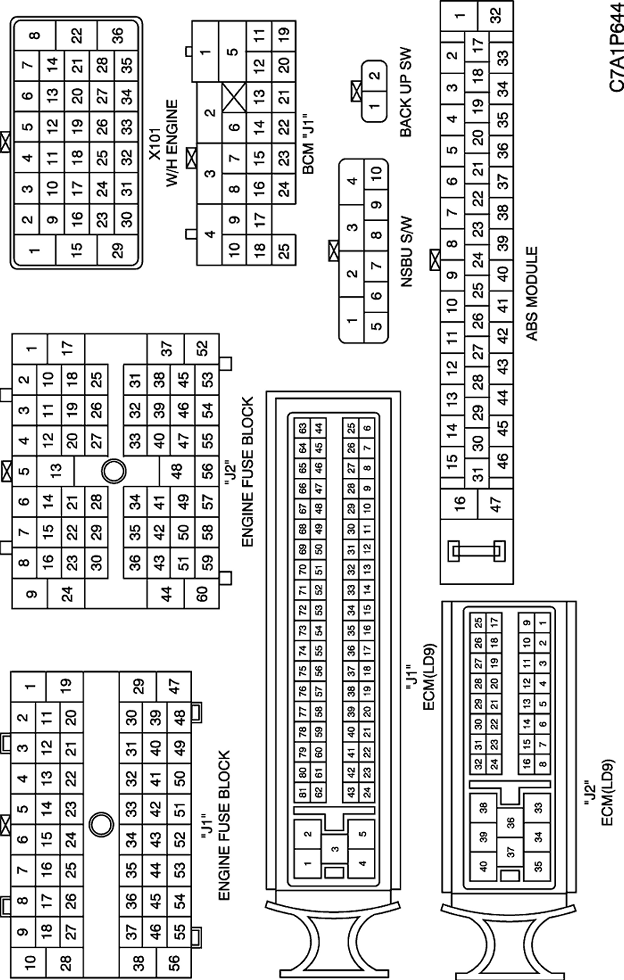

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

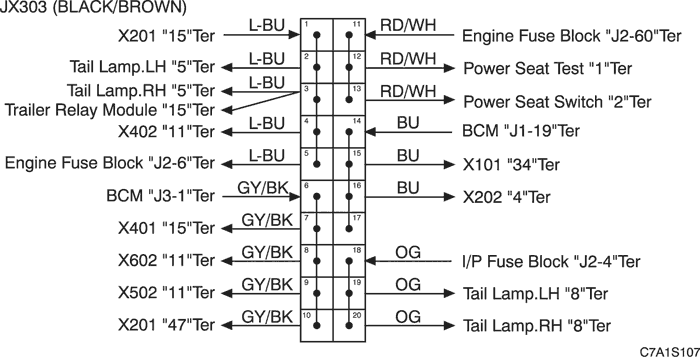

d. SPLICE PACK

Display graphicTranslations of text in graphics

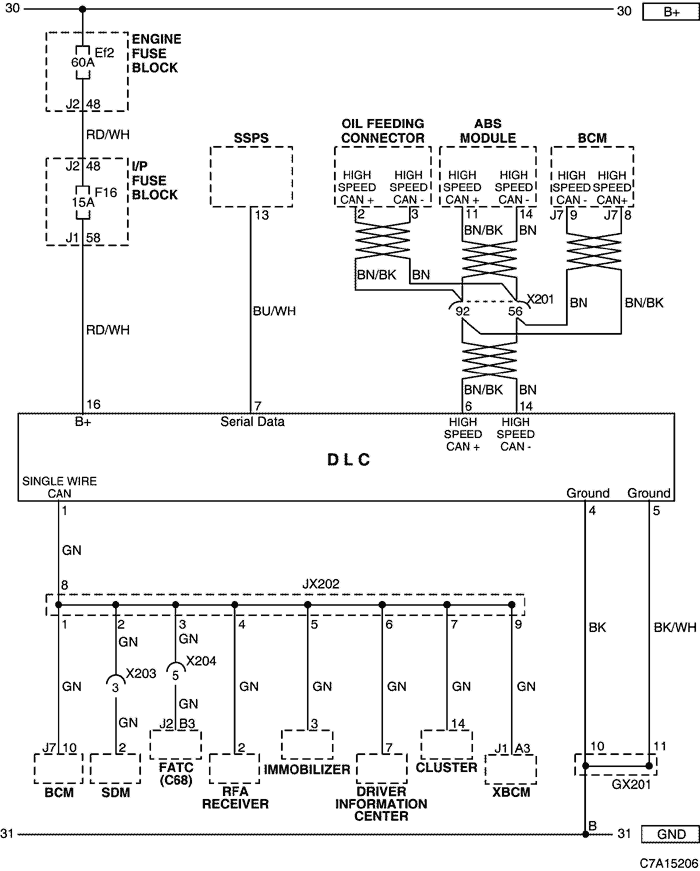

6) DLC (DATA LINK CONNECTOR) CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)
CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X203 (6 Pin, Colorless) I.P - Air Bag Below the floor console
X204 (16 Pin, Black) I.P - FATC Behind the FATC
GX201 (Black/Gray) I/P Behind Steering Column - Lower

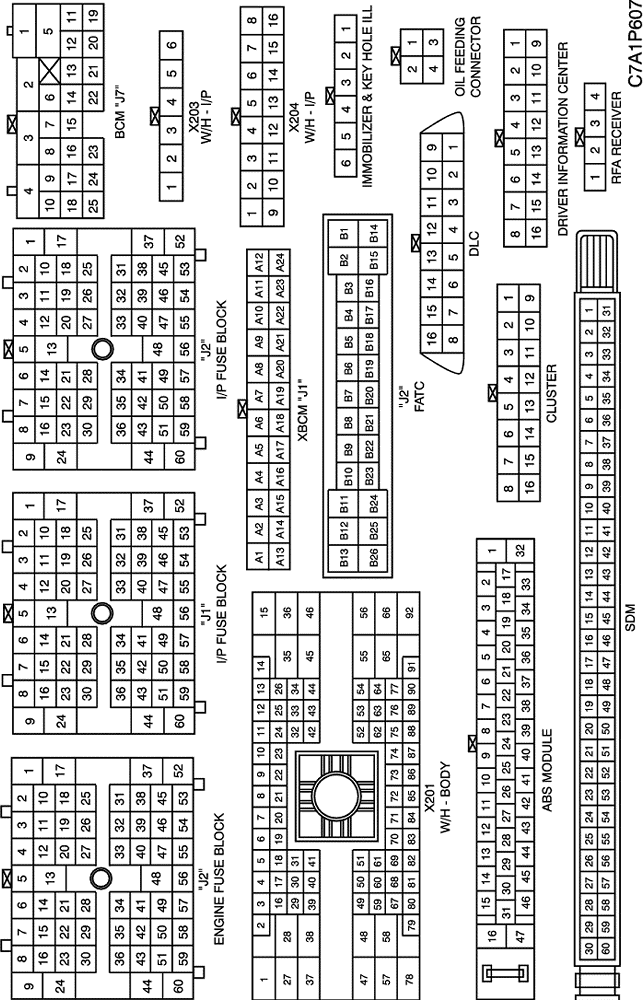

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics

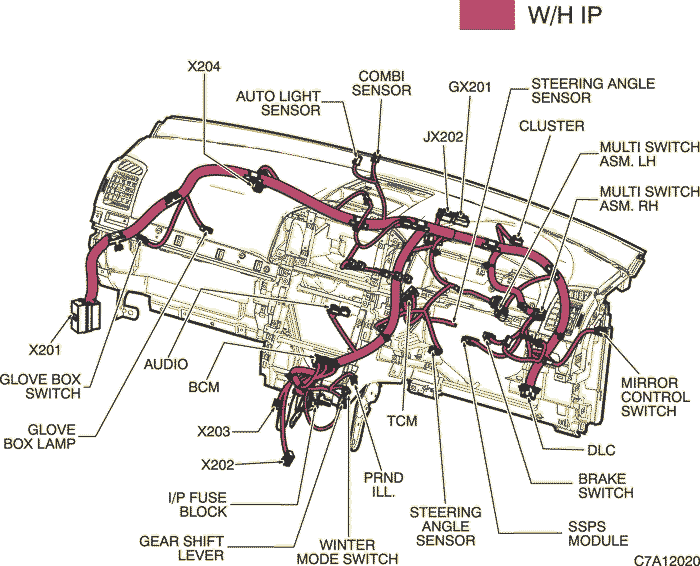

c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
