8. FATC (FULL AUTOMATIC TEMPERATURE CONTROL)

1) MOTOR (BLOWER, INTAKE, MODE, TEMPERATURE) & POWER MODULE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		 CONNECTING WIRING HARNESS CONNECTOR POSITION
X204 (16 Pin, Black) I.P - FATC Behind the FATC
G203 FATC Inside the left instrument panel
GX201 (Black/Gray) I/P Behind Steering Column - Lower

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics

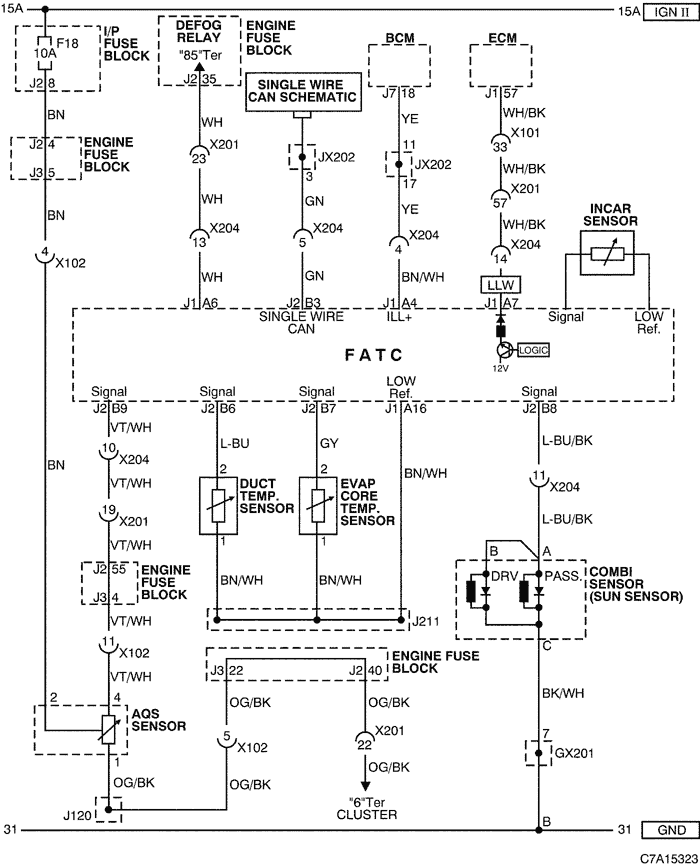

2) SENSOR (AQS, DUCT TEMP., EVAP CORE TEMP., INCAR, COMBI), ECM & BCM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		 CONNECTING WIRING HARNESS CONNECTOR POSITION
X101 (36 Pin, Black) Engine - Body Behind the Engine Fuse Block
X102 (12 Pin, Black) Front JPR - Front Behind the left side Head Lamp
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X204 (16 Pin, Black) I.P - FATC Behind the FATC
GX201 (Black/Gray) I/P Behind Steering Column - Lower

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
