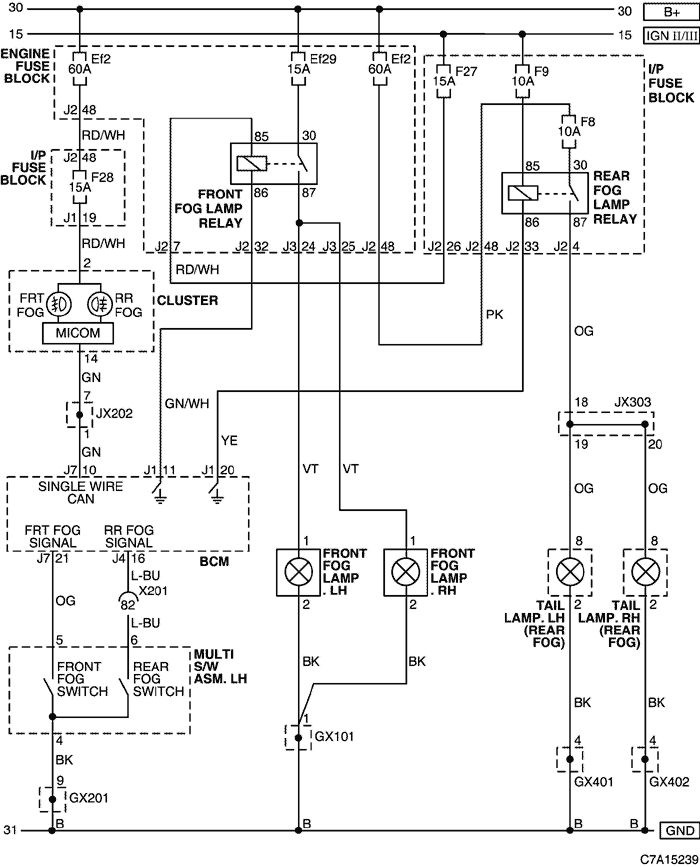

15. FRONT & REAR FOG LAMP CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		 CONNECTING WIRING HARNESS CONNECTOR POSITION
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
GX101 (Black/Gray) Front Behind the left HeadLamp
GX201 (Black/Gray) I/P Behind Steering Column - Lower
GX401 (Black/Gray) Body Right the luggage compartment
GX402 (Black/Gray) Body Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
