14. ILLUMINATION CIRCUIT

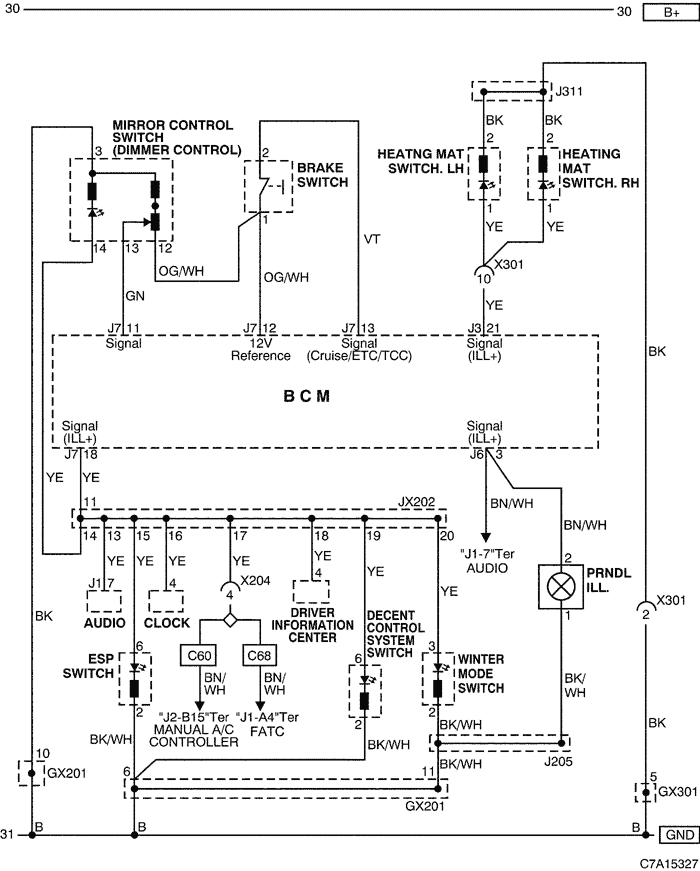

1) ILLUMINATION, DIMMER CONTROL SWITCH & HEATING MAT SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| X301 (12 Pin, Colorless) |
Console - Body |
Below the floor console |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
2) LAMP (LICENSE PLATE & FRONT/REAR PARKING) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) |
CONNECTING WIRING HARNESS |
CONNECTOR POSITION |
| X402 (18 Pin, Colorless) |
Lift Gate - Body |
Behind the left "C" pillar |
| X901 (18 Pin, Colorless) |
Lift Gate - Lift Gate JPR |
Behind the "2nd" Seat |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |
| GX402 (Black/Gray) |
Body |
Right the luggage compartment |

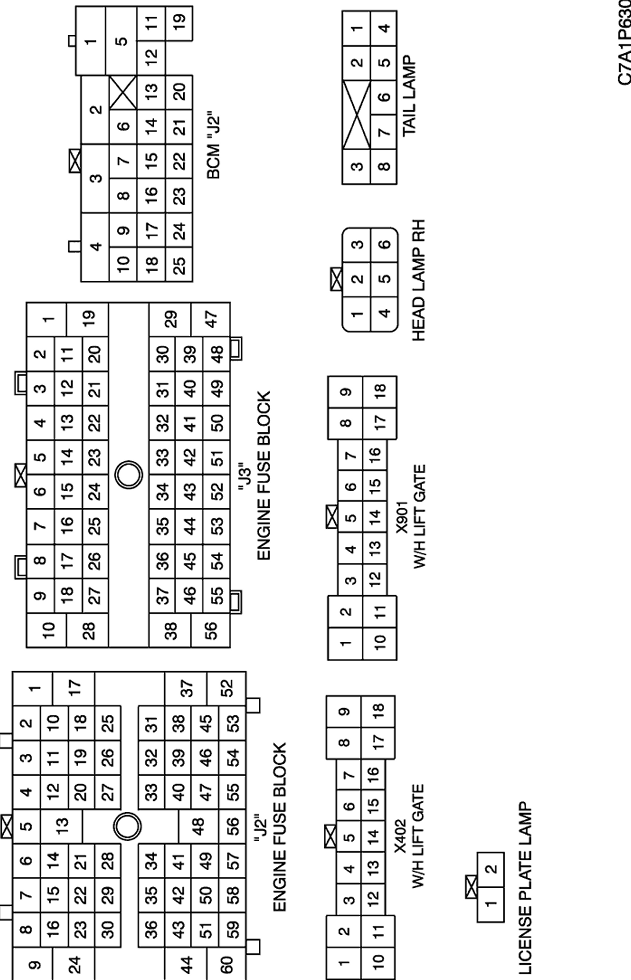

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
