Captiva |
||||||||
|
|
|||||||

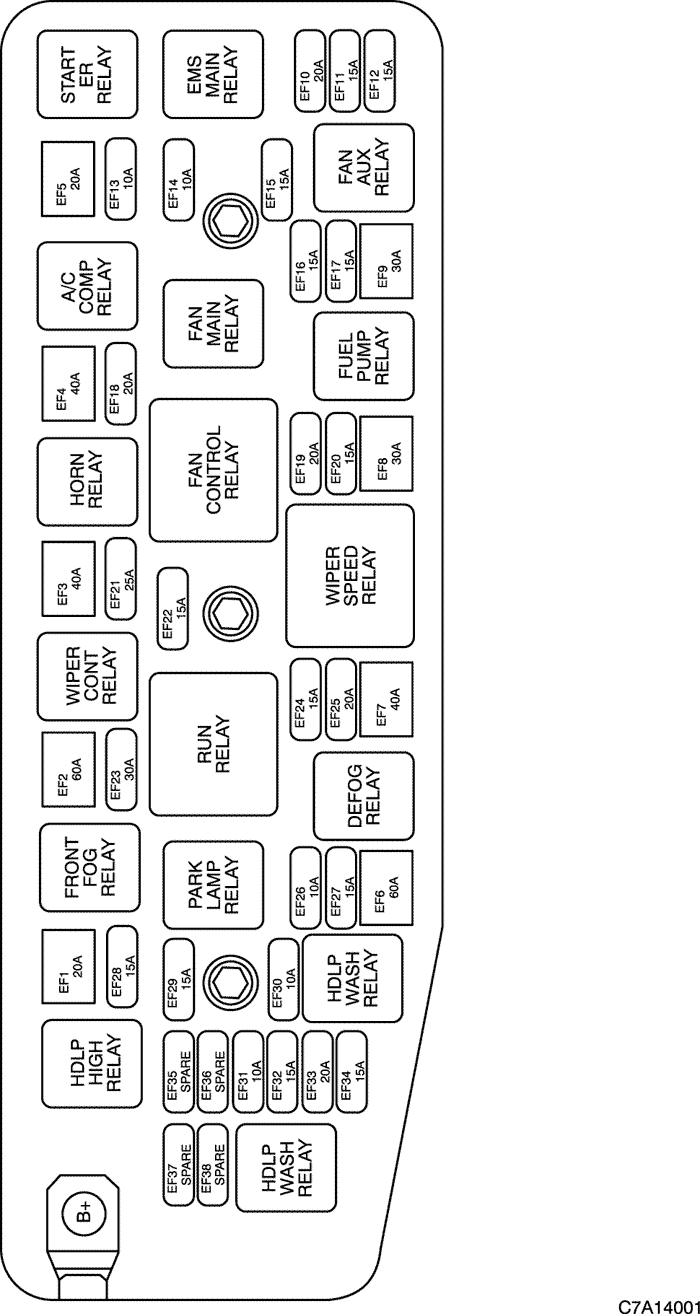

Power Supply |
Fuse No. |
Capacity |
Usage |
|
30 B(+)
|
Ef1
|
20A
|
REAR WIPER MOTOR
|
|
Ef2
|
60A
|
I/P FUSE BLOCK(BATTERY MAIN)
|
|
|
Ef3
|
40A
|
I/P FUSE BLOCK(IGN II), BLOWER MOTOR
|
|
|
Ef4
|
40A
|
ABS MODULE
|
|
|
Ef5
|
20A
|
STARTER RELAY
|
|
|
Ef6
|
30A
|
LIFT GATE GLASS DEFOG
|
|
|
Ef7
|
40A
|
I/P FUSE BLOCK(ACC/RAP RELAY, RUN/CRANK RELAY)
|
|
|
Ef8
|
30A
|
COOLING FAN AUX.
|
|
|
Ef9
|
30A
|
COOLING FAN MAIN.
|
|
|
MAIN RELAY
|
Ef10
|
20A
|
ECM
|
| . | . |
LD9 : CANISTER PURGE SOLENOID, LEGR VALVE, CMP SENSOR
|
|
|
Ef11
|
15A
|
LLW : THROTTLE PLATE ACTUATOR, BOOST PRESSURE ACTUATOR, CMP SENSOR
|
|
| . | . |
LU1 : IGNITION COIL, INJECTOR(#2,4.6)
|
|
| . | . |
LD9 : FRT HO2S, REAR HO2S
|
|
|
Ef12
|
15A
|
LLW : ECM
|
|
| . | . |
LU1 : HO2S, IMRC, CAMSHAFT POSITION ACTUATOR, INTAKE/EXHAUST, CANISTER PURGE SOLENOID
|
|
|
30 B(+)
|
Ef13
|
10A
|
STARTER RELAY, MAIN RELAY
|
|
Ef14
|
10A
|
A/C COMP. RELAY
|
|
|
MAIN RELAY
|
. | . |
LD9 : INJECTOR, COOLING FAN (AUX., MAIN, CONTROL), A/C COMP. RELAY
|
|
Ef15
|
30A
|
LLW : GLOW PLUG CONTROL UNIT, COOLING FAN(AUX., MAIN, CONTROL), A/C COMP RELAY, ENGINE FUSE BLOCK AUX.
|
|
| . | . |
LU1 : IGNITION COIL, INJECTOR(#1,3,5), COOLING FAN(AUX., MAIN, CONTROL), A/C COMP. RELAY
|
|
|
30 B(+)
|
Ef16
|
15A
|
COUPLING CONTROL MODULE
|
|
Ef17
|
15A
|
FUEL PUMP RELAY
|
|
|
Ef18
|
20A
|
ABS MODULE, OIL FEEDING CONN.
|
|
|
Ef19
|
-
|
-
|
|
|
Ef20
|
15A
|
BRAKE SWITCH
|
|
| . |
Ef21
|
25A
|
COOLING FAN CONTROL RELAY
|
|
Ef22
|
15A
|
HORN RELAY
|
|
|
30 B(+)
|
Ef23
|
30A
|
POWER SEAT & HEATING MAT SWITCH POWER SEAT TEST CONN.
|
|
PARK LAMP RELAY
|
Ef24
|
15A
|
HEAD LAMP LH, TAIL LAMP LH, TURN/PARK LAMP LH, LICENSE LAMP
|
|
DEGOG RELAY
|
Ef25
|
20A
|
SUN ROOF MODULE
|
|
HEAD LAMP RELAY
|
Ef26
|
15A
|
HEAD LAMP RH, MIRROR CONTROL SWITCH
|
|
Ef27
|
15A
|
HEAD LAMP LH
|
|
|
Ef28
|
15A
|
HEAD LAMP LH/RH
|
|
|
30 B(+)
|
Ef29
|
15A
|
FRT FOG LAMP RELAY
|
|
DEGOG RELAY
|
Ef30
|
10A
|
HEAD LAMP. LH, TAIL LAMP. LH
|
|
PARK LAMP RELAY
|
Ef31
|
10A
|
HEAD LAMP. RH, TAIL LAMP. RH, TURN/PARK LAMP RH
|
|
30 B(+)
|
Ef32
|
15A
|
TCM
|
Power Supply |
Fuse No. |
Capacity |
Usage |
|
30 B(+)
|
Af1
|
60A
|
GLOW PLUG CONTROL UNIT
|
|
30 B(+)
|
Af2
|
30A
|
FUEL FILTER HEATER RELAY
|
|
30 B(+)
|
Af3
|
40A
|
PTC-1 RELAY
|
|
30 B(+)
|
Af4
|
40A
|
PTC-2 RELAY
|
|
30 B(+)
|
Af5
|
40A
|
PTC-3 RELAY
|
Power Supply |
Fuse No. |
Capacity |
Usage |
|
ACC/RAP RELAY
|
F1
|
20A
|
POWER WINDOW MAIN SWICH, SUNROOF MODULE
|
|
F2
|
20A
|
POWER WINDOW MAIN SWICH
|
|
|
Ef2(60A)
|
F3
|
10A
|
FRT WASHER PUMP RELAY
|
| . |
F4
|
-
|
NOT USED
|
|
Ef2(60A)
|
F5
|
10A
|
SDM
|
|
RUN/CRANK RELAY
|
F6
|
10A
|
SDM
|
| . |
F7
|
-
|
NOT USED
|
|
Ef2(60A)
|
F8
|
10A
|
REAR FOG LAMP RELAY
|
|
RUN/CRANK RELAY
|
F9
|
10A
|
REAR FOG LAMP RELAY, FUEL PUMP, FUEL TANK LEVEL SENSOR, ECM MIRROR, CLUTCH SWITCH
|
|
ACC/RAP RELAY
|
F10
|
10A
|
AUDIO, CLOCK
|
|
Ef2(60A)
|
F11
|
10A
|
BCM
|
|
Ef2(60A)
|
F12
|
2A
|
IGNITION SWITCH, IMMOBILIZER.
|
|
RUN/CRANK RELAY
|
F13
|
10A
|
CLUSTER, DRIVER INFORMATION CENTER, PASSENGER SEATBELT INDICATOR
|
|
Ef2(60A)
|
F14
|
15A
|
BCM, XBCM
|
|
Ef3(40A)
|
F15
|
10A
|
SSPS MODULE
|
|
Ef2(60A)
|
F16
|
20A
|
BCM
|
|
Ef2(60A)
|
F17
|
15A
|
OSRVM HEATING RELAY
|
|
Ef3(40A)
|
F18
|
10A
|
MANUAL A/C CONT. , FATC, AQS SENSOR, BLOWR HIGH RELAY, PARK ASSIST MODULE, ENGINE AUX. FUSE BLOCK(PTC RELAY)
|
|
Ef2(60A)
|
F19
|
15A
|
MANUAL A/C CONT. , FATC, DLC
|
|
Ef2(60A)
|
F20
|
10A
|
LIFT GATE GLASS RELAY
|
| . |
F21
|
-
|
NOT USED
|
| . |
F22
|
-
|
NOT USED
|
| . |
F23
|
-
|
NOT USED
|
|
Ef2(60A)
|
F24
|
15A
|
BCM
|
|
RUN/CRANK RELAY
|
F25
|
10A
|
XBCM
|
|
Ef2(60A)
|
F26
|
15A
|
BCM
|
|
RUN/CRANK RELAY
|
F27
|
15A
|
FRT FOG RELAY
|
|
Ef2(60A)
|
F28
|
15A
|
CLUSTER, CLOCK, AUDIO, RFA RECEIVER, DRIVER INFORMATION CENTER
|
|
RUN/CRANK RELAY
|
F29
|
15A
|
TCM
|
|
Ef3(40A)
|
F30
|
20A
|
HEATING MAT SWITCH
|
|
Ef2(60A)
|
F31
|
15A
|
BCM
|
|
Ef2(60A)
|
F32
|
20A
|
EXTRA POWER JACK CARGO
|
|
ACC/RAP RELAY
|
F33
|
20A
|
CIGAR LIGHTER
|
|
Ef2(60A)
|
F34
|
20A
|
EXTRA POWER JACK CARGO
|
|
Ef2(60A)
|
F35
|
15A
|
BCM
|
| . |
F36
|
15A
|
DOOR DEAD LOCK RELAY
|
| . |
F37
|
-
|
NOT USED
|
|
Ef2(60A)
|
F38
|
20A
|
DOOR LOCK/UNLOCK RELAY
|
|
ACC/RAP RELAY
|
F39
|
10A
|
MIRROR CONTROL SWITCH, FOLDING MIRROR UNIT
|
 |
 |
