Captiva |
||||||||
|
|
|||||||

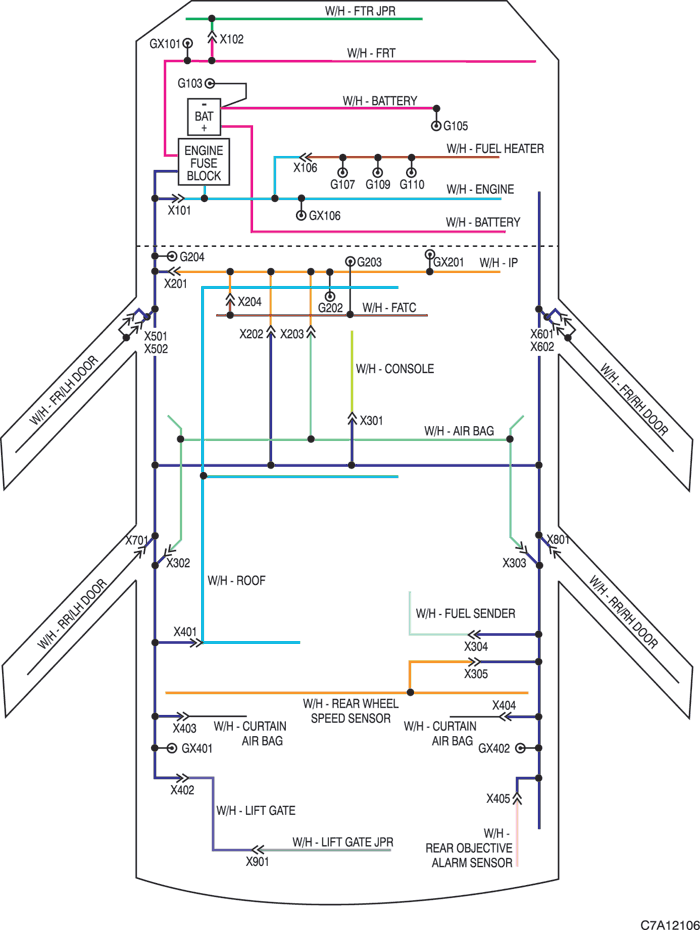

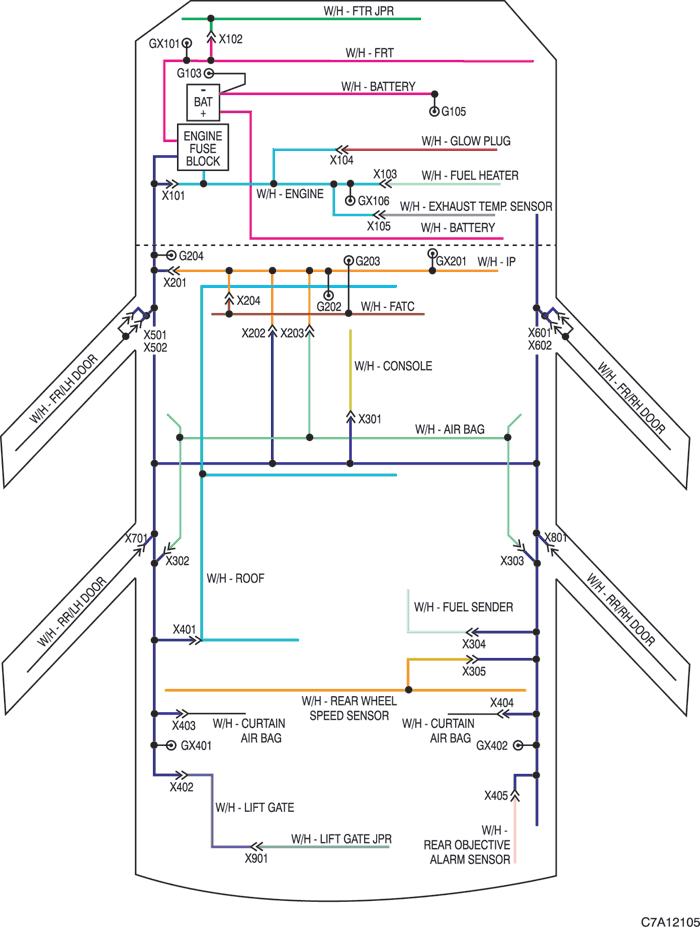

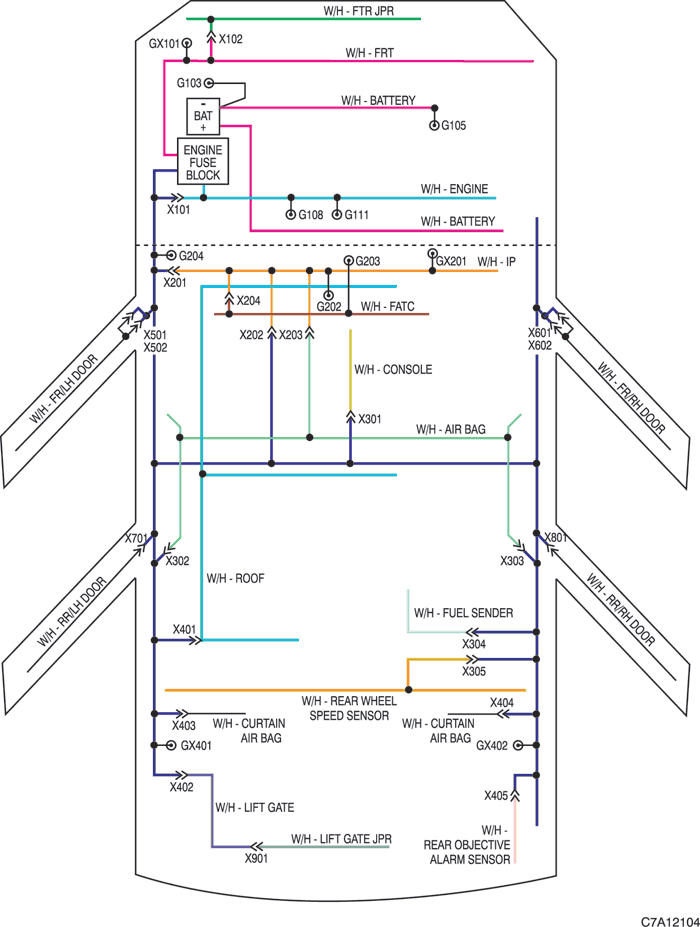

Connector Number
|
Terminal Number
|
Color
|
Connecting Wiring Harness
|
Connecting Position
|
|
X101
|
36
|
Black
|
Engine - Body
|
Behind the Engine Fuse Block
|
|
X102
|
12
|
Black
|
Front JPR - Front
|
Behind the left side Head Lamp
|
|
X103
|
8
|
Black
|
Engine - Fuel Heater (DSL)
|
Next to the ECM
|
|
X104
|
4
|
Black
|
Engine - Glow Plug (DSL)
|
Left side upper Cylinder
|
|
X105
|
4
|
Black
|
Engine - Exhaust Gas Temp. Sensor (DSL)
|
Behind the Cylinder Head
|
|
X106
|
7
|
Black
|
Engine - Fuel Injector (HVF6)
|
Upper the cylinder Head
|
|
X201
|
92
|
Black
|
Body - I.P
|
Below to the "A" pillar
|
|
X202
|
12
|
Colorless
|
I.P - Body
|
Behind the Audio
|
|
X203
|
6
|
Colorless
|
I.P - Air Bag
|
Below the floor console
|
|
X204
|
16
|
Black
|
I.P - FATC
|
Behind the FATC
|
|
X301
|
12
|
Colorless
|
Console - Body
|
Below the floor console
|
|
X302
|
2
|
Yellow
|

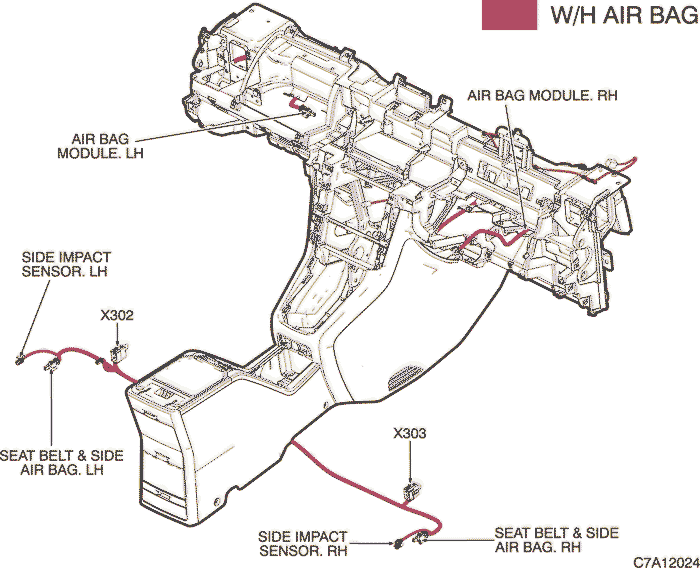

Body - Air Bag
|
Inside left "B" Pillar
|
|
X303
|
2
|
Yellow
|
Body - Air Bag
|
Inside right "B" Pillar
|
|
X304
|
12
|
Black
|
Fuel Sender - Body
|
Below the right "C" pillar
|
|
X305
|
4
|
Black
|
Body - Rear Wheel Speed Sensor
|
Behind the "2nd" Seat
|
|
X401
|
18
|
Colorless
|
Roof - Body
|
Inside the left "C" pillar
|
|
X402
|
18
|
Colorless
|
Lift Gate - Body
|
Behind the left "C" pillar
|
|
X403
|
2
|
Black
|
Curtain Air Bag - Body
|
Behind the left "C" pillar
|
|
X404
|
2
|
Black
|
Curtain Air Bag - Body
|
Behind the right "C" pillar
|
|
X405
|
6
|
Black
|
Body - Rear Objective Alarm Sensor
|
Behind the right Tail Lamp
|
|
X501
|
18
|
Gray
|
Body - Front LH Door
|
Under the left "A" Pillar
|
|
X502
|
18
|
Colorless
|
Body - Front LH Door
|
Under the left "A" Pillar
|
|
X601
|
18
|
Gray
|
Body - Front RH Door
|
Under the right "A" Pillar
|
|
X602
|
18
|
Colorless
|
Body - Front RH Door
|
Under the right "A" Pillar
|
|
X701
|
15
|
Colorless
|
Body - Rear LH Door
|
Under the left "B" Pillar
|
|
X801
|
15
|
Colorless
|
Body - Rear RH Door
|
Under the right "B" Pillar
|
|
X901
|
18
|
Colorless
|
Lift Gate - Lift Gate JPR
|
Behind the "2nd" Seat
|
Ground/Ground Pack Number
|
Color
|
Wiring Harness
|
Ground Position
|
|
GX101
|
Black/Gray
|
Front
|
Behind the left HeadLamp
|
|
G103
|
-
|
Battery
|
Behind the Engine Fuse Block
|
|
G105
|
-
|
Battery
|
On the Cylinder Block
|
|
GX106
|
Black/Gray
|
Engine (DSL/HFV6)
|
Upper the Cylinder Head
|
|
G107
|
-
|
Fuel Injector (HFV6)
|
On the Cylinder Block
|
|
G108
|
-
|
Engine (FAM II)
|
On the Cylinder Block
|
|
G109
|
-
|
Fuel Injector (HFV6)
|
On the Cylinder Block
|
|
G110
|
-
|
Fuel Injector (HFV6)
|
On the Cylinder Block
|
|
G111
|
-
|
Engine (FAM II)
|
On the Cylinder Block
|
|
G112
|
Black/Gray
|
Engine (DSL)
|
On the Cylinder Block
|
|
GX201
|
Black/Gray
|
I/P
|
Behind Steering Column - Lower
|
|
G202
|
-
|
I/P
|
On the I/P Fuse Block braket
|
|
G203
|
-
|
FATC
|
Inside the left instrument panel
|
|
G204
|
-
|
Body
|
Under the left "A" pillar
|
|
GX301
|
Black/Gray
|
Body
|
Under the right seat cushion
|
|
GX401
|
Black/Gray
|
Body
|
Left the luggage compartment
|
|
GX402
|
Black/Gray
|
Body
|
Right the luggage compartment
|
Splice Pack Number
|
Color
|
Wiring Harness
|
Splice Pack Position
|
|
JX103
|
Black
|
Engine (FAM II)
|
Upper the cylinder Head
|
|
JX202
|
Black/Pink
|
I/P
|
Behind Steering Column - Lower
|
|
JX303
|
Black/Brown
|
BODY
|
Inside Front Rocker Panel-LH
|
|
JX305
|
Black
|
BODY
|
Inside Front Rocker Panel-RH
|
|
JX306
|
Black/Blue
|
BODY
|
Inside Front Rocker Panel-RH
|
 |
 |
