6. TCM (TRANSMISSION CONTROL MODULE) : SIRIUS D4
1) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| C401 (8 Pin, White) | Trunk – Body | Inside Right Trunk Side Cover |
| G201 | I.P | Left I.P Fuse Block |
| G401 | Trunk | Center Trunk Lower Back Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

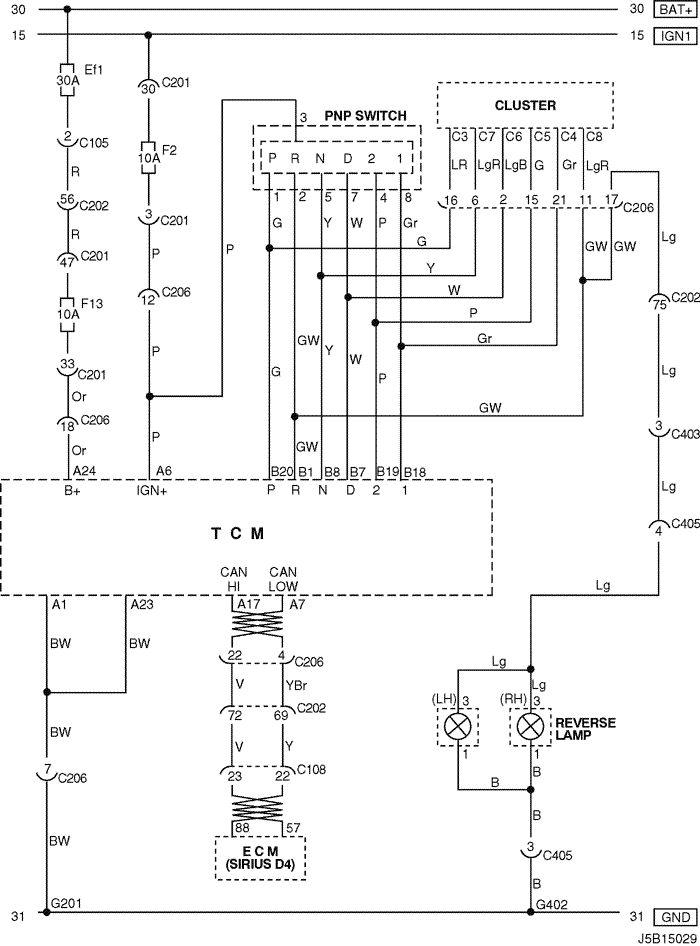

2) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| C401 (6 Pin, White) | Trunk - Body | Inside Right Trunk Side Cover |
| C403 (6 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| G201 | I.P | Left I.P Fuse Block |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |

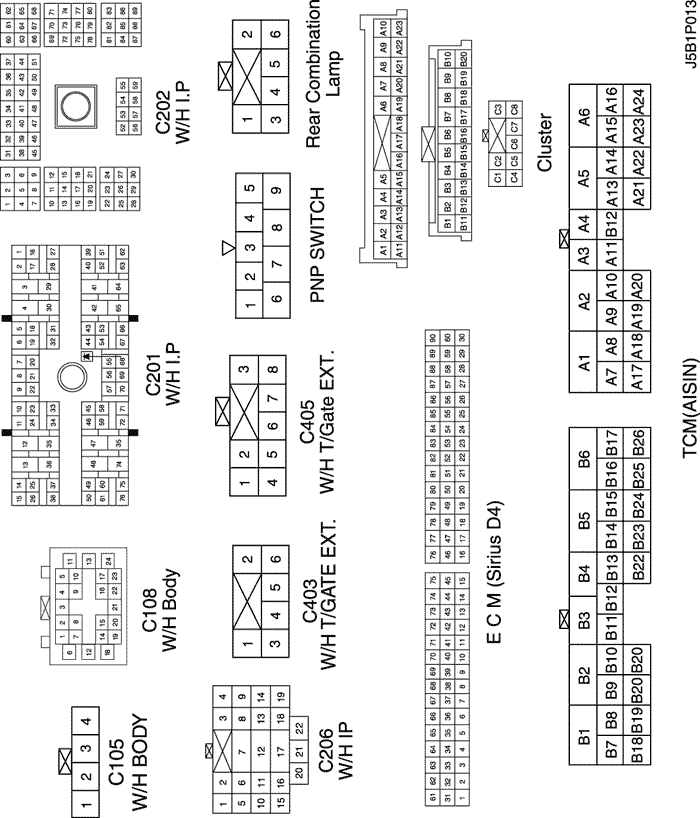

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

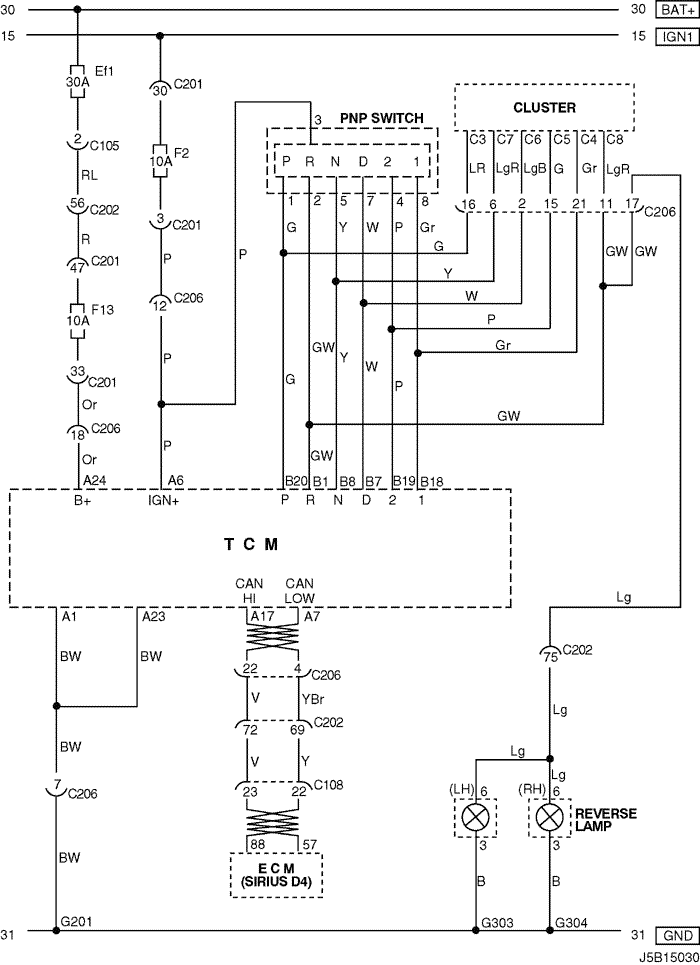

3) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| G201 | I.P | Left I.P Fuse Block |
| G303 | Body | Below Right Rear Combination Lamp |
| G304 | Body | Below Left Rear Combination Lamp |

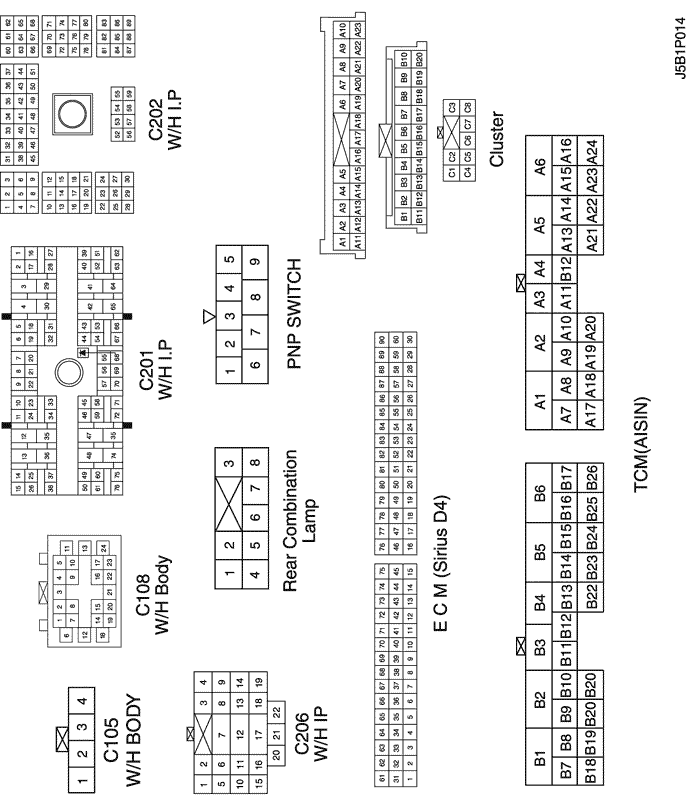

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

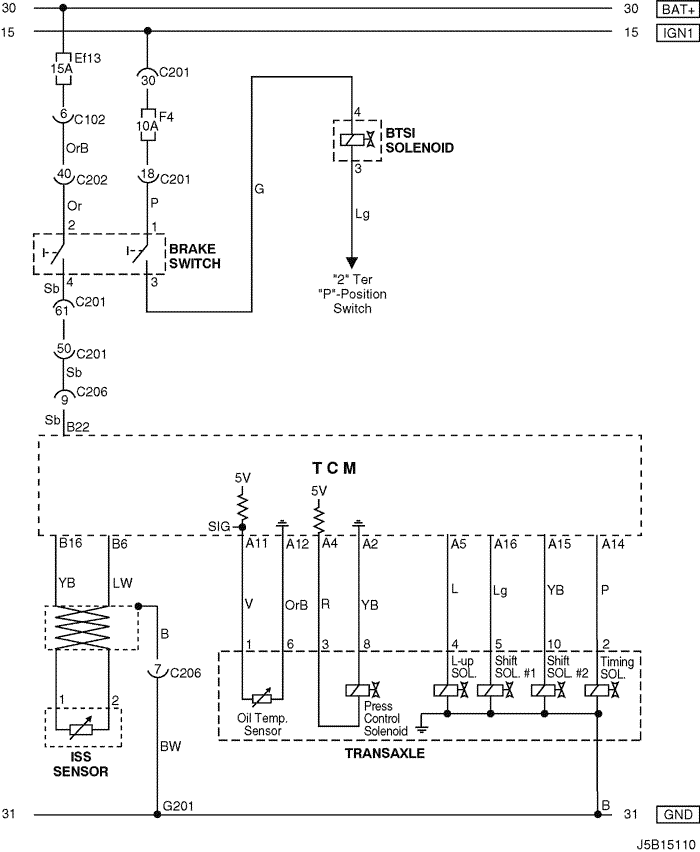

4) BRAKE SWITCH, BTSI SOLENOID, ISS SENSOR & TRANSAXLE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| G201 | I.P | Left I.P Fuse Block |

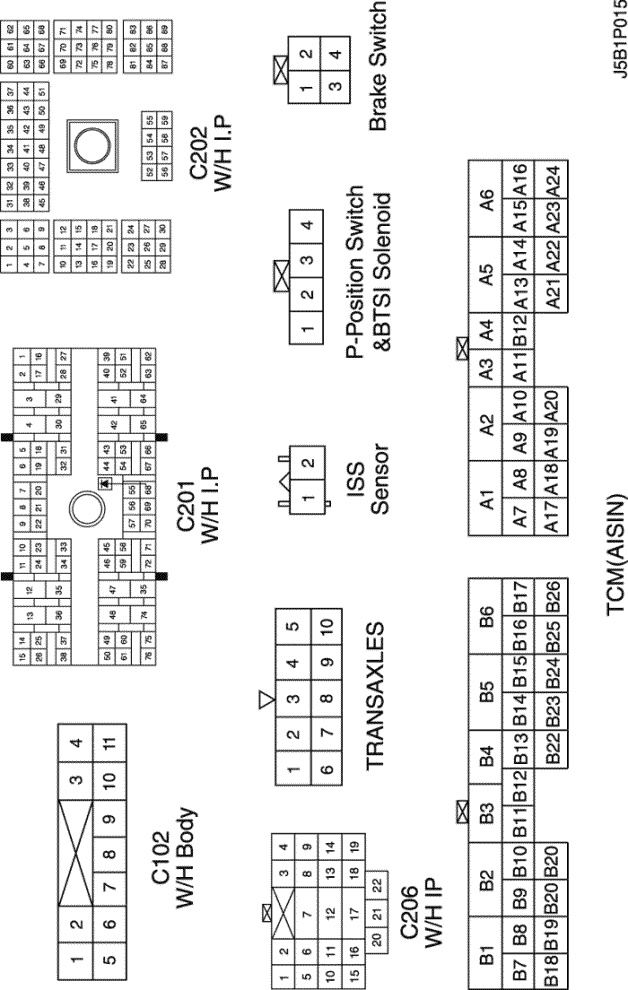

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

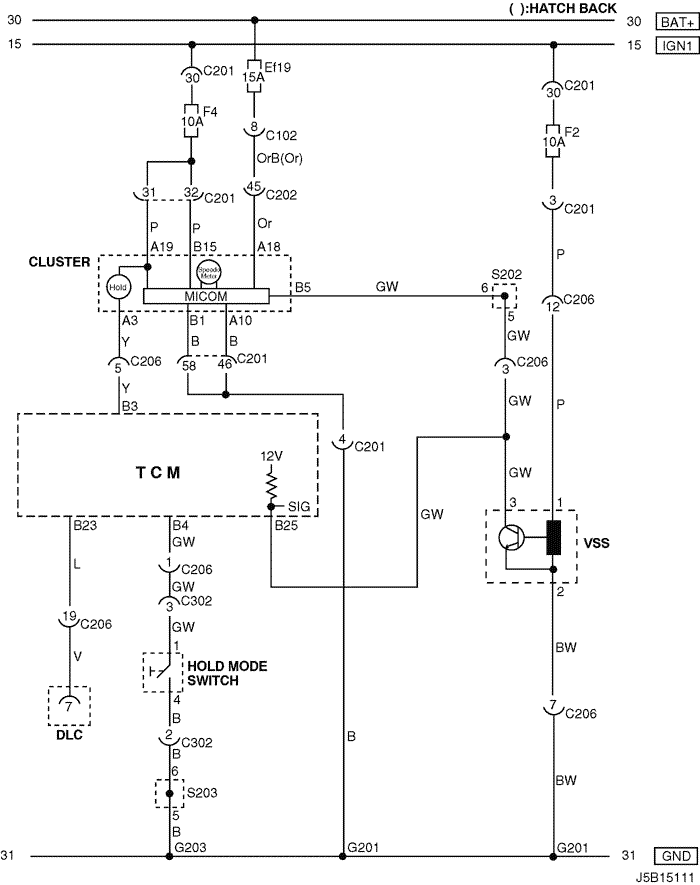

5) HOLD MODE SWITCH, VSS & DLC CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S202 (Black) | I.P | Behind Cluster |
| S203 (Red) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |

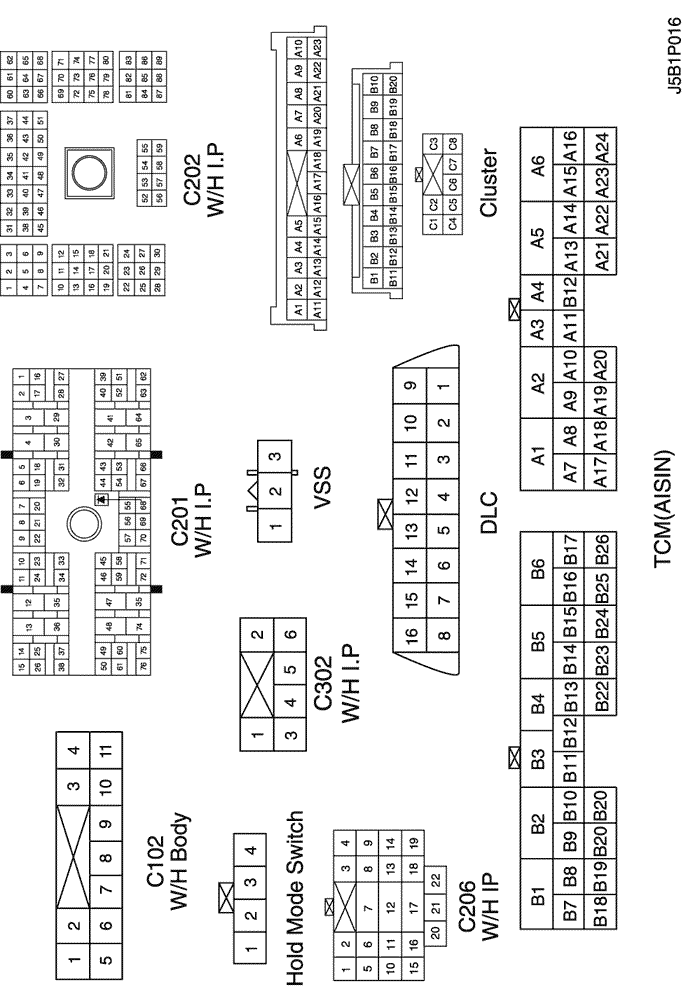

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
S203
sm
