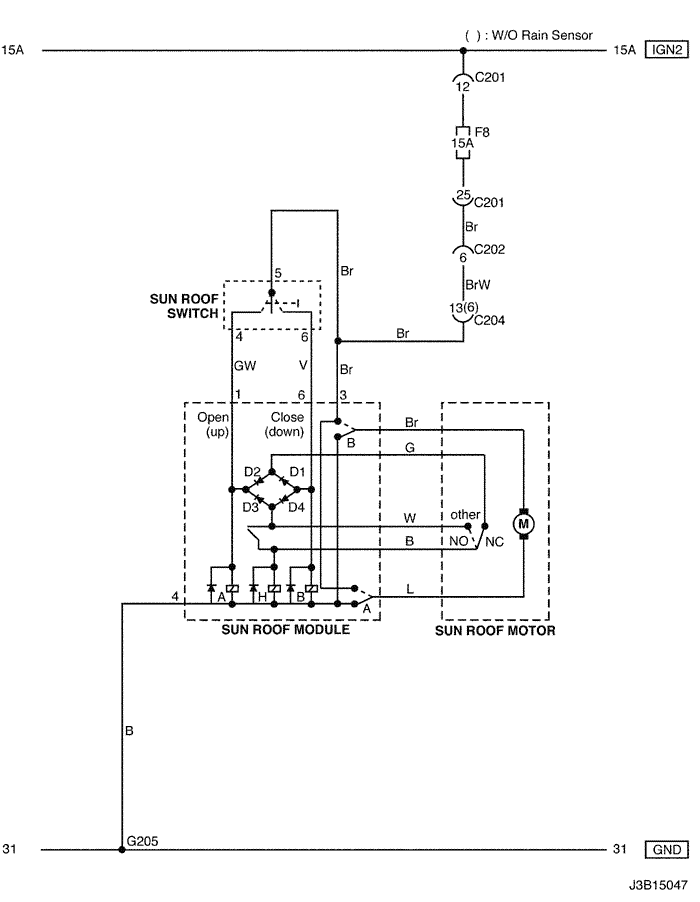

29. SUN ROOF CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C204 (8 Pin, White) Roof – Body (W/O Rain Sensor) Left CO-Driver Leg Room
C204 (8 Pin, White) Roof – Body (W/O Rain Sensor) Left CO-Driver Leg Room
G205 Roof Inside CO-Driver A Pillar

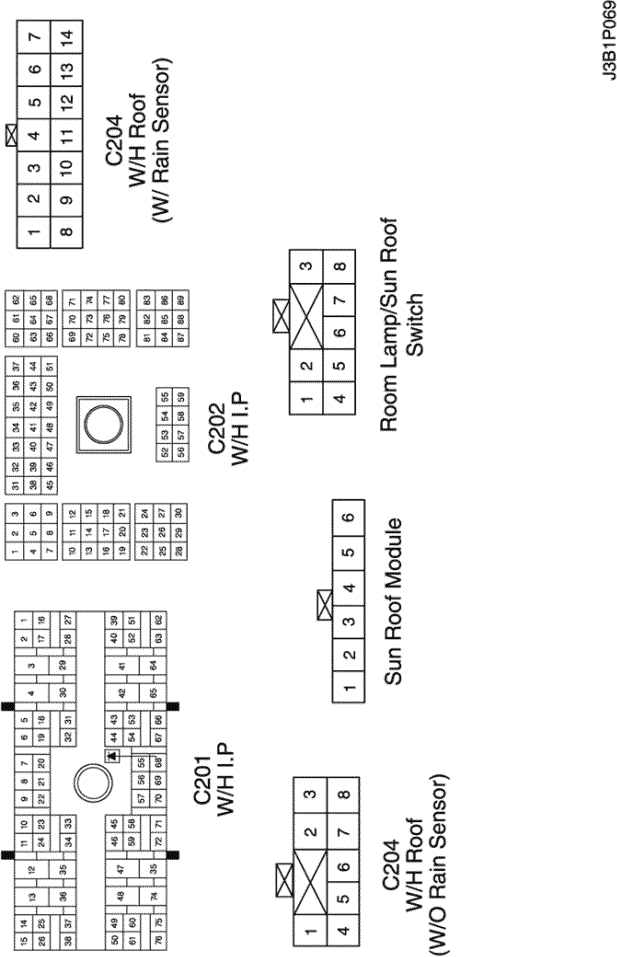

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


sm
