24. CENTRAL DOOR LOCKING SYSTEM CIRCUIT

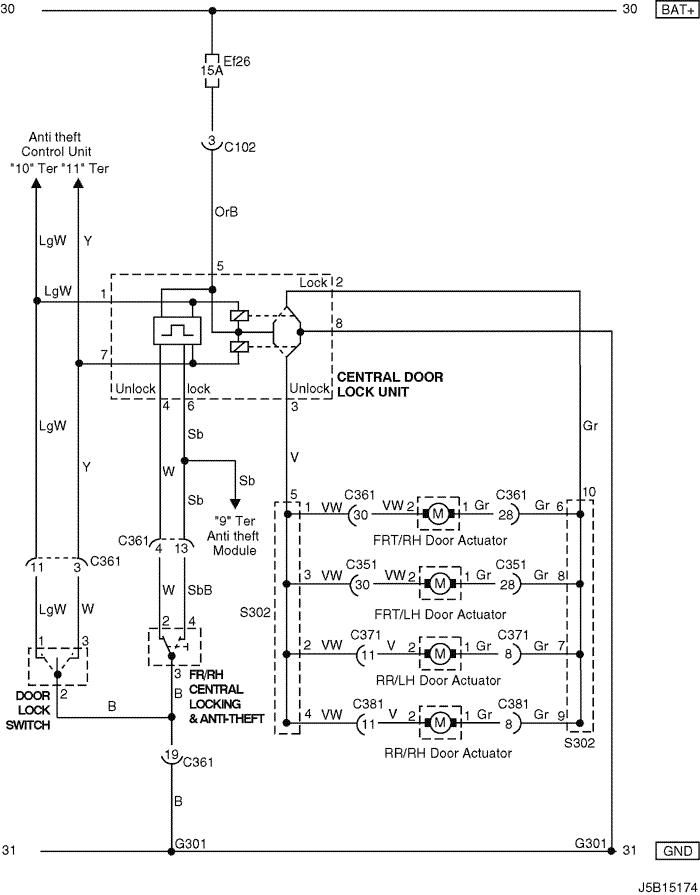

1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C351 (33 Pin, Gray) | Body – Front Light Door | Under CO-Driver A Pillar |
| C361 (33 Pin, Gray) | Body – Front Right Door | Under Driver A Pillar |
| C371 (12 Pin, White) | Body – Rear Light Door | Under Left B Pillar |
| C381 (12 Pin, White) | Body – Rear Right Door | Under Right B Pillar |
| S302 (Brown) | Body | Left CO-Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S302

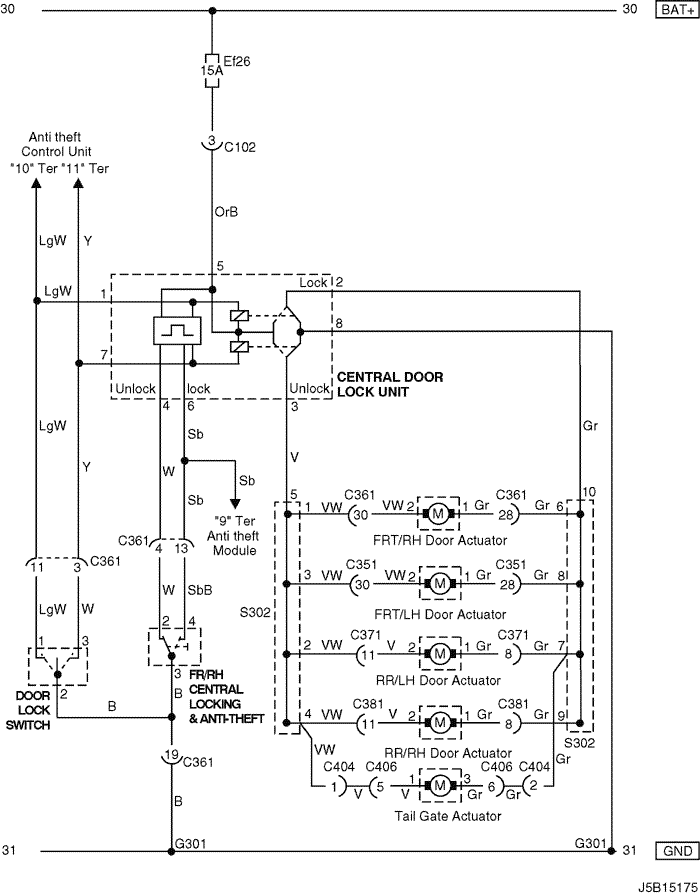

2) HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C351 (33 Pin, Gray) | Body – Front Light Door | Under CO-Driver A Pillar |
| C361 (33 Pin, Gray) | Body – Front Right Door | Under Driver A Pillar |
| C371 (12 Pin, White) | Body – Rear Light Door | Under Left B Pillar |
| C381 (12 Pin, White) | Body – Rear Right Door | Under Right B Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C406 (6 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| S302 (Brown) | Body | Left CO-Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S302

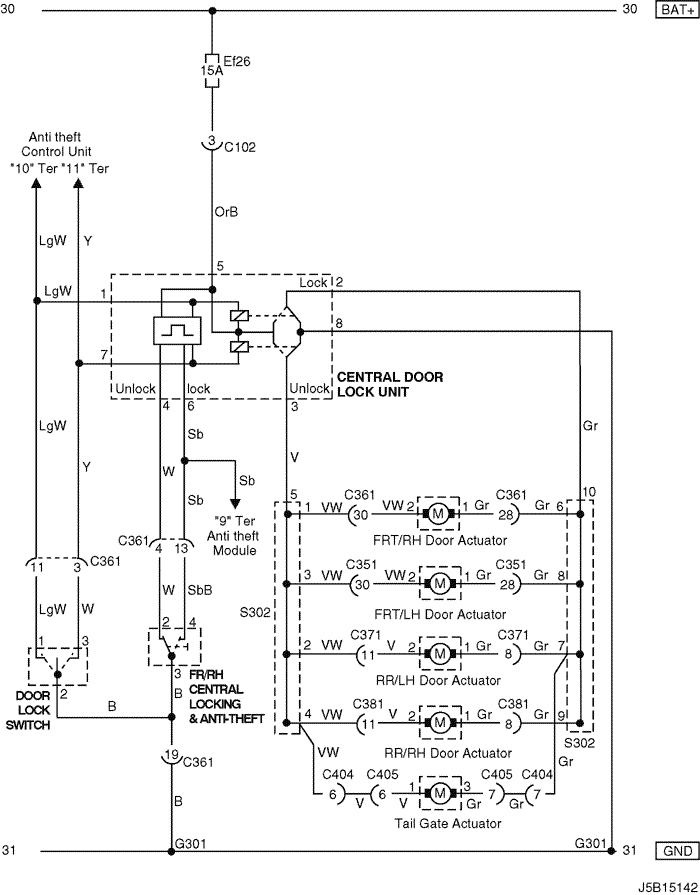

3) STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C351 (33 Pin, Gray) | Body – Front Light Door | Under CO-Driver A Pillar |
| C361 (33 Pin, Gray) | Body – Front Right Door | Under Driver A Pillar |
| C371 (12 Pin, White) | Body – Rear Light Door | Under Left B Pillar |
| C381 (12 Pin, White) | Body – Rear Right Door | Under Right B Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| S302 (Brown) | Body | Left CO-Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S302
