23. POWER WINDOW CIRCUIT

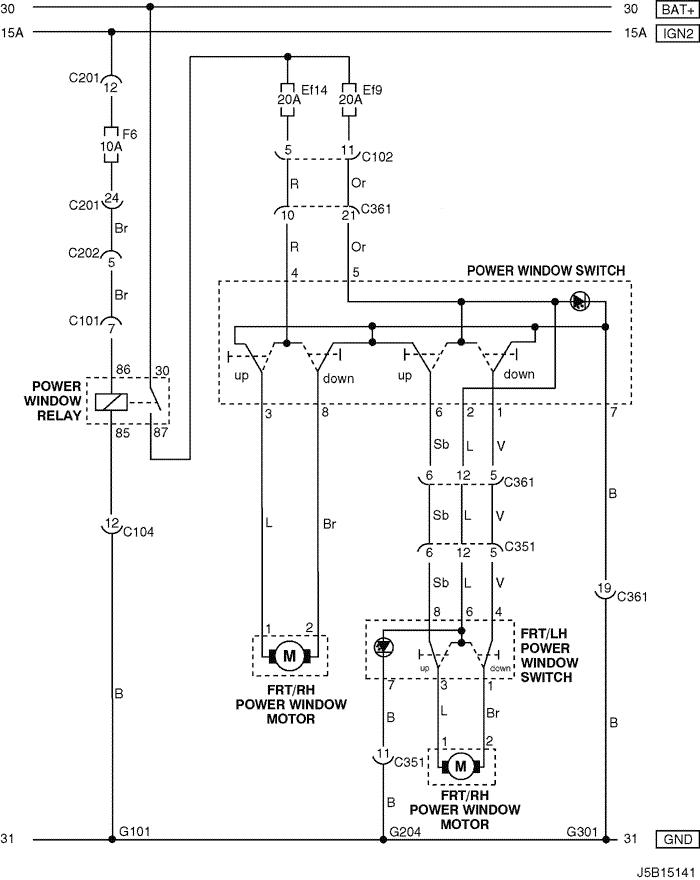

1) ONLY FRONT POWER WINDOW CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C107 (2 Pin, White) | ABS – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C351 (33 Pin, Gray) | Body – Front Light Door | Under CO-Driver A Pillar |
| C361 (33 Pin, Gray) | Body – Front Right Door | Under Driver A Pillar |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

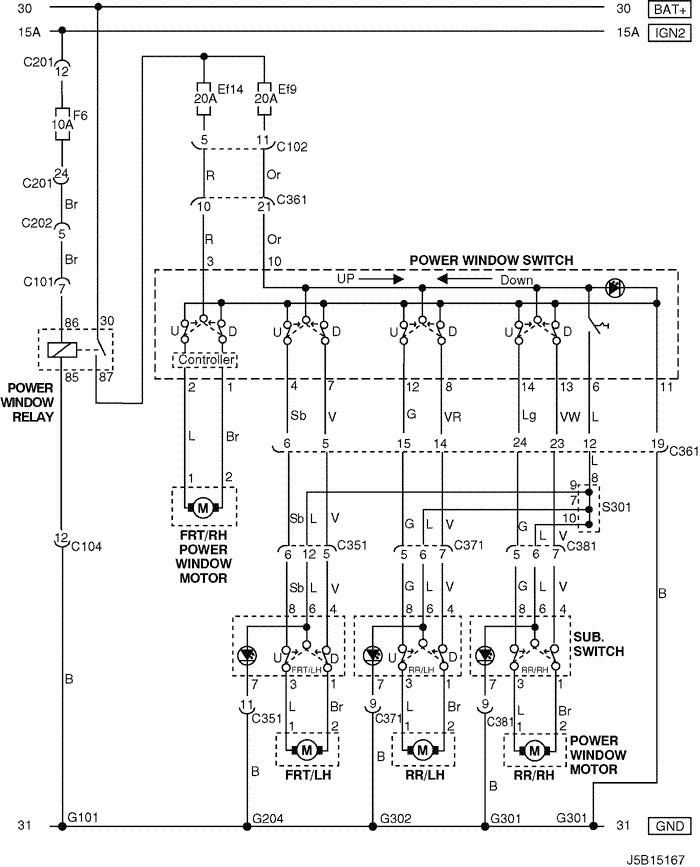

2) FRONT & REAR POWER WINDOW CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C351 (33 Pin, Gray) | Body – Front Light Door | Under CO-Driver A Pillar |
| C361 (33 Pin, Gray) | Body – Front Right Door | Under Driver A Pillar |
| C371 (12 Pin, White) | Body – Rear Light Door | Under Left B Pillar |
| C381 (12 Pin, White) | Body – Rear Right Door | Under Right B Pillar |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
| G302 | Body | Below Left C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)
