19. WIPER CIRCUIT
1) W/O RAIN SENSOR & AIR CONDITIONER : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C113 (16 Pin, Black) | Body – Front | Behind ECM Bracket |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

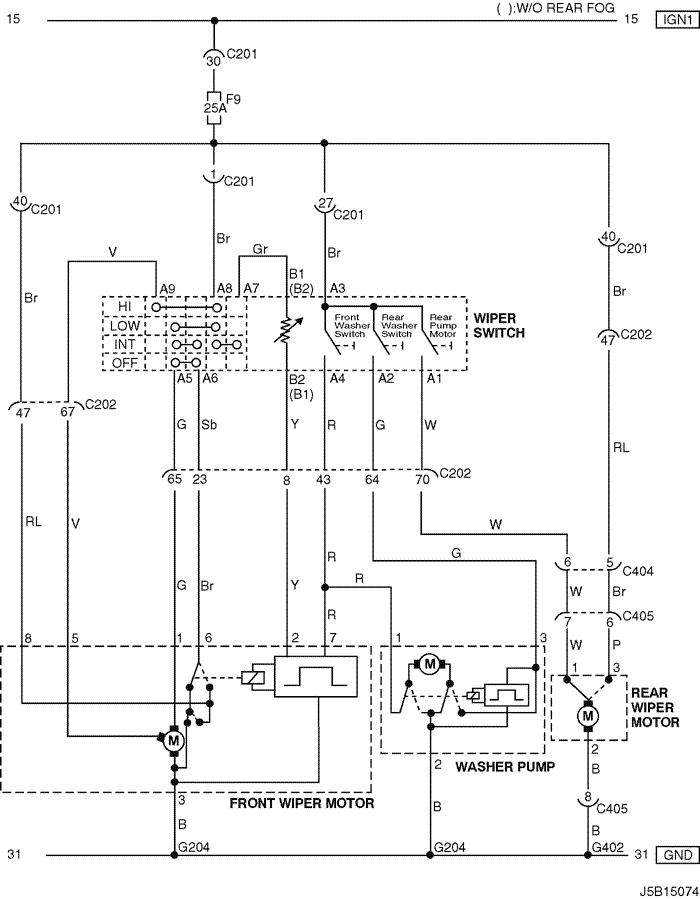

2) W/O RAIN SENSOR & AIR CONDITIONER : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| G204 | Body | Below Left CO-Driver Leg Room |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

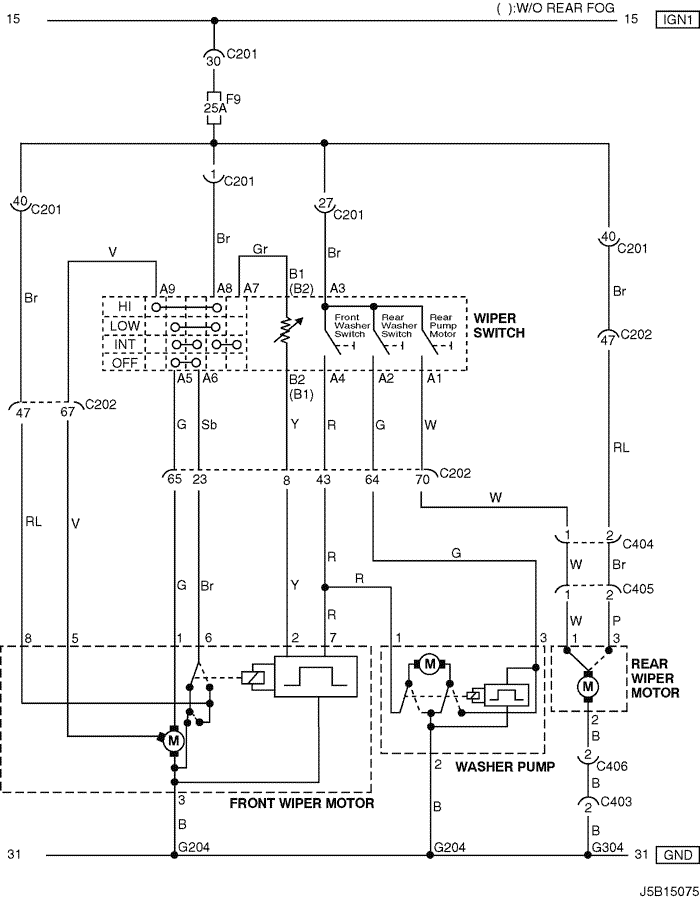

3) W/O RAIN SENSOR & AIR CONDITIONER : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C403 (4 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| C406 (4 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| G204 | Body | Below Left CO-Driver Leg Room |
| G304 | Body | Below Left Rear Combination Lamp |

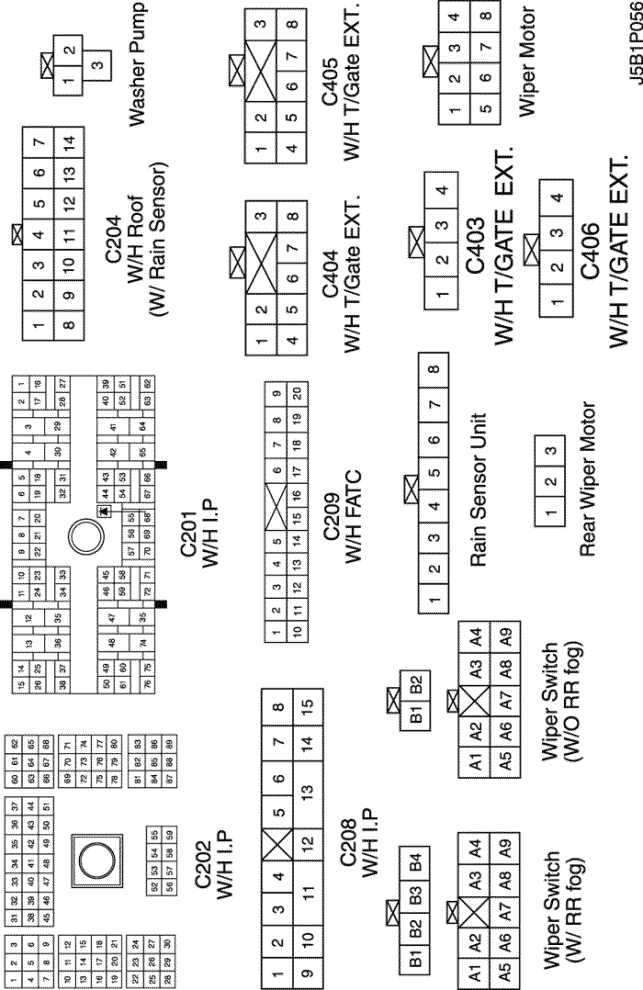

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

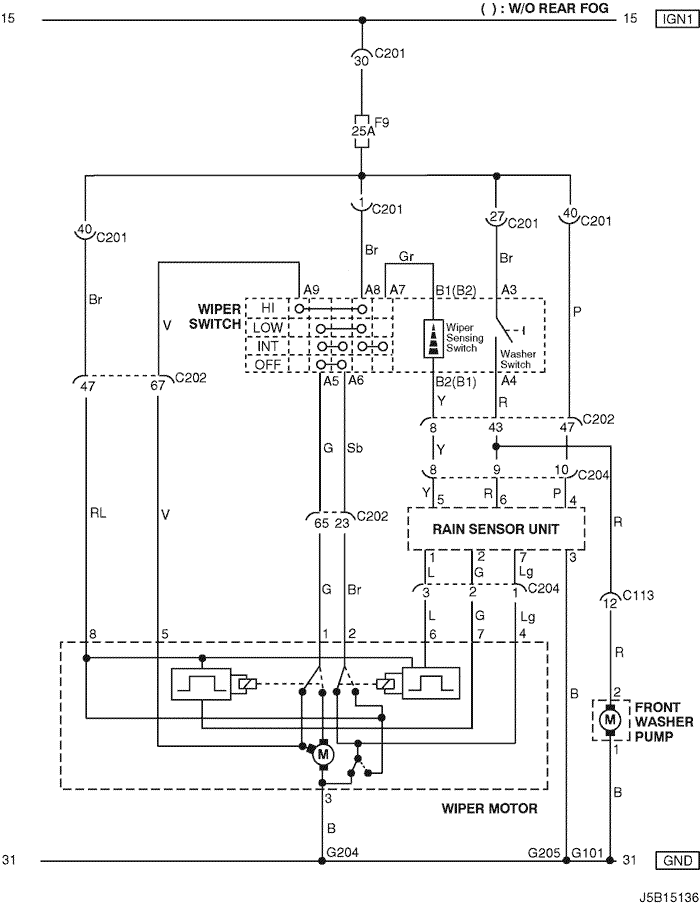

4) W/ RAIN SENSOR & AIR CONDITIONER : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C113 (16 Pin, Black) | Body – Front | Behind ECM Bracket |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

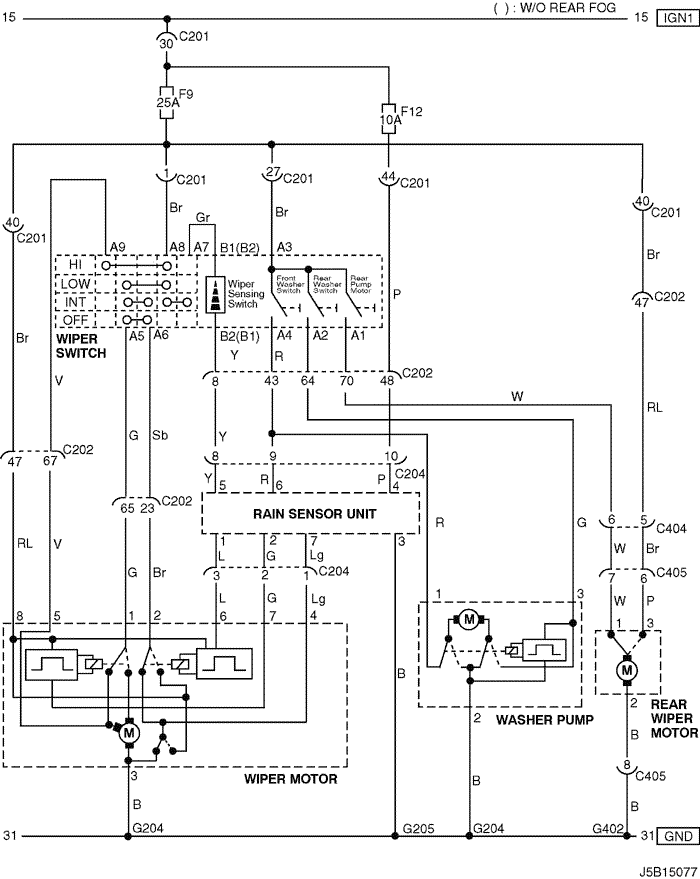

5) W/ RAIN SENSOR & AIR CONDITIONER : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |

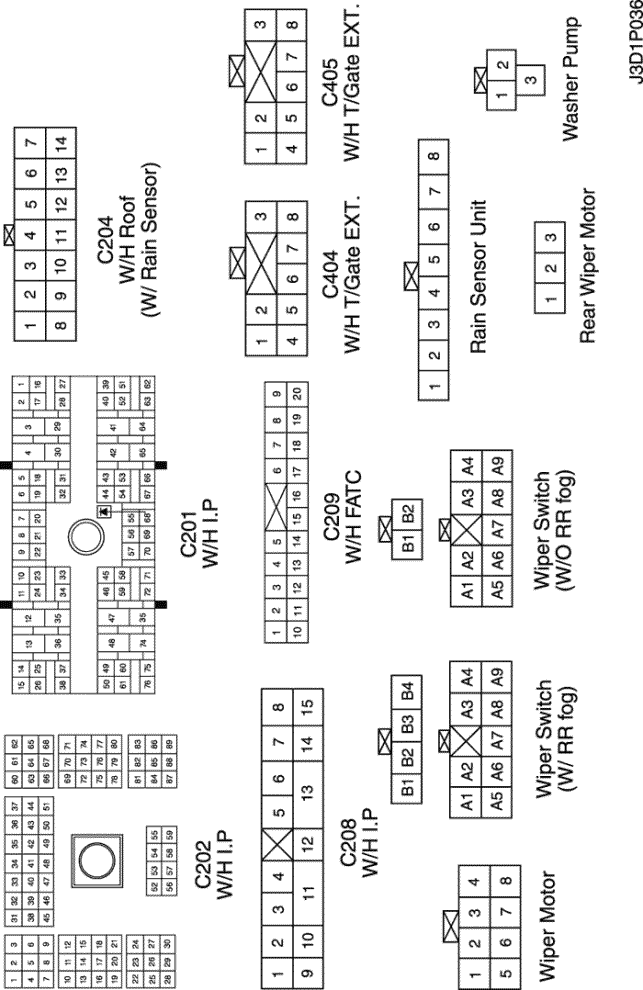

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

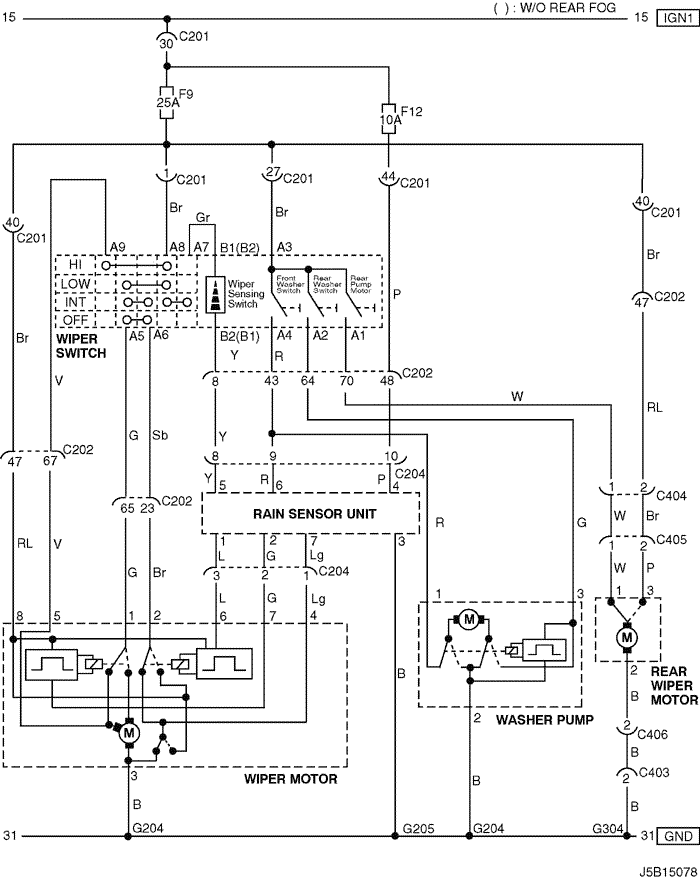

6) W/ RAIN SENSOR & AIR CONDITIONER : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C403 (4 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| C406 (4 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
| G304 | Body | Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

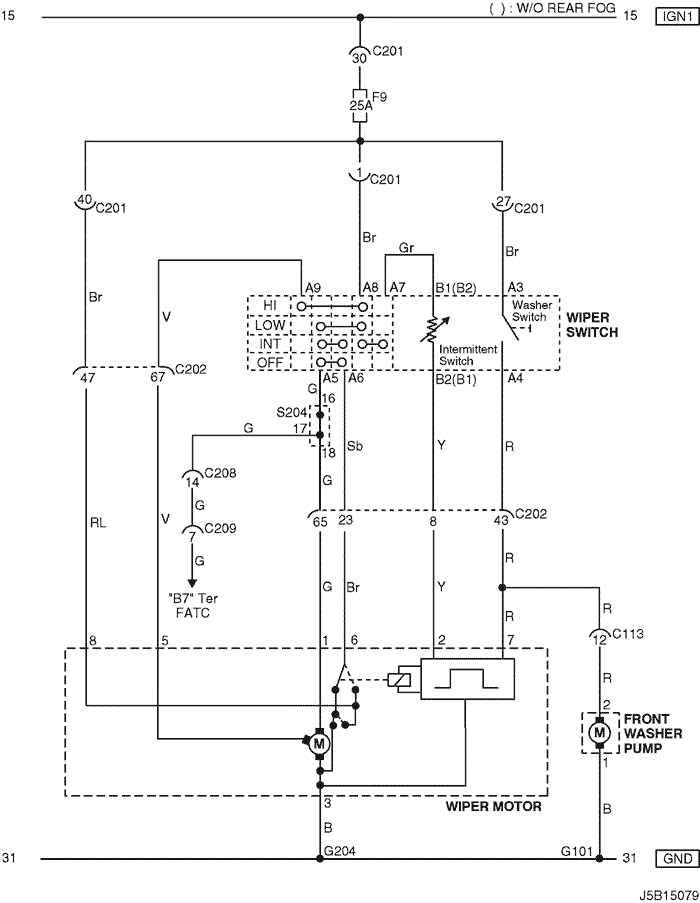

7) W/O RAIN SENSOR & FATC : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C113 (16 Pin, Black) | Body – Front | Behind ECM Bracket |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |

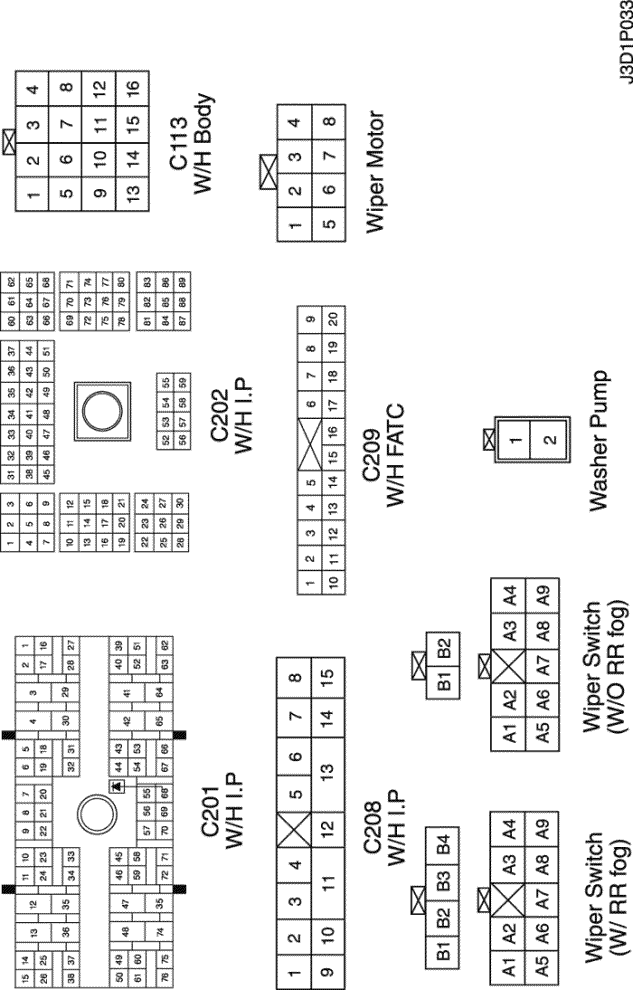

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204

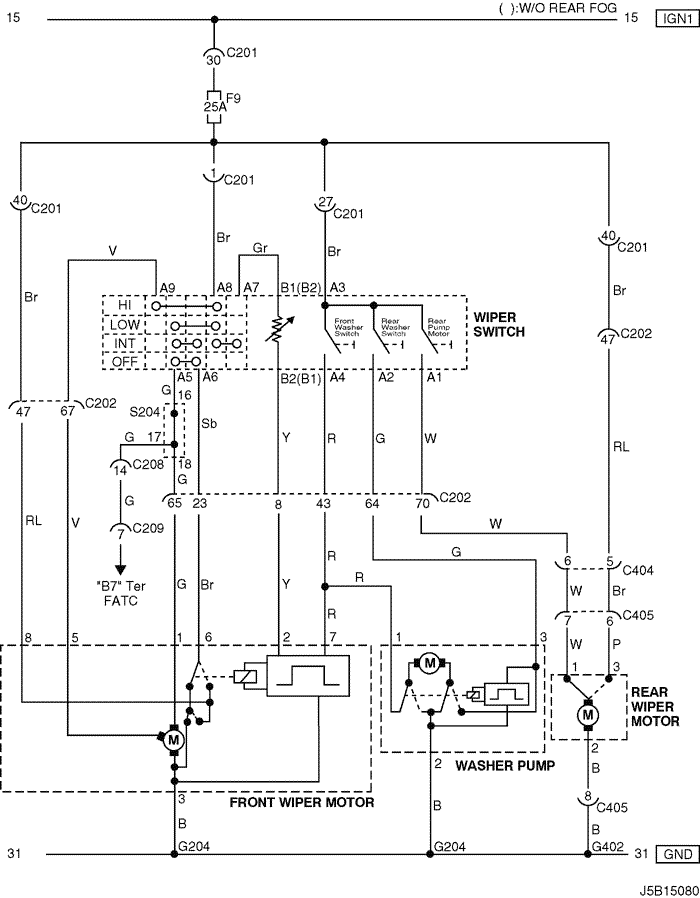

8) W/O RAIN SENSOR & FATC : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G204 | Body | Below Left CO-Driver Leg Room |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |

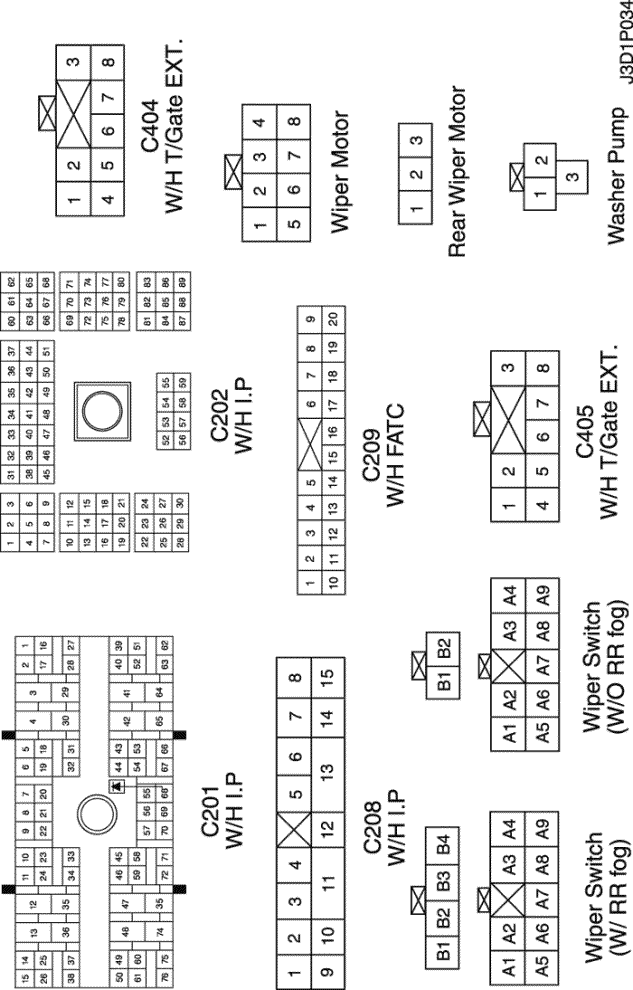

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204

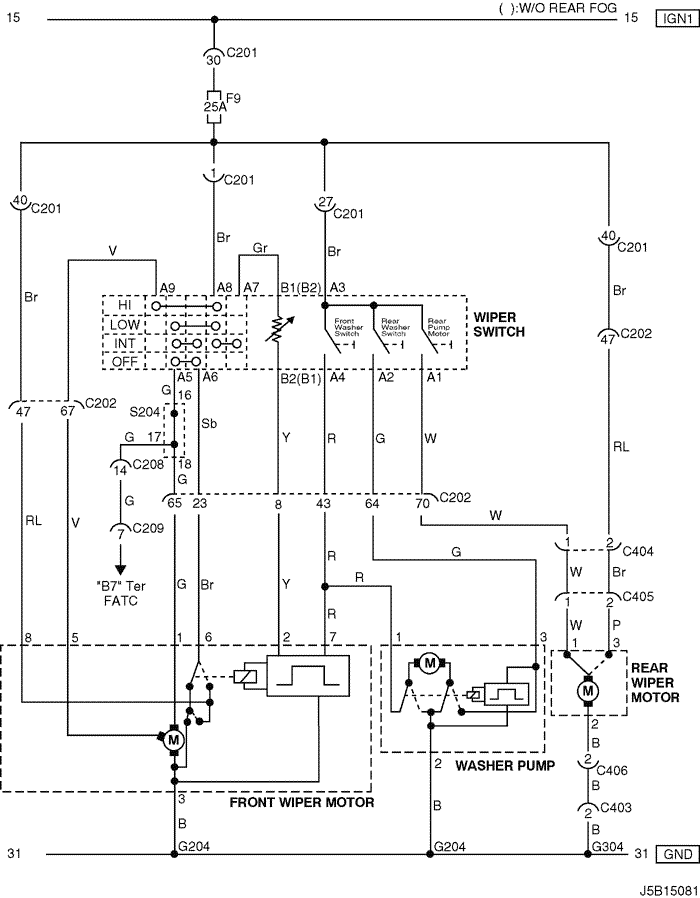

9) W/O RAIN SENSOR & FATC : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C403 (4 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| C406 (4 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G204 | Body | Below Left CO-Driver Leg Room |
| G304 | Body | Below Left Rear Combination Lamp |

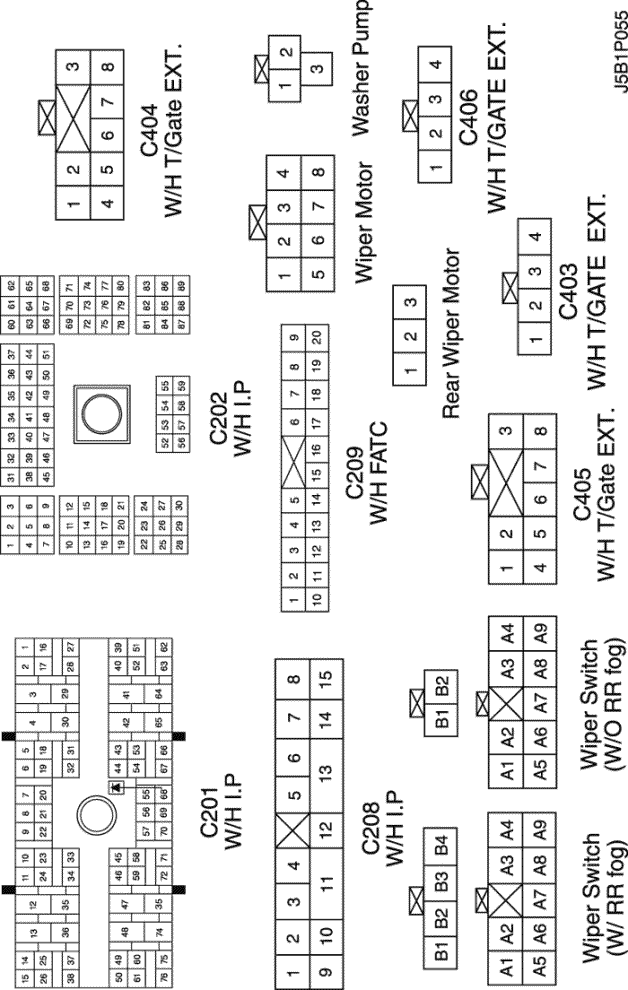

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204

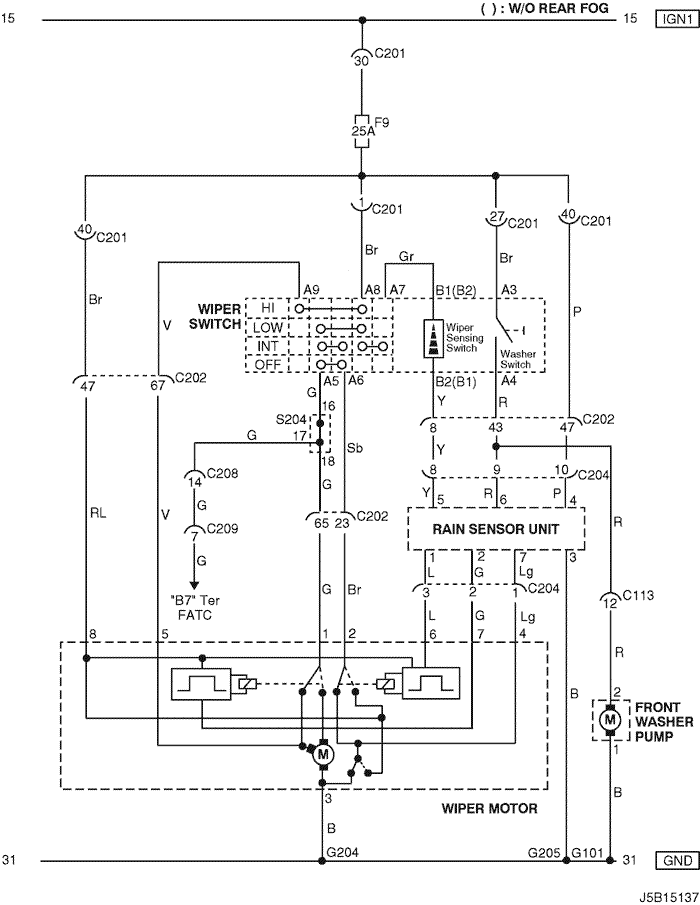

10) W/ RAIN SENSOR & FATC : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C113 (16 Pin, Black) | Body – Front | Behind ECM Bracket |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G101 | Front | Behind Left Head Lamp |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |

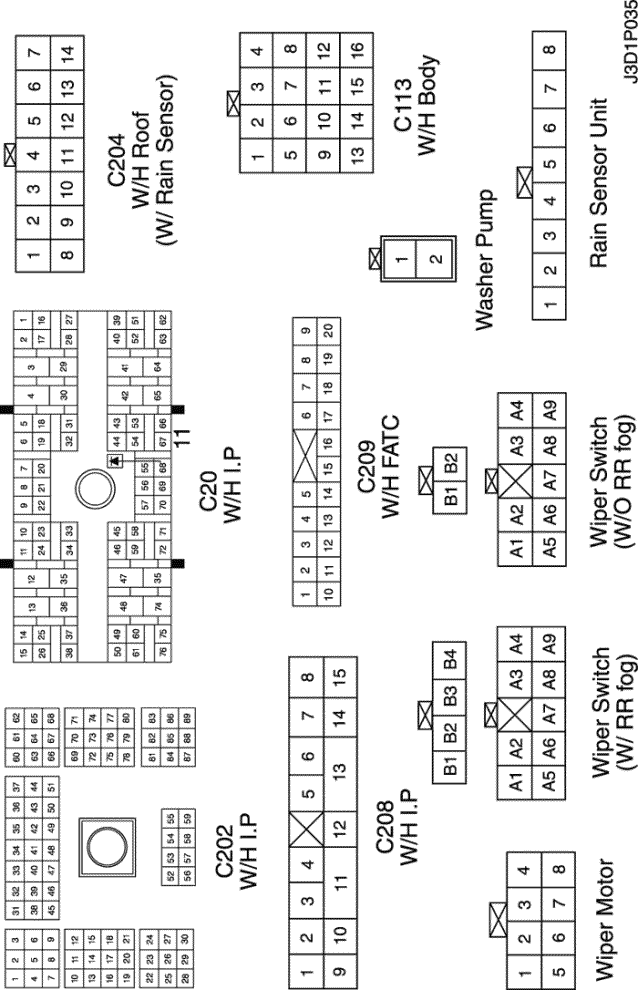

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204
11) W/ RAIN SENSOR & FATC : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204

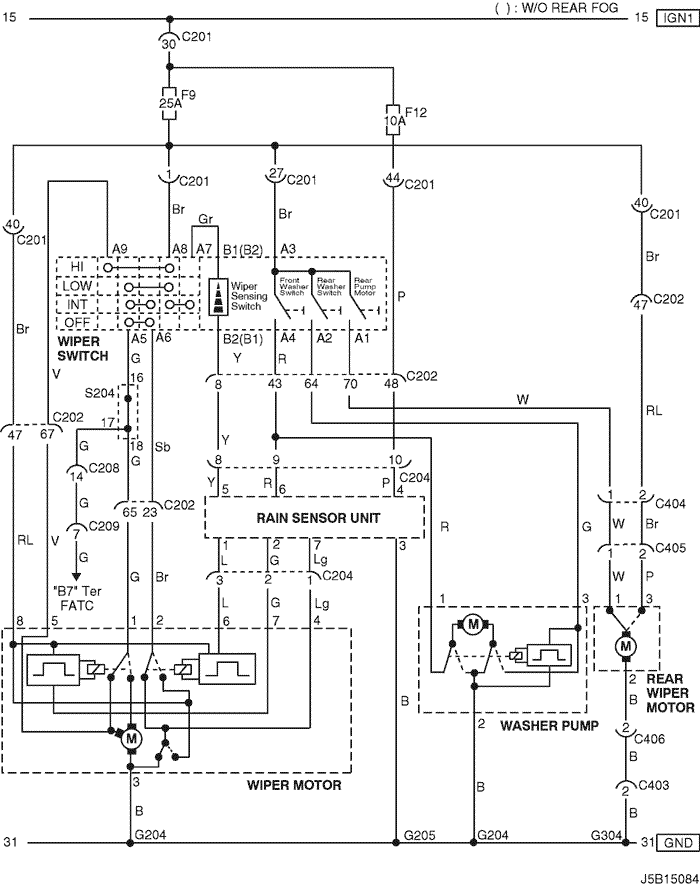

12) W/ RAIN SENSOR & FATC : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C403 (4 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| C406 (4 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G204 | Body | Below Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
| G304 | Body | Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S204
