16. LAMP (MAP & ROOM) CIRCUIT

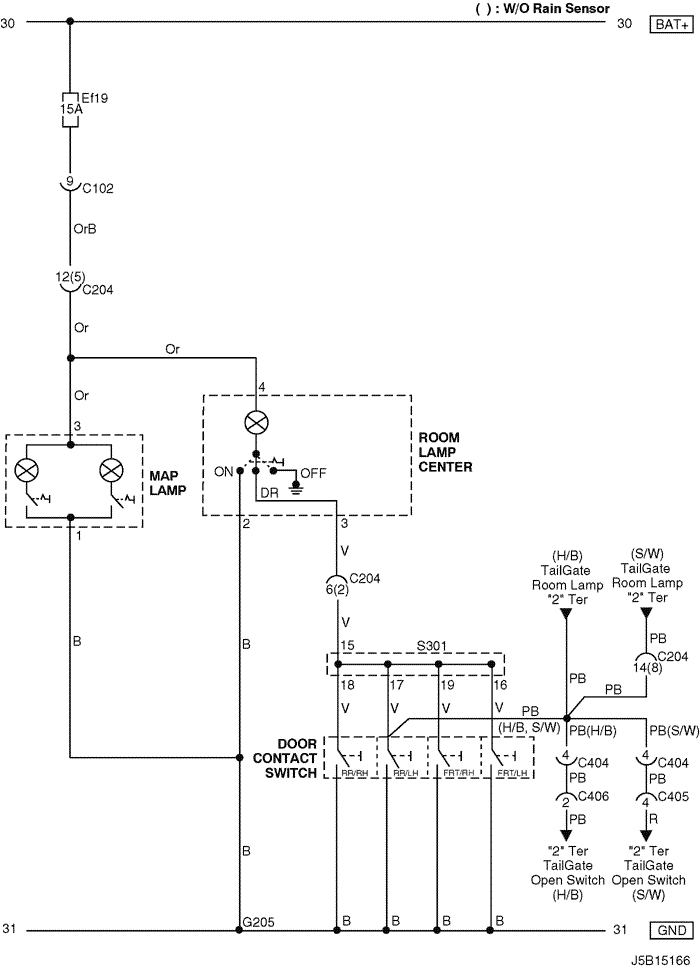

1) W/O SUN ROOF & W/ DECAY
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| C406 (6 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)

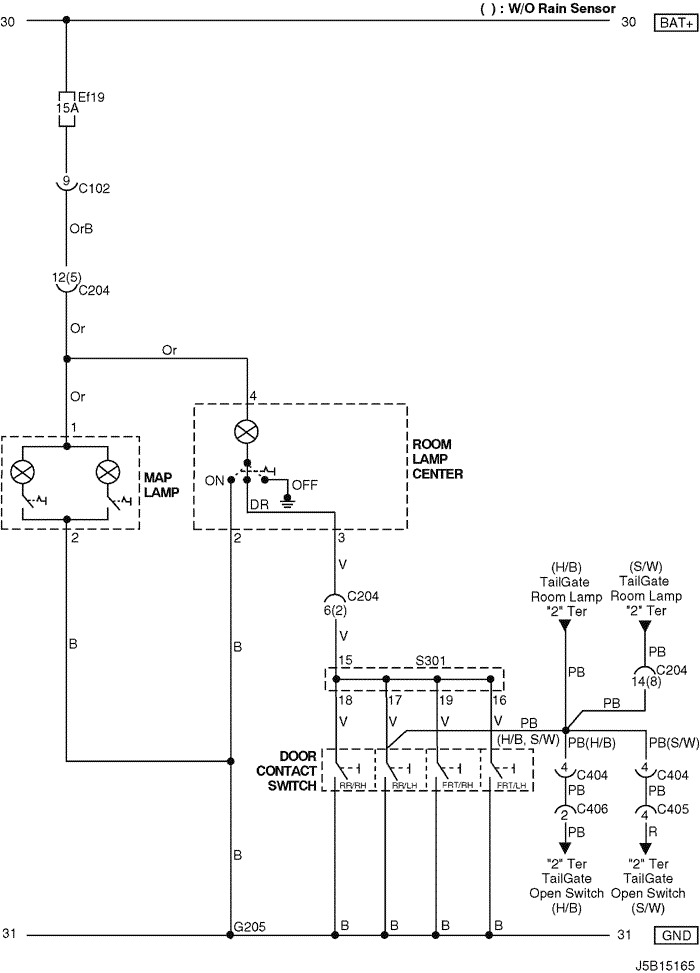

2) W/ SUN ROOF & W/ DECAY
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| C406 (6 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)

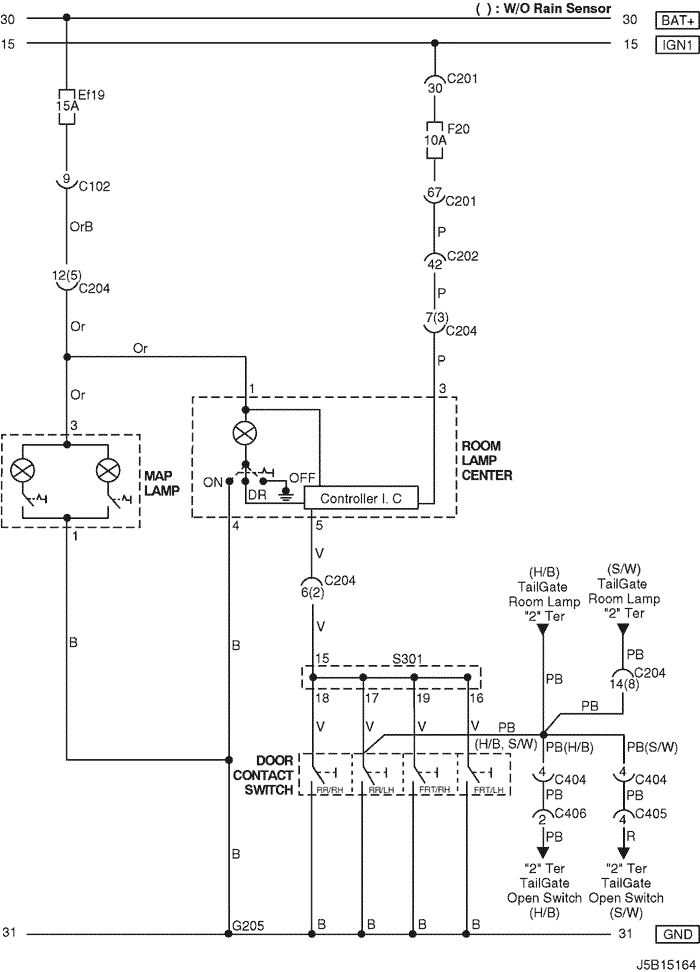

3) W/O SUN ROOF & W/O DECAY
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| C406 (6 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)

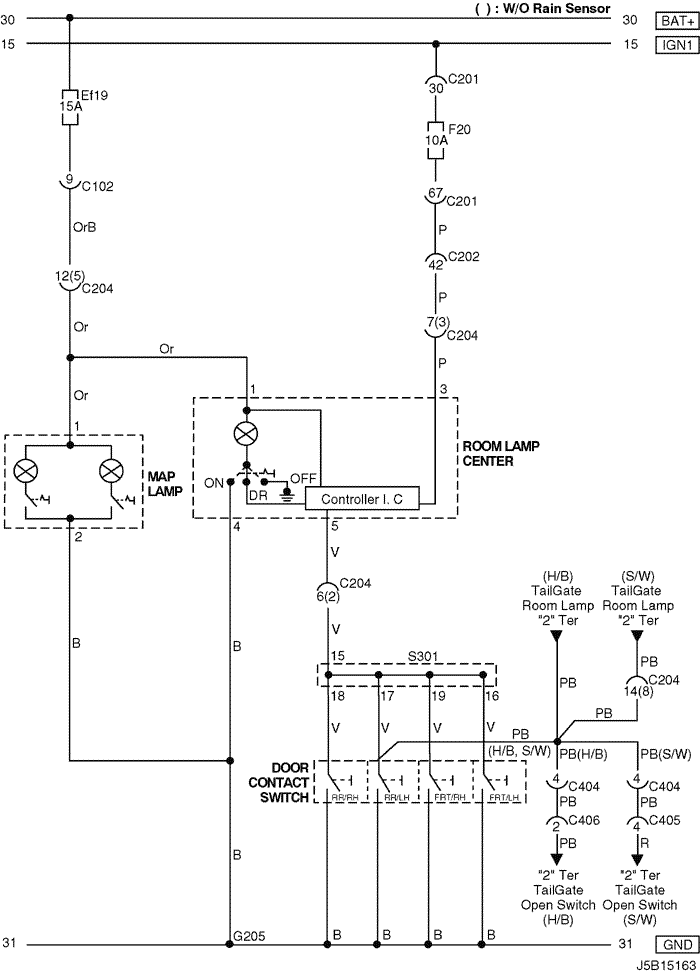

4) W/ SUN ROOF & W/O DECAY
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (14 Pin, White) | Roof – Body (W/ Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C404 (8 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| C406 (6 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G205 | Roof | Inside CO-Driver A Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)
