15.TRUNK/TAIL GATE OPEN SWITCH, TRUNK LATCH SWITCH, TRUNK ROOM LAMP & HORN CIRCUIT

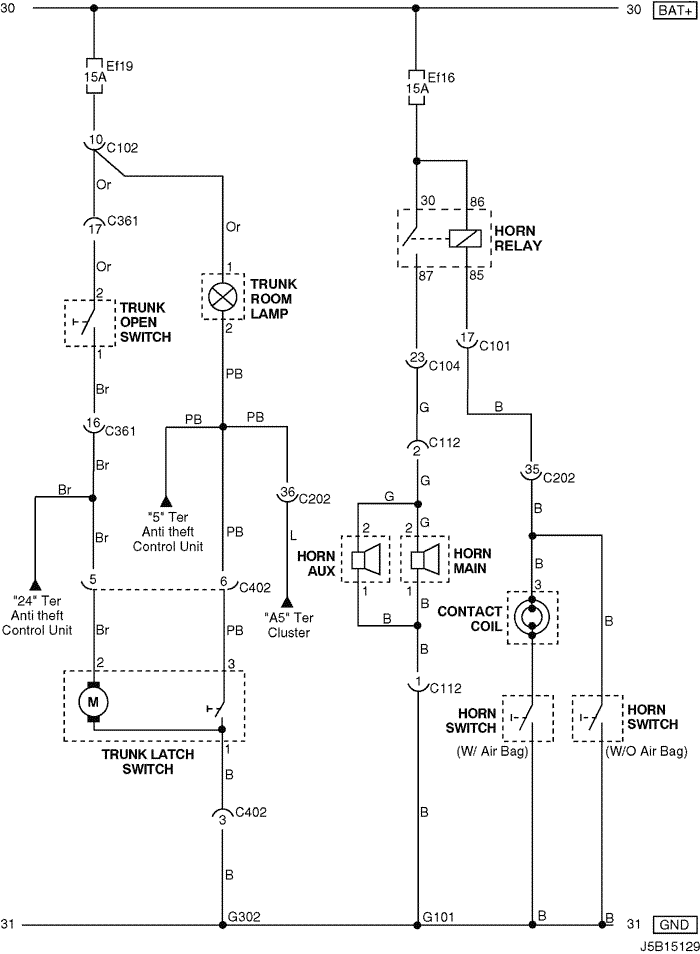

1) DUAL HORN: NOTCH BACK

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C112 (2 Pin, Black) Front – Horn Center Cross Member Panel
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C361 (33 Pin, Gray) Body – Front Right Door Under Driver A Pillar
C402 (8 Pin, White) Trunk LID – Body Inside Right Trunk Side Cover
G101 Front Behind Left Head Lamp
G302 Body Below Left C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

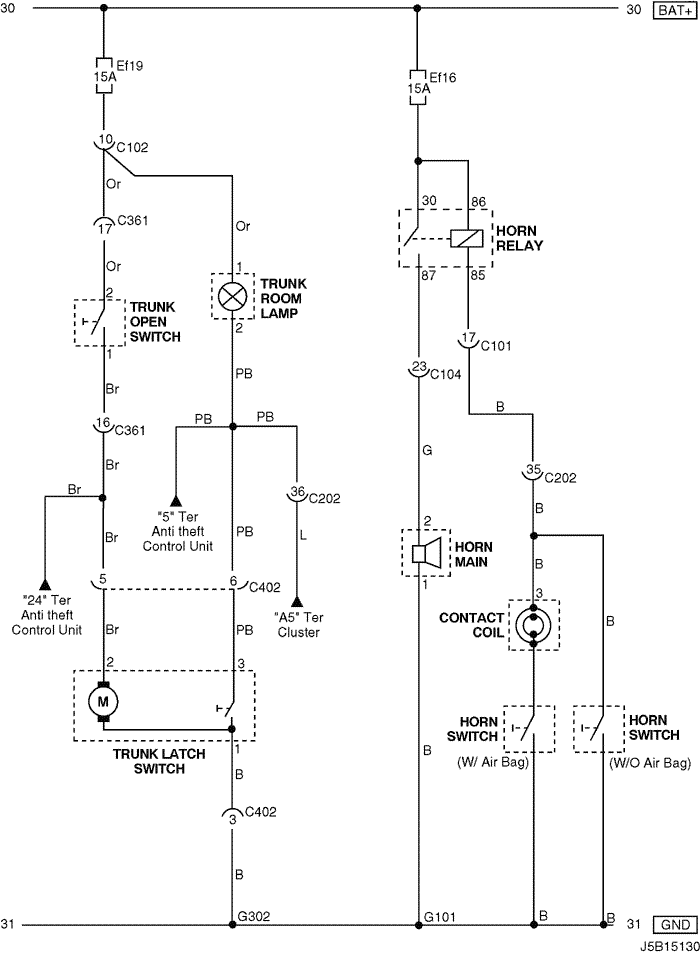

2) SINGLE HORN: NOTCH BACK

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C361 (33 Pin, Gray) Body – Front Right Door Under Driver A Pillar
C402 (8 Pin, White) Trunk LID – Body Inside Right Trunk Side Cover
G101 Front Behind Left Head Lamp
G302 Body Below Left C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


3) DUAL HORN: HATCH BACK

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C112 (2 Pin, Black) Front – Horn Center Cross Member Panel
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C204 (8 Pin, White) Roof - Body (W/O Rain Sensor) Left CO-Driver Leg Room
C204 (14 Pin, White) Roof - Body (W/ Rain Sensor) Left CO-Driver Leg Room
C404 (8 Pin, White) T/Gate. EXT. – Body Inside Left C Pillar
C405 (8 Pin, White) T/Gate. EXT. – T/Gate Beside Left Rear Wiper Motor
C406 (6 Pin, White) T/Gate. EXT. – T/Gate Beside Left Rear Wiper Motor
S301 (Blue) Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G402 T/Gate. EXT Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S301

Display graphicTranslations of text in graphics


4) SINGLE HORN: HATCH BACK

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C204 (8 Pin, White) Roof - Body (W/O Rain Sensor) Left CO-Driver Leg Room
C204 (14 Pin, White) Roof - Body (W/ Rain Sensor) Left CO-Driver Leg Room
C404 (8 Pin, White) T/Gate. EXT. – Body Inside Left C Pillar
C405 (8 Pin, White) T/Gate. EXT. – T/Gate Beside Left Rear Wiper Motor
C406 (6 Pin, White) T/Gate. EXT. – T/Gate Beside Left Rear Wiper Motor
S301 (Blue) Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G402 T/Gate. EXT Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S301

Display graphicTranslations of text in graphics


5) DUAL HORN: STATION WAGON

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C112 (2 Pin, Black) Front – Horn Center Cross Member Panel
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C204 (8 Pin, White) Roof - Body (W/O Rain Sensor) Left CO-Driver Leg Room
C204 (14 Pin, White) Roof - Body (W/ Rain Sensor) Left CO-Driver Leg Room
C403 (4 Pin, White) T/Gate. EXT. - Body Inside Left C Pillar
C404 (8 Pin, White) T/Gate. EXT. - Body Inside Left C Pillar
C405 (8 Pin, White) T/Gate. EXT. - T/Gate Beside Left Rear Wiper Motor
C406 (4 Pin, White) T/Gate. EXT. - T/Gate Beside Left Rear Wiper Motor
S301 (Blue) Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G304 Body Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S301

Display graphicTranslations of text in graphics


6) SINGLE HORN: STATION WAGON

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C204 (8 Pin, White) Roof - Body (W/O Rain Sensor) Left CO-Driver Leg Room
C204 (14 Pin, White) Roof - Body (W/ Rain Sensor) Left CO-Driver Leg Room
C403 (4 Pin, White) T/Gate. EXT. - Body Inside Left C Pillar
C404 (8 Pin, White) T/Gate. EXT. - Body Inside Left C Pillar
C405 (8 Pin, White) T/Gate. EXT. - T/Gate Beside Left Rear Wiper Motor
C406 (4 Pin, White) T/Gate. EXT. - T/Gate Beside Left Rear Wiper Motor
S301 (Blue) Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G304 Body Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

S301

Display graphicTranslations of text in graphics
