SECTION 5

ELECTRICAL WIRING DIAGRAMS



1. STARTING & CHARGING SYSTEM

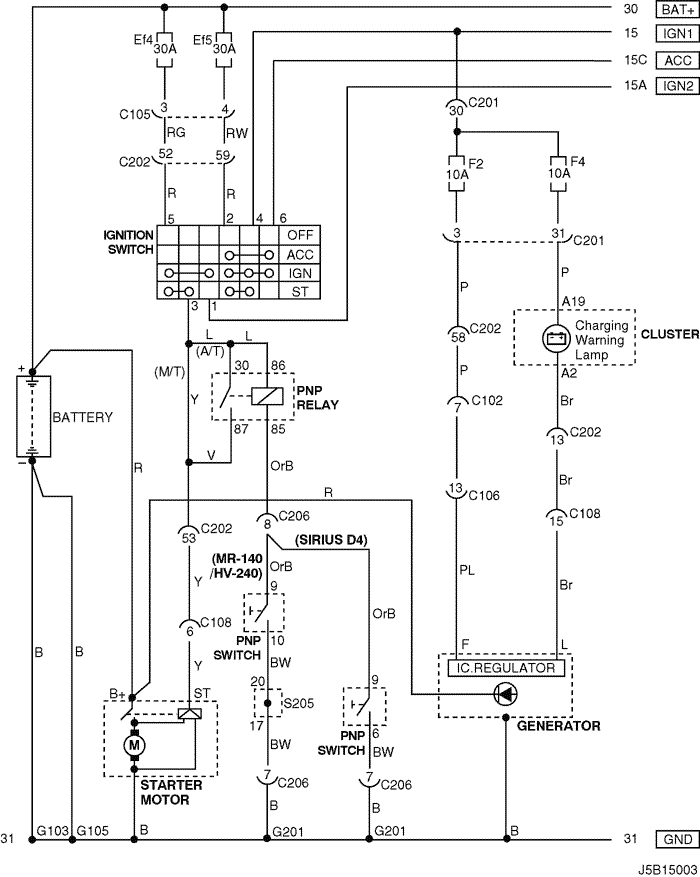

1) BATTERY, IGNITION SWITCH, STARTER MOTOR, GENERATOR & PNP SWITCH CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C105 (4 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C206 (22 Pin, White) I.P – TCM Upper Driver Leg Room
S205 (Orange) TCM Upper Driver Leg Room
G103 Battery Left Battery
G105 Battery Under Start Motor
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

MR-140/HV-240

Display graphicTranslations of text in graphics


Sirius D4

Display graphicTranslations of text in graphics


d. SPLICE PACK

S205 : MR-140/HV-240

Display graphicTranslations of text in graphics


sm
