3. ECM (ENGINE CONTROL MODULE) : HV - 240

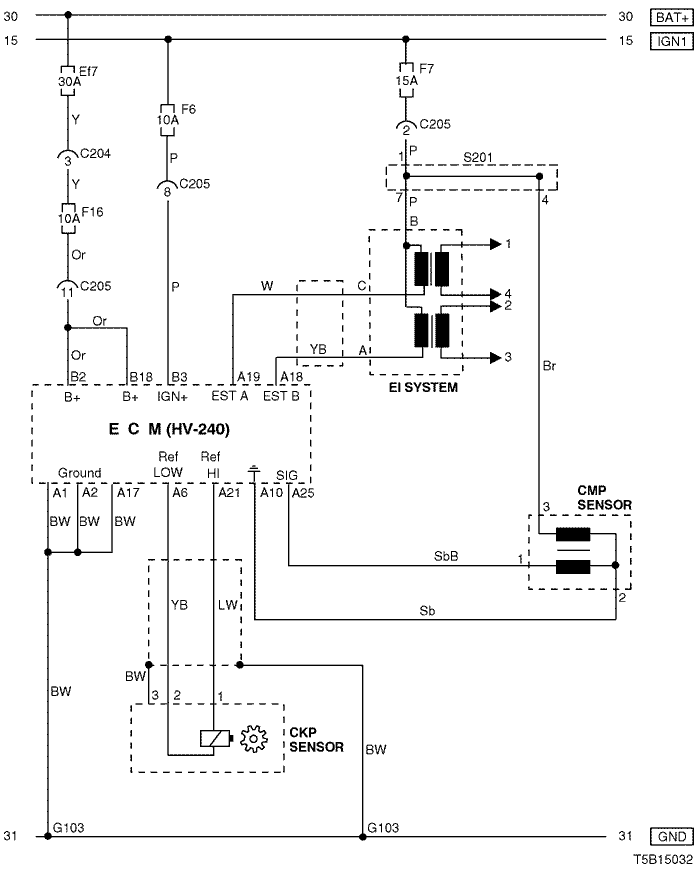

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM, CKP SENSOR & CMP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| G103 | Engine | Next to #4 Injector |

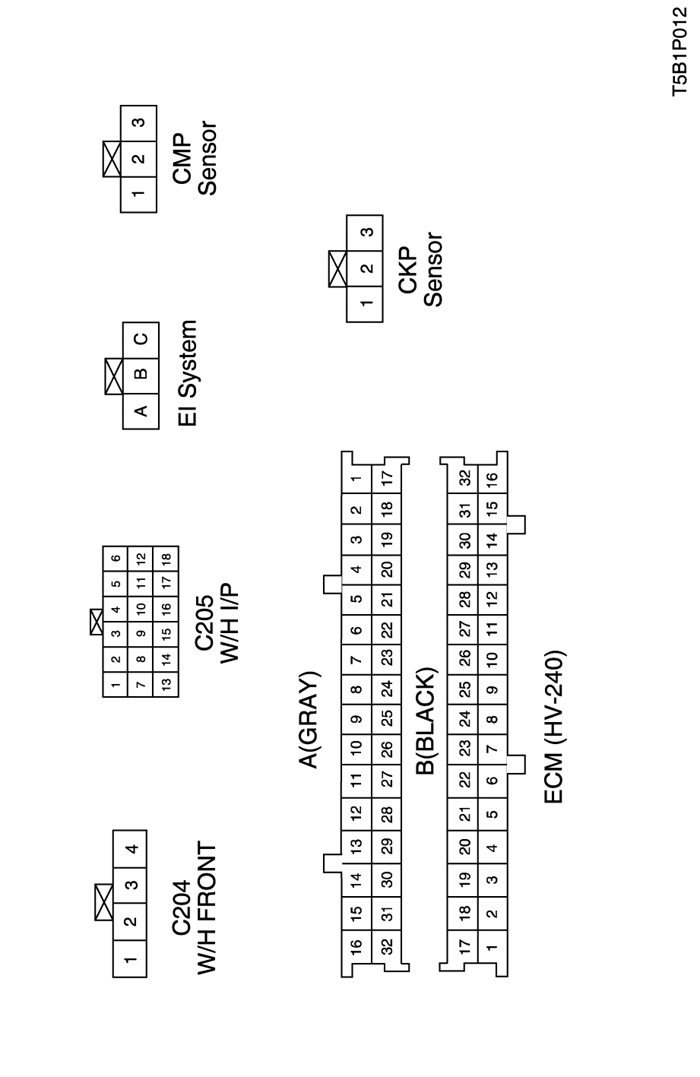

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201

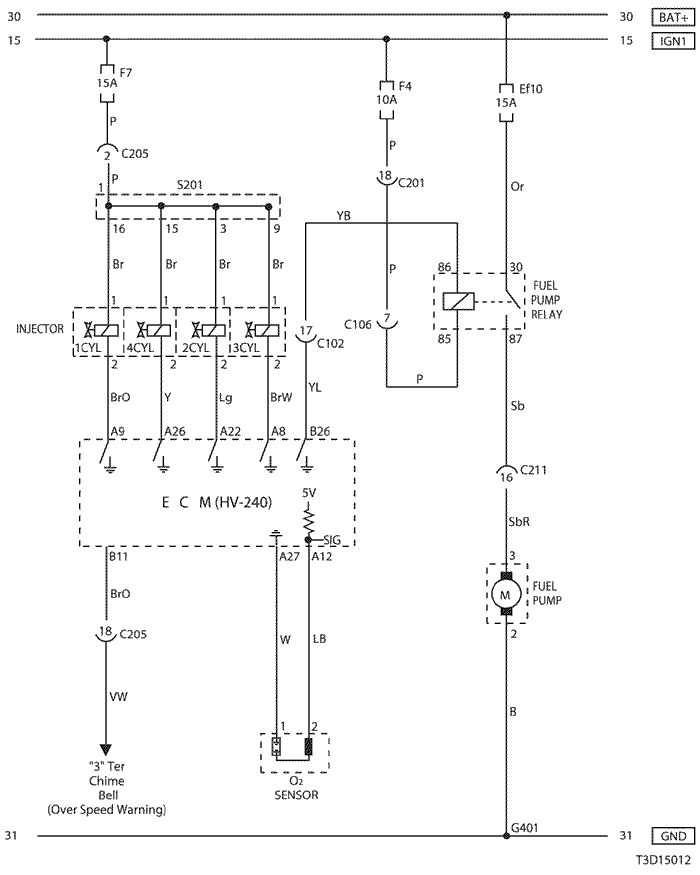

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (20 Pin, White) | Engine – Front | Engine Room Fuse Block |
| C106 (8 Pin, Black) | Front - Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| C211 (22 Pin, Yellow) | Front – Body | Under Left A Pillar |
| G401 | Body (H/B) | Left Tail Gate Panel |

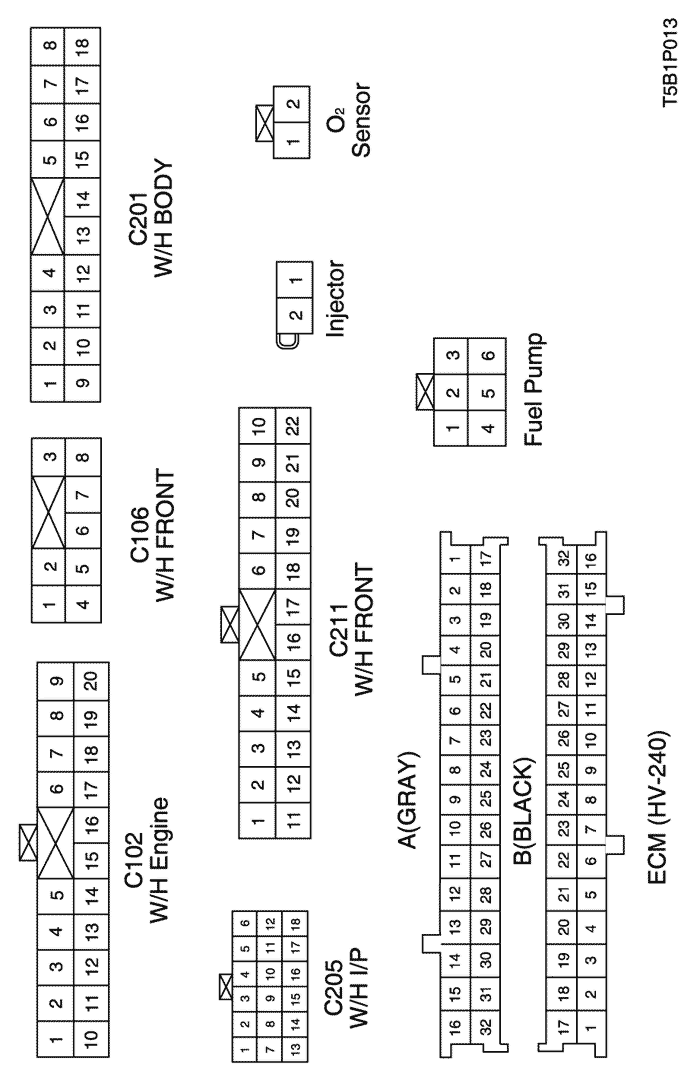

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201
3) IAC & SENSOR (MAP, ECT, TP, IAT, KNOCK, ACP) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201
4) EVAP CANISTER PURGE SOLENOID, CLUSTER & VSS CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (20 Pin, White) | Engine – Front | Engine Room Fuse Block |
| C202 (11 Pin, White) | TCM – IP | Behind I/P Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| G103 | Engine | Next to #4 Injector |
| G202 | IP | Behind Right Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201
S202
5) CLUSTER, FUEL PUMP & TCM CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (4 Pin, Black) | Engine – TCM | Behind Coolant Reservoir |
| C102 (20 Pin, White) | Engine – Front | Engine Room Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| C211 (22 Pin, Yellow) | Front – Body | Under Left A Pillar |
| G202 | IP | Behind Right Ashtray |

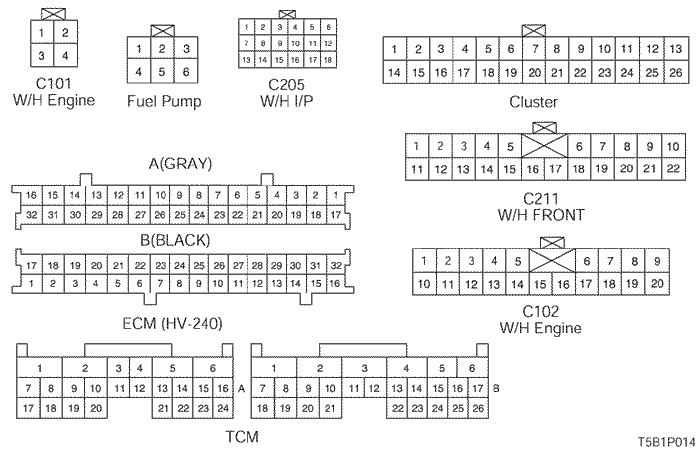

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202

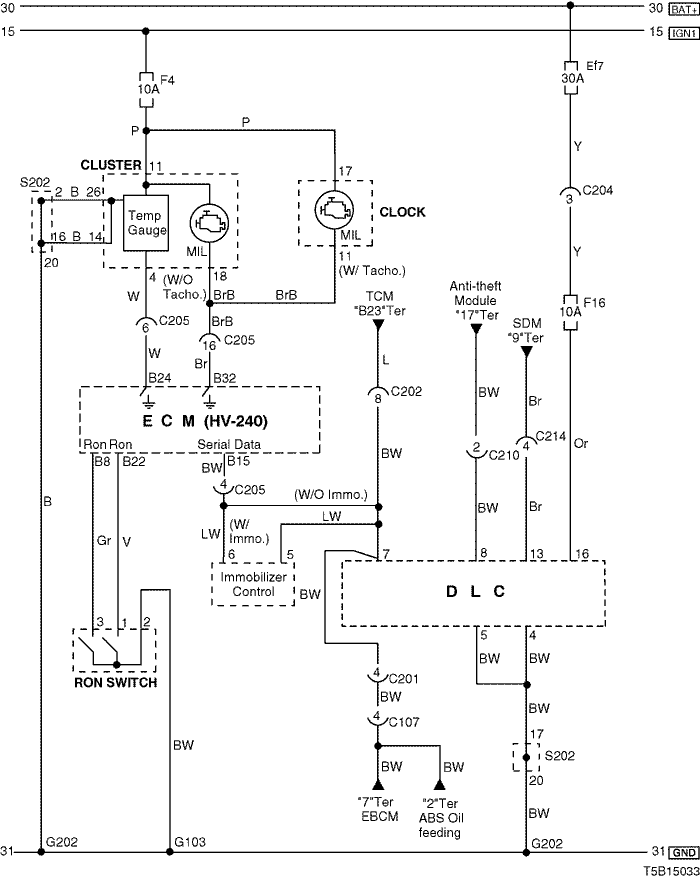

6) DLC, MIL LAMP & RON SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C202 (11 Pin, White) | TCM – IP | Behind I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| C210 (8 Pin, Green) | IP – Body | Under Left A Pillar |
| C214 (4 Pin, White) | Air Bag - IP | Behind Audio |
| G103 | Engine | Next to #4 Injector |
| G202 | IP | Behind Right Ashtray |

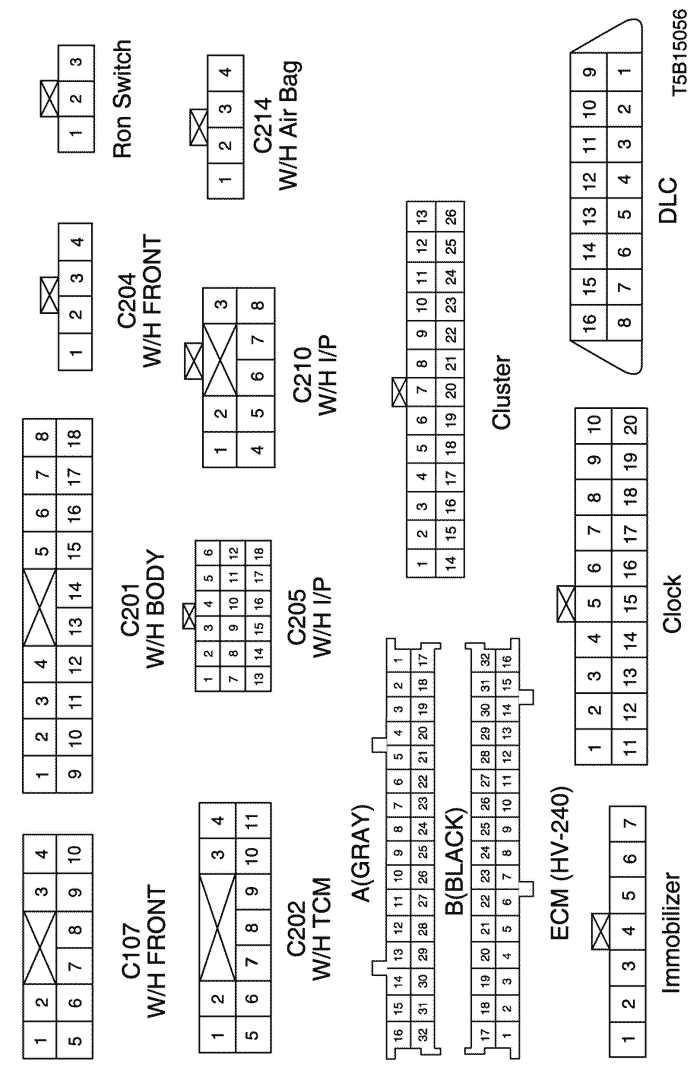

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
sm
