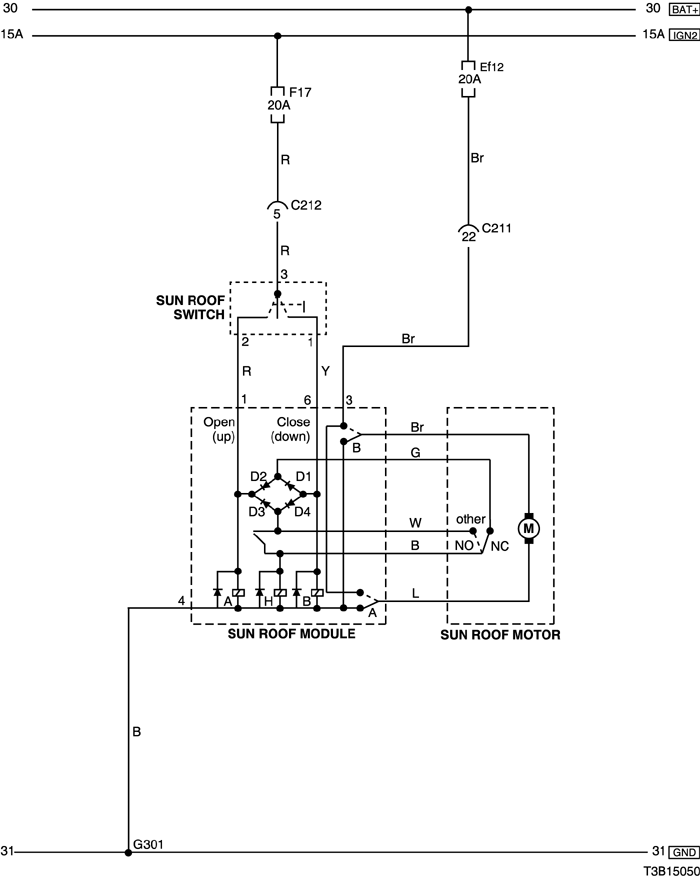

26. SUN ROOF CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

CONNECTOR NO
(PIN NO, COLOR)		CONNECTING WIRING HARNESSCONNECTOR POSITION
C211 (22 Pin, Yellow) Front – Body Under Left A Pillar
C212 (10 Pin, Black) IP – Body Under Left A Pillar
G301 Body Behind Co-Driver Left Kick Panel

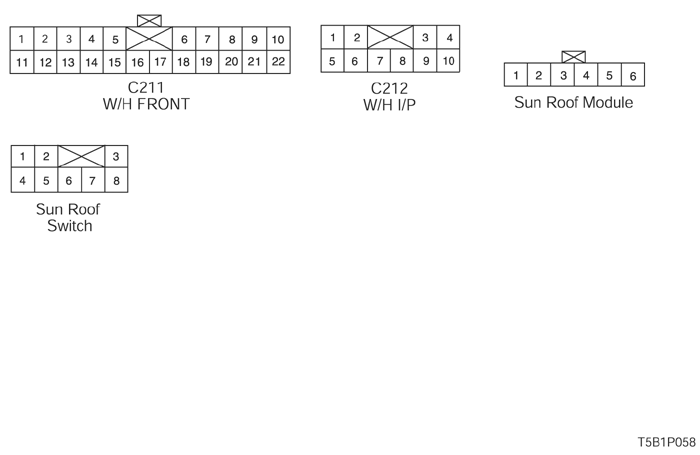

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
