23. AUDIO CIRCUIT

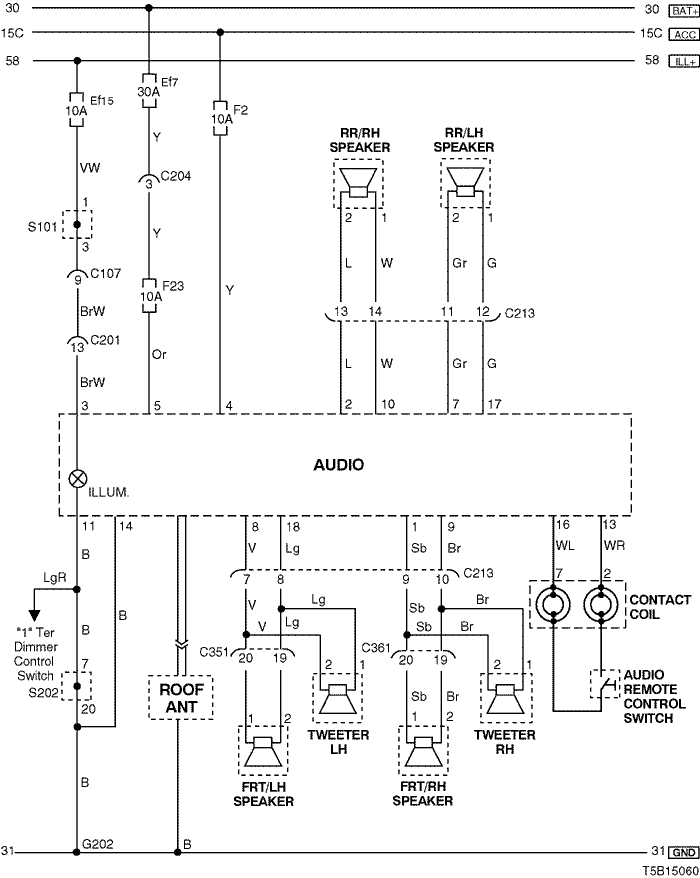

1) W/O RDS
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C213 (15 Pin, White) | IP – Body | Under Left A Pillar |
| C351 (29 Pin, White) | Body – Co-Driver Door | Under Left A Pillar |
| C361 (29 Pin, White) | Body - Driver Door | Under Right A Pillar |
| G202 | IP | Behind Right Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202

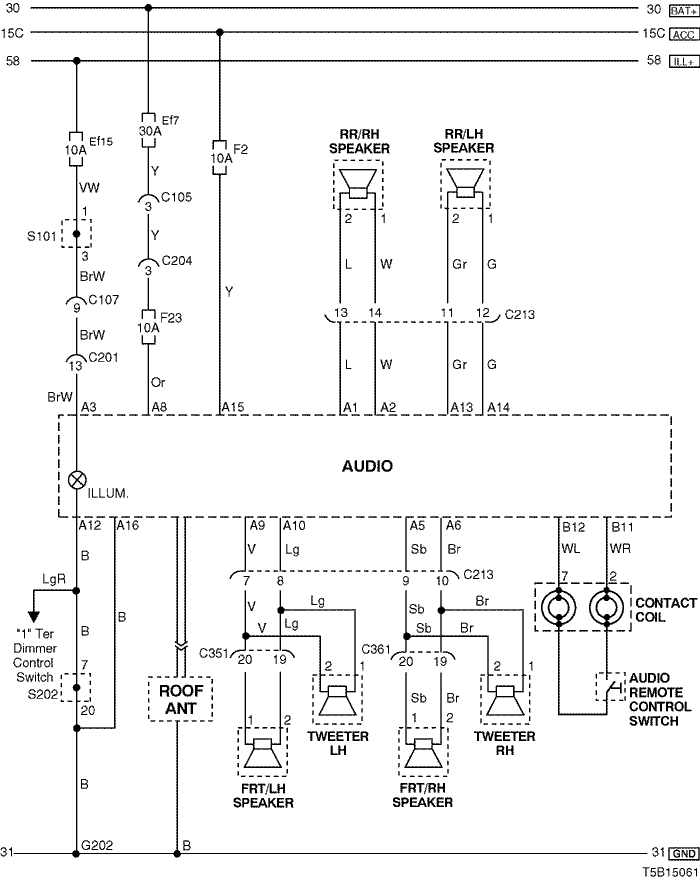

2) W/ RDS
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C213 (15 Pin, White) | IP – Body | Under Left A Pillar |
| C351 (29 Pin, White) | Body – Co-Driver Door | Under Left A Pillar |
| C361 (29 Pin, White) | Body - Driver Door | Under Right A Pillar |
| G202 | IP | Behind Right Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202
