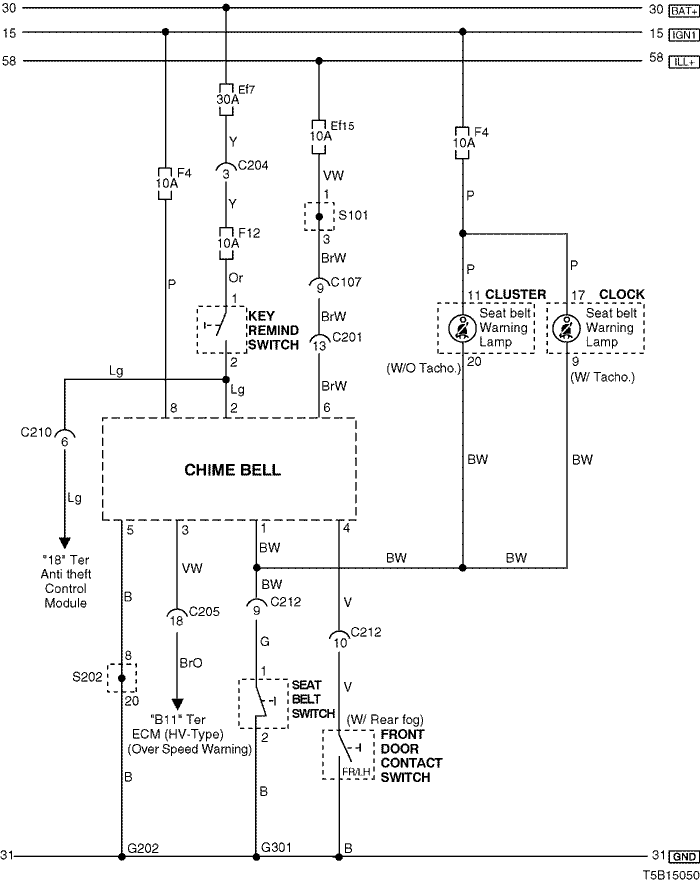

15. CHIME BELL, SEAT BELT & KEY REMIND SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C205 (18 Pin, Gray) | IP – Engine | Behind I/P Fuse Block |
| C210 (8 Pin, Green) | IP – Body | Under Left A Pillar |
| C212 (10 Pin, Black) | IP – Body | Under Left A Pillar |
| C214 (4 Pin, White) | Air Bag - IP | Behind Audio |
| G202 | IP | Behind Right Ashtray |
| G301 | Body | Behind Co-Driver Left Kick Panel |

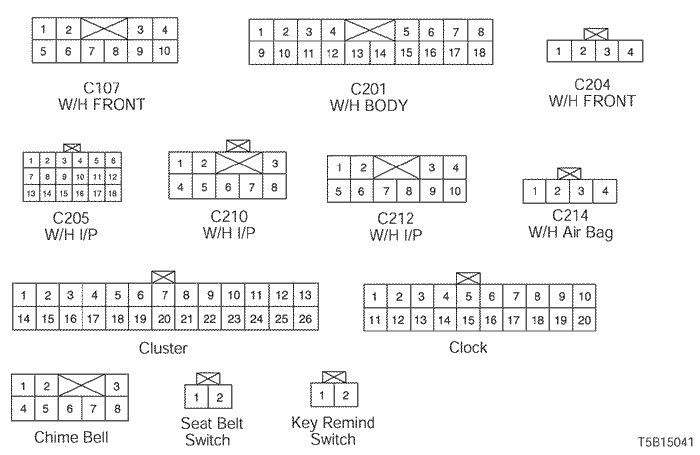

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202
sm
