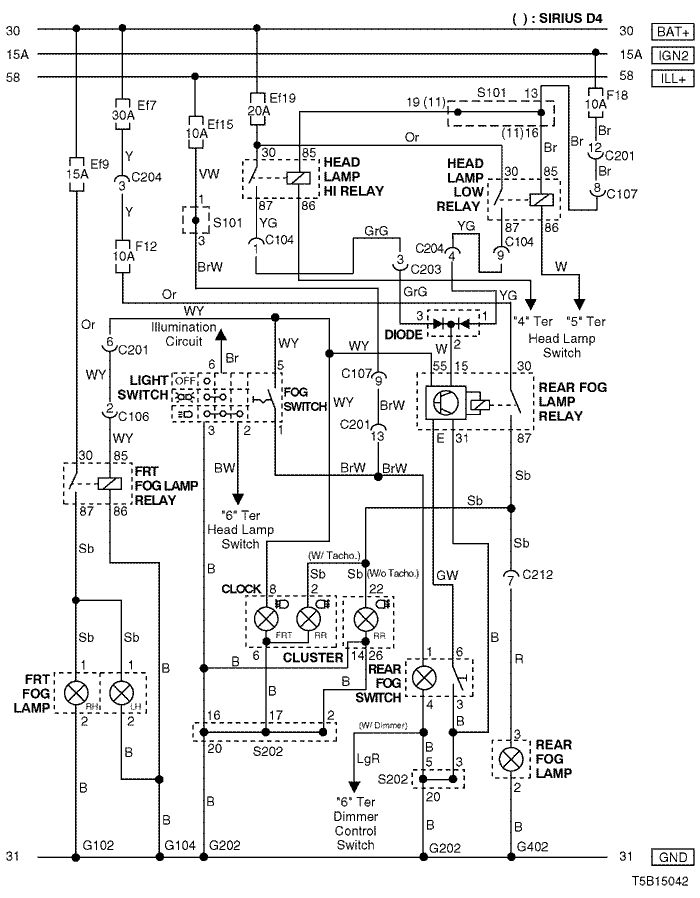

10. FRONT & REAR FOG LAMP CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C104 (15 Pin, White) | Front – Body | Behind Left A Pillar |
| C106 (8 Pin, Black) | Front – Body | Behind Left A Pillar |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C203 (14 Pin, Black) | Body – IP | Under I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C212 (10 Pin, Black) | IP – Body | Under Left A Pillar |
| C401 (8 Pin, White) | Body – Rear (N/B) | Behind Left Rear Wheel House |
| G102 | Front | Behind Left Head Lamp |
| G104 | Front | Behind Right Head Lamp |
| G202 | IP | Behind Right Ashtray |
| G402 | Rear (N/B) | Center Trunk Room Panel |

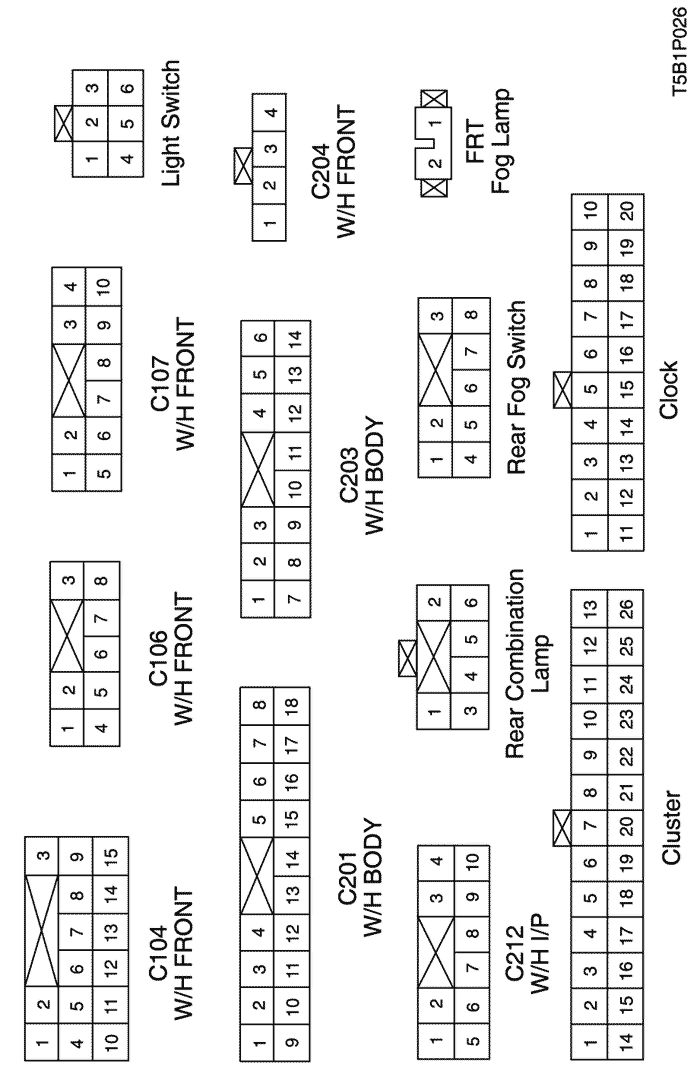

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202

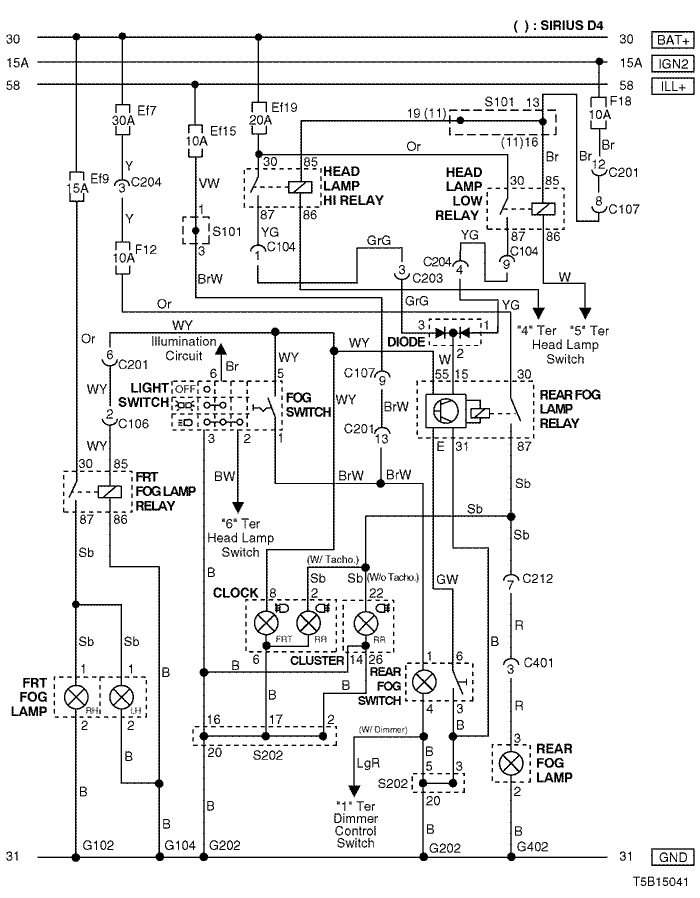

2) HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C104 (15 Pin, White) | Front – Body | Behind Left A Pillar |
| C106 (8 Pin, Black) | Front – Body | Behind Left A Pillar |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C203 (14 Pin, Black) | Body – IP | Under I/P Fuse Block |
| C204 (4 Pin, White) | Front – IP | Under I/P Fuse Block |
| C212 (10 Pin, Black) | IP – Body | Under Left A Pillar |
| G102 | Front | Behind Left Head Lamp |
| G104 | Front | Behind Right Head Lamp |
| G202 | IP | Behind Right Ashtray |
| G402 | Body (H/B) | Right Tail Gate Panel |

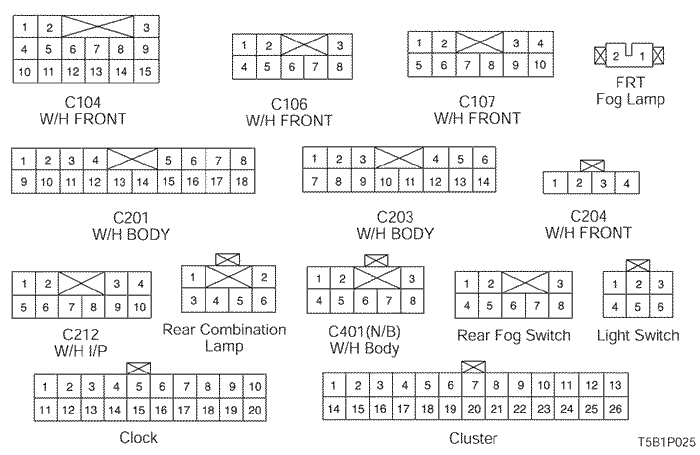

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202
